HARDWAREVEREISTEN

3.1. CE-MARKERING

De producent verstrekt een EU-conformiteitsverklaring voor zijn elektronisch product. De technische documentatie wordt als bijlage aan de aanvraag verstrekt. Het ontbreken van deze verklaring en/of de technische documentatie schort de behandeling van het certificatiedossier op.

De CE-keuring werd uitgevoerd conform de toepasselijke Europese regelgeving inzake productveiligheid, elektromagnetische compatibiliteit en radioapparatuur.
Het product werd beoordeeld aan de hand van de relevante richtlijnen, met name:

• Radio Equipment Directive (RED) 2014/53/EU
• Elektromagnetische Compatibiliteit (EMC) 2014/30/EU
• Laagspanningsrichtlijn (LVD) 2014/35/EU
• RoHS-richtlijn 2011/65/EU

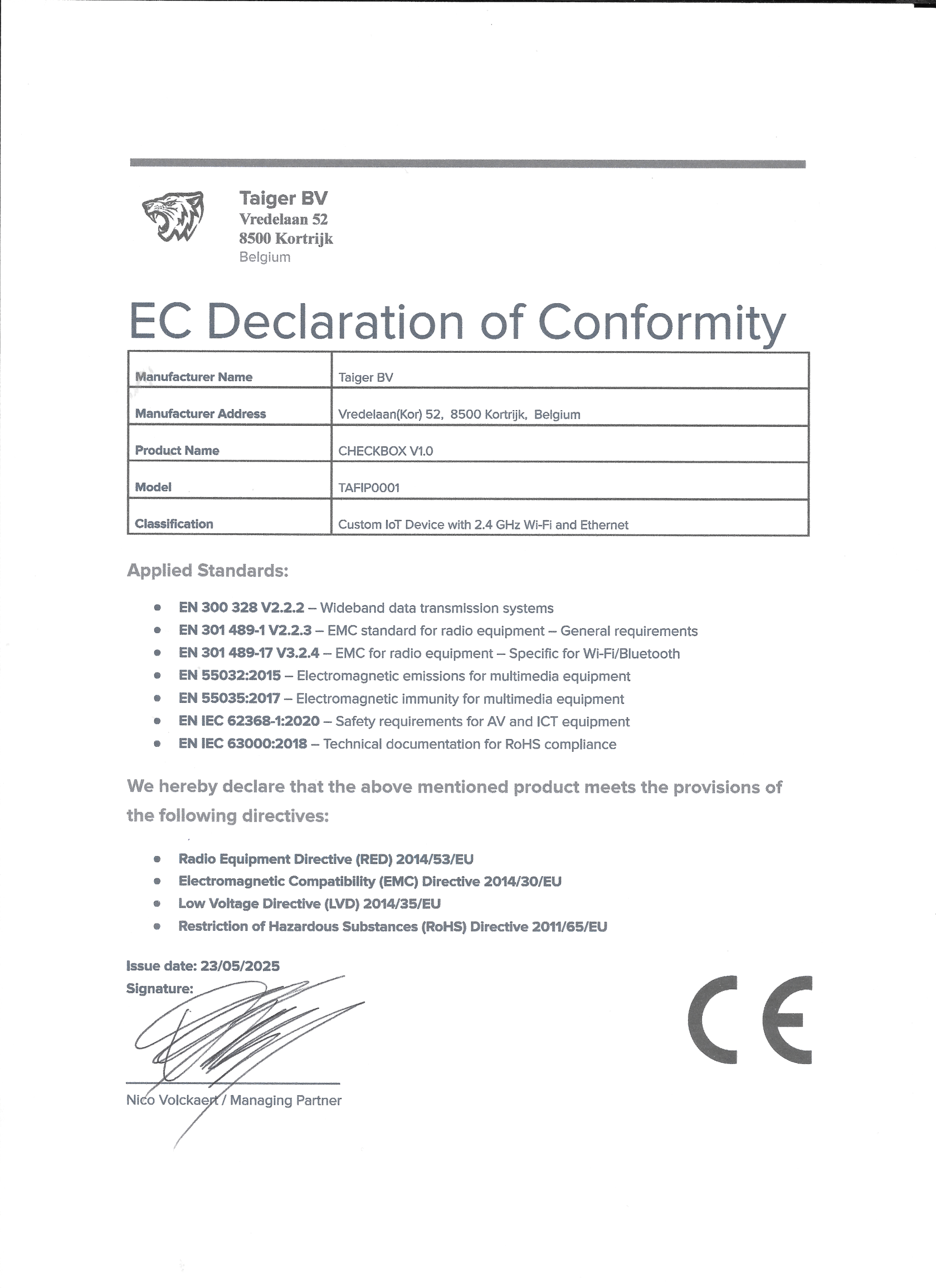

De resultaten van deze beoordeling zijn opgenomen in de EU-conformiteitsverklaring, opgesteld te Kortrijk, en terug te vinden in Bijlage A: Declaration of Conformity.

3.2. OPSLAG

De producent toont aan (inclusief documentatie producent) dat de FDM voldoet aan de vereisten van art. 76 en 81 van het MB, met name: De FDM heeft voldoende opslagcapaciteit om het besturingssysteem, de firmware, de tellers en een opslagcapaciteit van minimaal 2 GB aan transactiegegevens te bufferen.

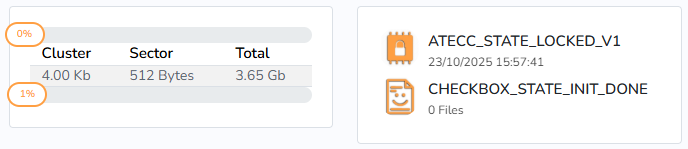

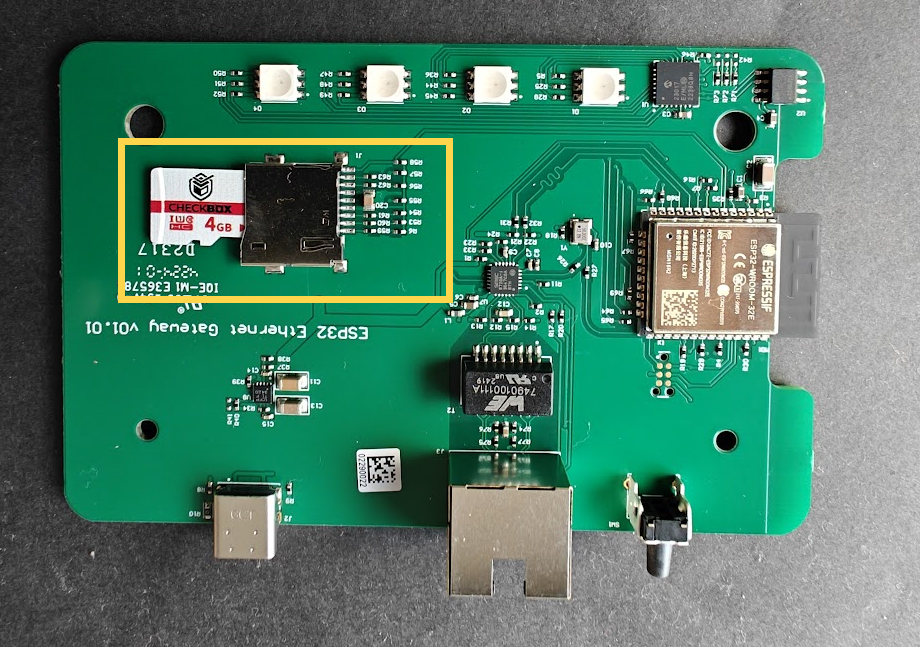

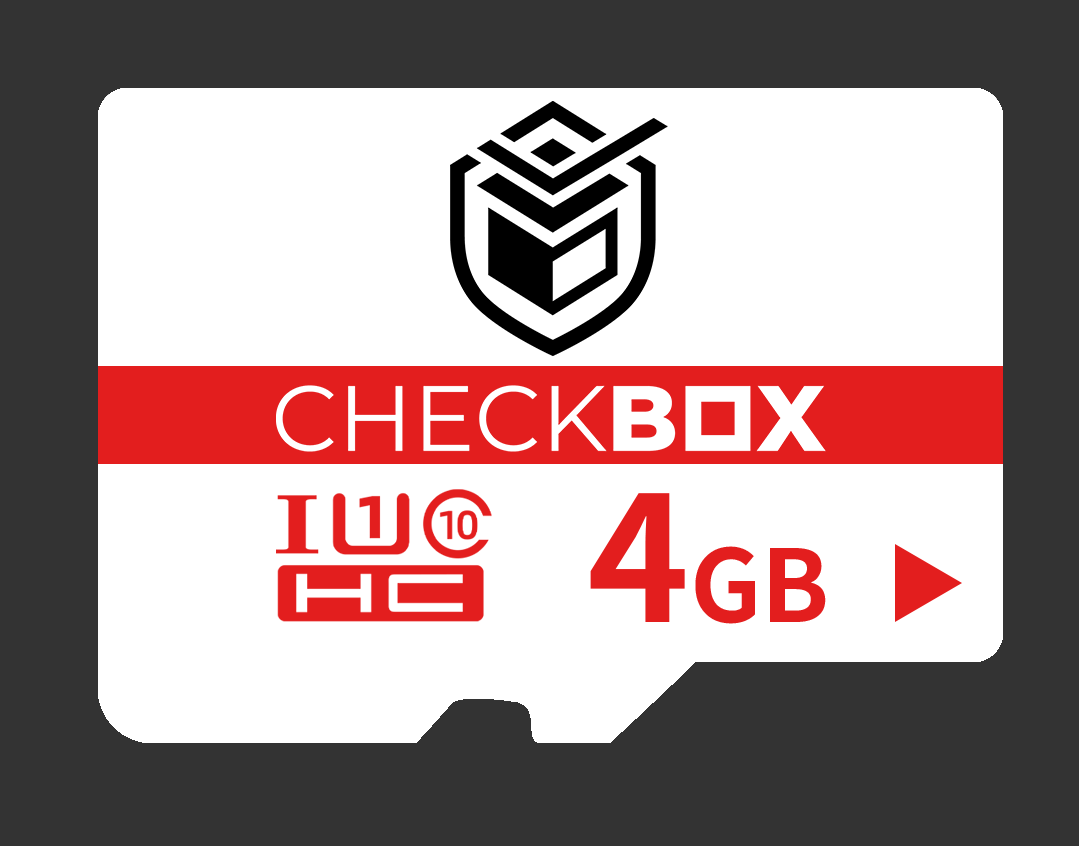

Elke Checkbox is uitgerust met een SD-kaart van 4 GB, wat ruim boven de vereiste capaciteit van 2 GB ligt.

Specificaties:

1. Write/erase-cycli: 500 – 3000; 2 TBW
2. Snelheidsklasse: Class 10

De SD-kaart is getest op zowel duurzaamheid als capaciteit. De datasheet is op aanvraag beschikbaar.

3.3. PROCESSOR

De producent toont aan (inclusief documentatie producent) dat de processor voldoet aan de vereisten van art. 73 van het MB, met name: ARM/CORTEX processor of gelijkwaardig, met voldoende GPIO’s om de gevraagde functionaliteit te ondersteunen, een werktemperatuur tussen 0 °C en 70 °C en een RTC. Dit wordt gestaafd met de gedetailleerde productbeschrijving van dit hardware element, afgeleverd door de producent ervan.

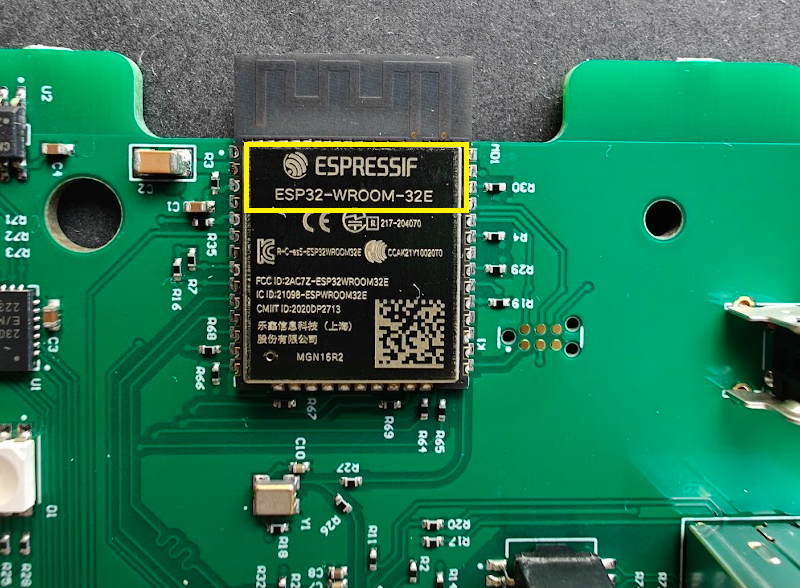

De in de Checkbox toegepaste processor is de ESP32-WROOM-32E van Espressif Systems. Deze module voldoet aan de vereisten van artikel 73 van het MB, zoals hieronder toegelicht:

• Processor: De ESP32-WROOM-32E is uitgerust met een dual-core Xtensa® 32-bit LX6 CPU. Deze dual-core Xtensa LX6-processor draait op 240 MHz, met een prestatiescore tot 600 DMIPS. Dit suggereert dat de ESP32 in theorie hogere prestaties kan leveren dan een typische Cortex-M4, vooral bij toepassingen die profiteren van hogere kloksnelheden en dual-core verwerking wat ook duidelijk gebleken is tijdens de implementatie.
• GPIO's: De module beschikt over 26 bruikbare GPIO-pinnen, voldoende om de gevraagde functionaliteit te ondersteunen.
• Werktemperatuurbereik: De ESP32-WROOM-32E ondersteunt een temperatuurbereik van -40 °C tot +85 °C, en voldoet daarmee ruimschoots aan de vereiste range van 0 °C tot 70 °C.
• RTC: De module bevat een geïntegreerde Real-Time Clock (RTC) die autonoom kan functioneren tijdens de deep-sleep modus.

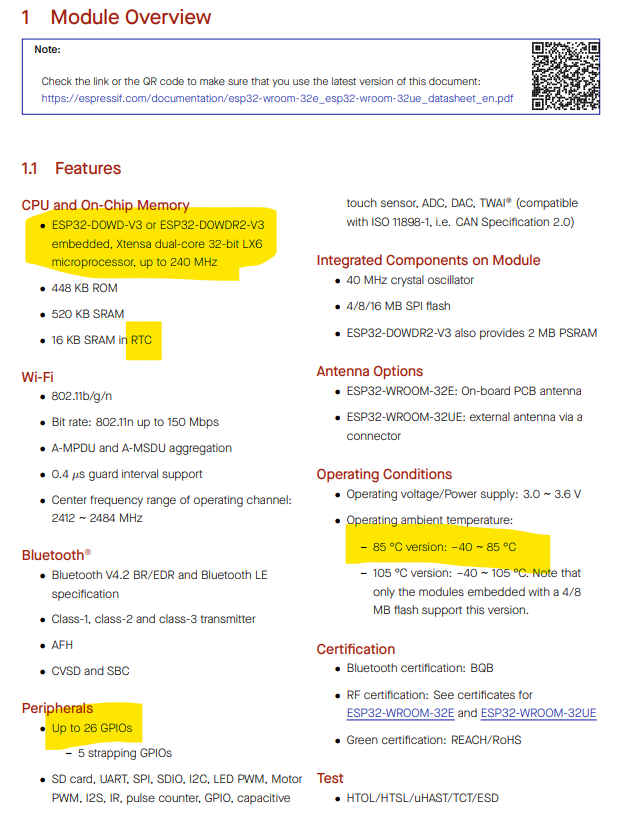

Een overzicht van de product specificaties van de ESP32-WROOM-32E, afgeleverd door Espressif, worden als bijlage toegevoegd ter staving.

3.4. CHIP MET SECURE ELEMENT

De producent toont aan (inclusief documentatie producent) dat de processor voldoet aan de vereisten van art. 77 van het MB, met name: secure element ATECC608B of gelijkwaardig, met minimaal volgende kenmerken: - niet-vluchtig geheugen, opslag van minimaal 2 tellers (telkens van minimaal 256 bit), certificaten, en gemengd read/write, read only of secret data - toegang tot de diverse secties van het geheugen is beschermd - conform de GDPR-regelgeving Dit secure element wordt gebruikt voor alle cryptografische operaties, de opslag van de certificaten en het genereren van de digitale handtekening (ECDSA, NIST P 256 curve). Dit wordt gestaafd met de gedetailleerde productbeschrijving van dit hardware element, afgeleverd door de producent ervan. Het voldoen aan deze voorwaarde is essentieel voor de certificatie.

De Checkbox maakt gebruik van het secure element ATECC608B van Microchip, waarmee voldaan wordt aan de vereisten gesteld in artikel 77 van het MB.

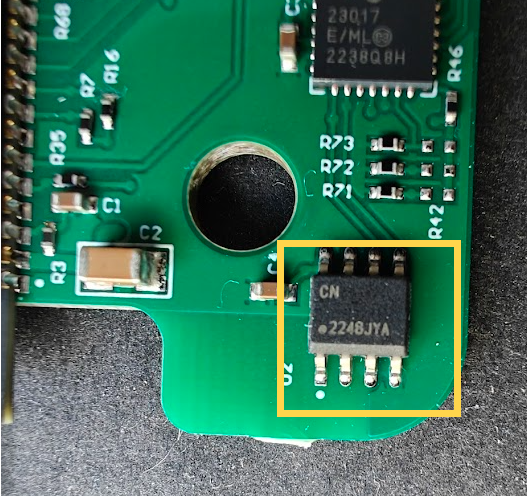

Package marking: Het component op de hardware is visueel te herkennen aan de markering 2248JYA. Zoals vermeld in de officiële documentatie van Microchip wordt deze markering echter opzettelijk vaag gehouden omwille van beveiligingsredenen:

"The part marking for all crypto devices is intentionally vague. The marking on the top of the package does not provide any information as to the actual device type or the manufacturer."
(Bron: Microchip documentation on package marking)

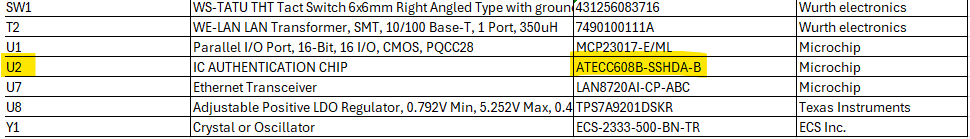

Type en referentie: Op de PCB is het component wel duidelijk met ref des U2 aangeduid. In de bijgevoegde screenshot van onze Bill of Materials (BOM) is te zien dat het hier gaat om de ATECC608B-SSHDA-B. Dit component werd aangekocht bij een geautoriseerde distributeur van Microchip (EBV) die dit kan bevestigen.

Gebruik binnen de toepassing:
Het secure element wordt in onze toepassing gebruikt voor:

• Alle cryptografische operaties
• Genereren van en opslag van de private key
• Opslag van de digitale certificaten
• Genereren van digitale handtekeningen volgens ECDSA, NIST P-256 curve
• Opslag van de Tellers

Deze functionaliteiten kunnen softwarematig worden aangetoond. Interacties met het secure element kunnen op verzoek worden aangetoond aan de hand van firmwarecode die gebruikmaken van de functies van de ATECC608B.

3.5. ANDERE HARDWAREVEREISTEN

De producent beschrijft gedetailleerd de andere gebruikte hardwarecomponenten en toont voor deze vermeld in de Titel II, hoofdstuk 2 – Technische eisen ten aanzien van de FDM Afdeling 2 van het MB aan dat deze hiermee compliant zijn. 7/12 Worden hier bedoeld: - de voeding: usb-c poort (+5V) en/of Power over Ethernet (PoE) - connectiviteit: ethernet LAN, gecertificeerde Wifi-module en optioneel een 4/5 G LTE-module De producent toont aan dat hij aan deze eisen voldoet. De producent toont aan dat de FDM voldoet aan de vereisten van art. 87 van het MB, met name aan de voorwaarden van de Richtlijn (EU) 2022/2555 van het Europees Parlement en de Raad van 14 december 2022 betreffende maatregelen voor een hoog gezamenlijk niveau van cyberbeveiliging in de Unie (https://eur-lex.europa.eu/eli/dir/2022/2555/oj?locale=nl). De producent beschrijft gedetailleerd hoe de FDM fysiek beveiligd is tegen manipulatie door onbevoegden

5VDC USB Voeding

• De FDM beschikt over een 5VDC voedingsingang via een standaard USB-C connector, aangeduid in geel op onderstaande figuur.

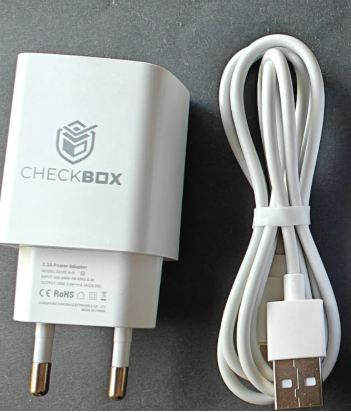

• De Checkbox wordt geleverd met een USB-C kabel en adapter, die als voedingseenheid functioneren.

Ethernet connectiviteit

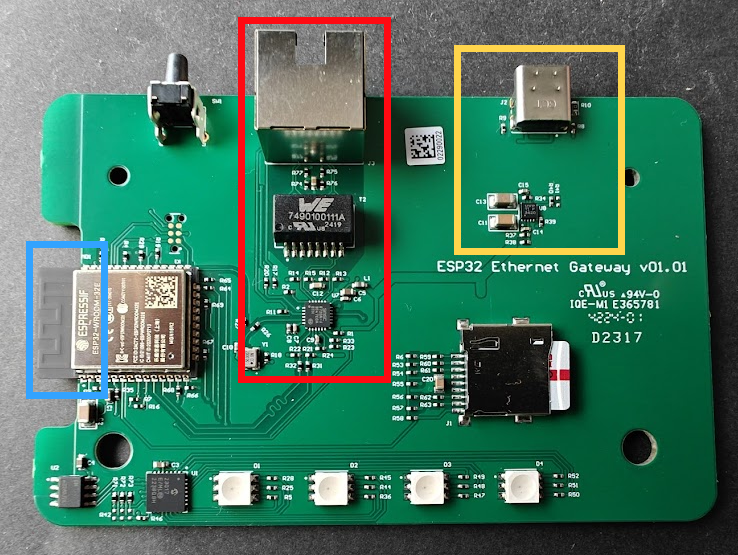

• In rood gemarkeerd op de figuur is de Ethernet PHY (LAN8720) zichtbaar, inclusief de benodigde magnetics en RJ45-connector.
• Deze componenten voorzien de FDM van een 10/100 Mbit Ethernet-verbinding, conform de eisen van het MB.

Wifi connectiviteit

• In blauw wordt de gecertificeerde WiFi-antenne weergegeven, onderdeel van de geïntegreerde ESP32-WROOM module.
• Deze module beschikt over alle vereiste EMC- en regionale certificeringen (FCC, CE, IC, etc.), beschikbaar via de officiële website van Espressif:
  👉 https://www.espressif.com/en/support/documents/certificates

De checkbox voldoet aan de bepalingen van Richtlijn (EU) 2022/2555). Deze conformiteit wordt gerealiseerd door de inzet van de volgende beveiligingscomponenten:

1. Secure Element – ATECC608B

De ATECC608B van Microchip biedt meerdere functies die rechtstreeks bijdragen aan de naleving van de richtlijn:

• Hardwarematige veilige opslag van cryptografische sleutels, certificaten en gevoelige data (secret, read-only, en mixed access).
• Ondersteuning voor ECDSA met NIST P-256, gebruikt voor digitale handtekeningen en authenticatie van berichten.
• Beveiligde key provisioning en secure boot-verificatie in combinatie met de hoofdprocessor.
• Bescherming tegen fysieke extractie en side-channel attacks, dankzij dedicated beveiligingslogica.
• Unieke identiteitsvoorziening (UID) voor elke chip, bruikbaar voor toestelidentificatie en toegangsbeheer.

2. Hoofdprocessor – ESP32-WROOM-32E (Espressif)

De ESP32-WROOM-32E ondersteunt verschillende beveiligingsmaatregelen op firmwareniveau die bijdragen aan NIS2-conformiteit:

• Secure Boot (v2): voorkomt dat ongeauthenticeerde firmware wordt uitgevoerd.
• Flash Encryption: zorgt ervoor dat firmware en data in opslag niet leesbaar zijn buiten het toestel.
• Hardwarematige geheugenbescherming (MMU) en toegangslimieten per taak.

3. Naleving van NIS2-vereisten

De combinatie van het secure element en de ESP32-processor voorziet in de volgende kernelementen van Richtlijn 2022/2555:

• Beheer van cryptografische sleutels en authenticatie
• Integriteit en authenticiteit van firmware (secure boot & signing)
• Gecontroleerde toegang tot systemen (secure identity provisioning)
• Veilige dataopslag en communicatie (encryptie in opslag en transit)
• Basis voor incidentdetectie en audit logs

3.6. GEZONDHEIDSINDICATOREN

De producent beschrijft uitgebreid de aanwezige gezondheidsindicatoren en hun werking. Zijn minimaal beschikbaar: batterijstatus (in voorkomend geval), communicatiestatus met een aangesloten POS – succesvolle communicatie, niet-succesvolle communicatie, bufferstatus ‘near full’ en “buffer full”, internet netwerk status – succesvolle of niet-succesvolle communicatie met de FODFIN-cloud.

LED-Statusindicatoren – Gezondheidsmonitoring van de FDM

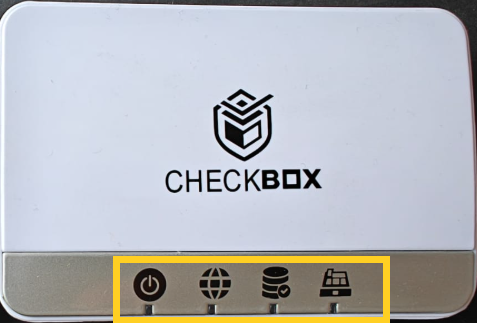

De FDM beschikt over vier afzonderlijke LED’s die elk een specifiek aspect van de systeemgezondheid of communicatie weergeven. De kleuren van de LED’s corresponderen met gedefinieerde toestanden Deze LED’s bieden visuele feedback over de werking van het toestel en zijn conform de vereisten inzake gezondheidsindicatoren zoals opgelegd door het MB.

Power LED – Systeemstatus

Geeft de algemene toestand van het toestel weer.

Status	Kleur	Betekenis
Uit (OFF)	Uit	Geen voeding
Initialisatie	Blauw	Systeem start op
OTA	Wit	Update bezig (Knipperend)
Shutdown	Yellow	Aflsluitproces bezig (Knipperend)
Gereed	Groen	Systeem volledig operationeel
Fout	Rood	Kritieke fout gedetecteerd

FODFIN LED – Communicatie met de FODFIN-cloud (Internetstatus)

Geeft de status aan van de verbinding met het internet en de FODFIN backend.

Status	Kleur	Betekenis
Uit (OFF)	Uit	Geen voeding
Initialisatie	Blauw	Netwerkconfiguratie in uitvoering / No LAN
LAN	Geel	Netwerkverbinding is LAN only
Waarschuwing	Geel	Intermitterende verbinding of fallback actief
Verbonden	Groen	WAN-verbinding / Succesvolle communicatie met de FODFIN-cloud
Fout	Rood	Niet-succesvolle FODFIN-cloud communicatie
Uitgeschakeld	Paars	Cloudcommunicatie handmatig uitgeschakeld
In uitvoering	Wit	FODFIN-cloud communicatie bezig of in verwerking

Buffer LED – Gegevensbufferstatus

Toont de vulgraad van de interne opslagbuffer voor gegevens

Status	Kleur	Betekenis
Uit (OFF)	Uit	Geen voeding
Initialisatie	Blauw	Opslagmodule wordt geïnitialiseerd
Voldoende ruimte	Groen	Buffer heeft voldoende vrije capaciteit
Wordt vol	Geel	Buffercapaciteit nadert limiet (‘near full’)
Vol of fout	Rood	Buffer is vol of schrijffout opgetreden
In uitvoering	Wit	Niet-verzonden event markeren als verzonden

POS-Communicatie LED – Status communicatie met aangesloten kassasysteem

Geeft real-time feedback over de communicatie tussen de FDM en het gekoppelde POS-systeem.

Status	Kleur	Betekenis
Initialisatie	Blauw	De POS interface wordt geïnitialiseerd
Gereed	Groen*	De FDM is klaar voor gebruik
FDM error	Rood*	FDM error is actief
FDM warning	Geel*	FDM warning is actief
In uitvoering	Wit	POS query in verwerking

Status	Kleur	Betekenis
Verbonden en actief	Groen*	Succesvolle bidirectionele communicatie
Communicatieproblemen	Rood*	POS onbereikbaar, fout in berichtuitwisseling
Niet geconfigureerd of standby	Geel*	POS nog niet verbonden of wachtend op handshake

*Kleuren voor deze LED zijn momenteel TBD (to be defined) en worden afgestemd op de definitieve firmware. De structuur is echter voorzien en kan softwarematig worden aangetoond.

3.7. LABELS – SERIENUMMERS

Back Office Module

Beveiliging van de Backoffice Module

GraphQl

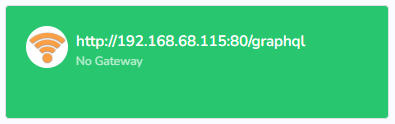

Wanneer een directe verbinding opgezet wordt om via de GraphQl toegang te verkrijgen is er een token nodig die in de http request header moet staan, De token is verschillend per Checkbox unit.

Authorization: Bearer <token>

De token wordt vervolgens vergangen door de bijgeleverde token.

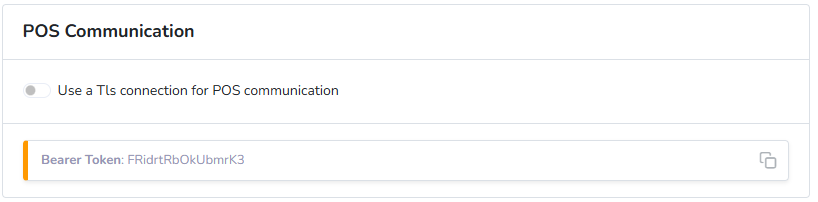

• Op de sticker van de Checkbox kan men deze token terugvinden

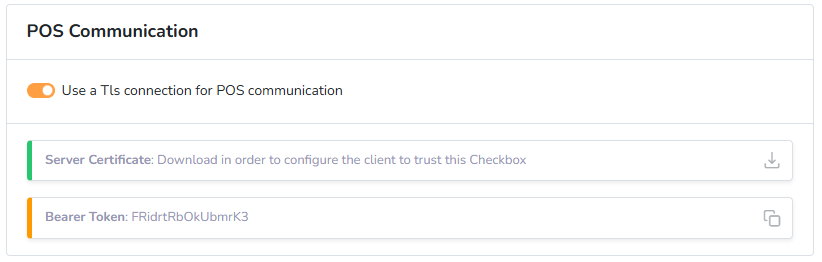

• Op de backend tools kan deze token ook worden teruggevonden onder settings bij het desbetreffende device


Deze token is uniek en levenslang per Checkbox, Wordt deze toch gelekt, dan kan Taiger deze token updaten naar een nieuwe.

Backoffice Tools

Deze omgeving wordt beveiligd door een aparte Identity Server via een gekend protocol OpenId.
Bij het inloggen wordt een Authorisation token gegenereerd die heel beperkt geldig is. Wanneer een aanroep wordt gedaan naar de backend wordt deze token telkens meegegeven, wanneer de token verloopt bezit de frontend een automatisch mechanisme om via een Refresh token een nieuwe Authorisation token te verkrijgen.

Wanneer iemand een Authorisation token zou kunnen bemachtigen, dan nog is dit maar een heel beperkte tijd 1 minuut ongeveer waarbinnen deze geldig is. Zodoende dat dit helemaal onbruikbaar wordt.

Raadpleging Tellers

GraphQl

Via de GraphQl endpoint is er een query waarmee je deze informatie kunt opvragen,

query AdminInfos {
    adminInfos {
        counters {
            total
            n
            f
            s
            p
            c
            i
            r
            t
            rawCounter
        }
    }
}

The answer you get this way is

{
    "data": {
        "adminInfos": {
            "counters": {
                "total": 101,
                "n": 70,
                "f": 10,
                "s": 2,
                "p": 3,
                "c": 1,
                "i": 4,
                "r": 5,
                "t": 6,
                "rawCounter": 1
            }
        }
    }
}

Backoffice Tools

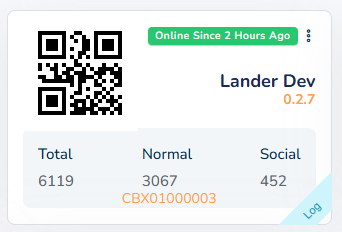

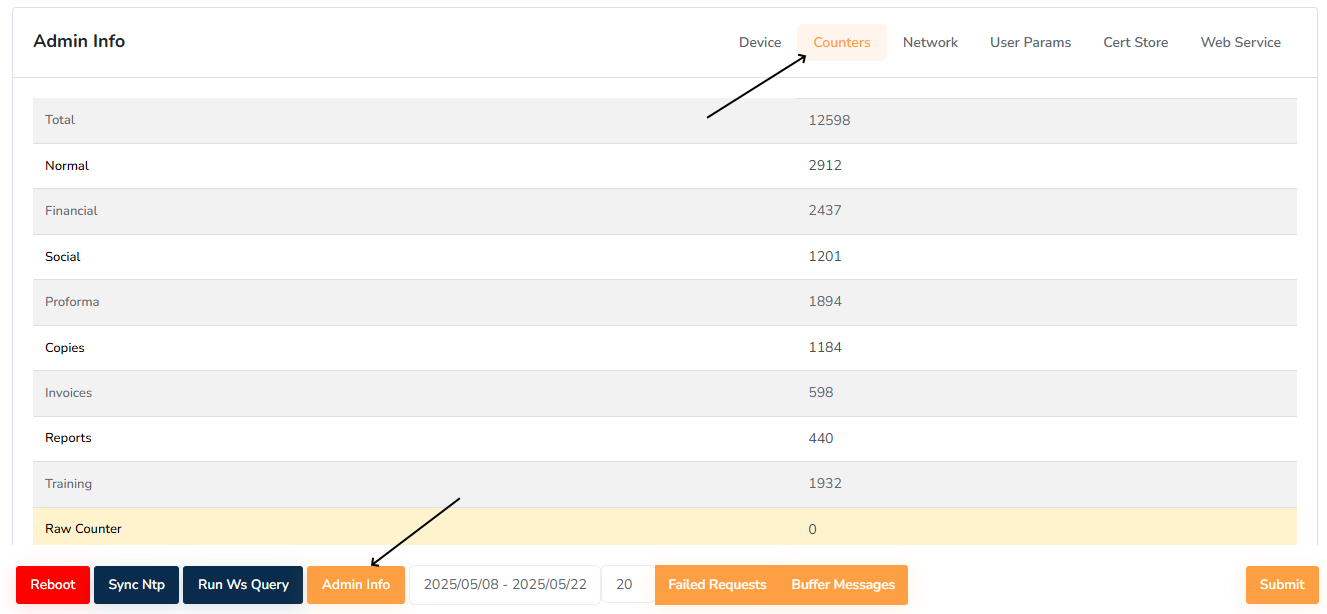

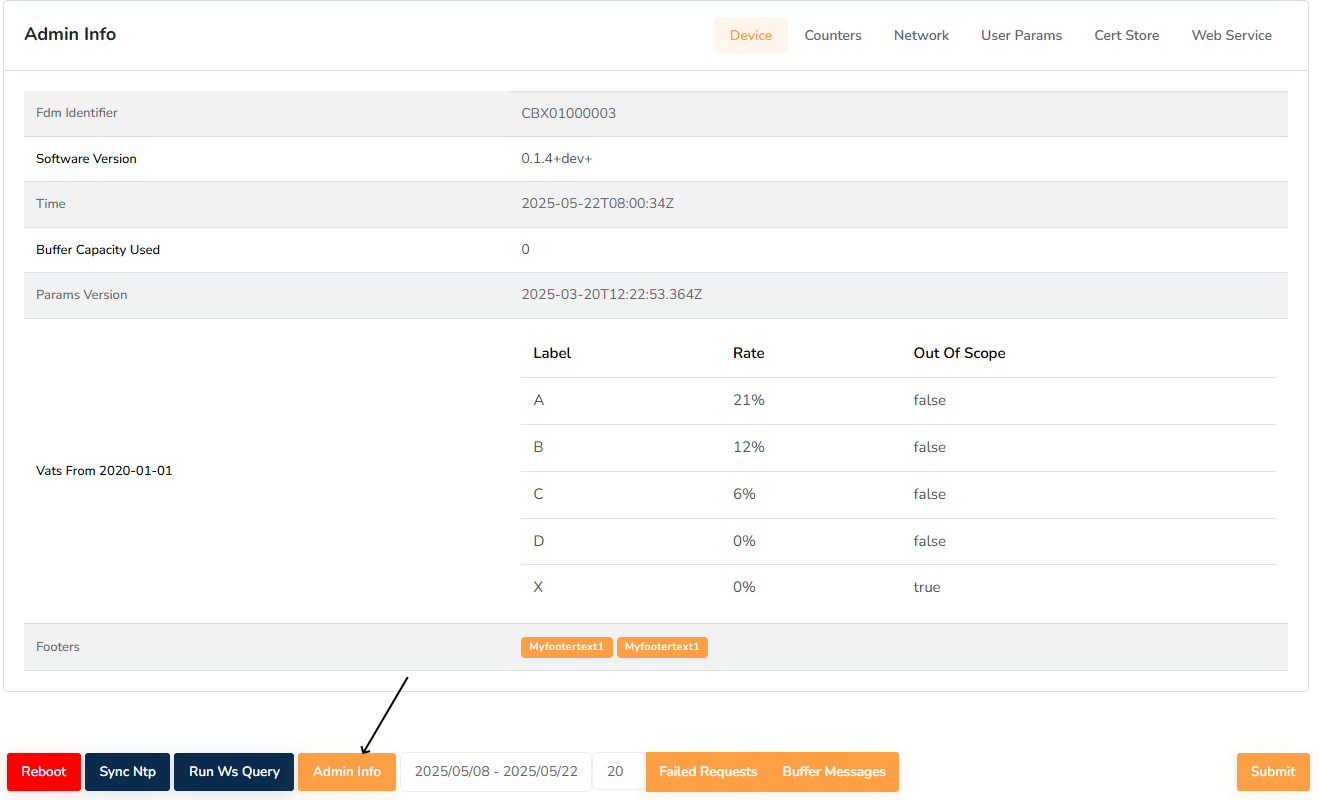

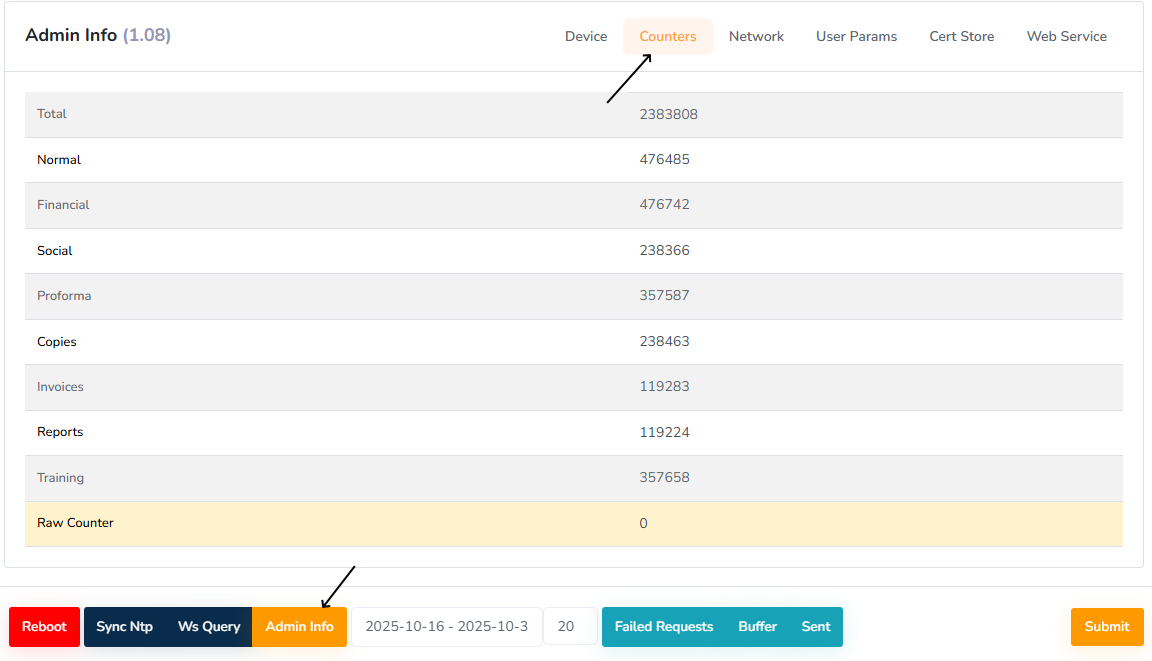

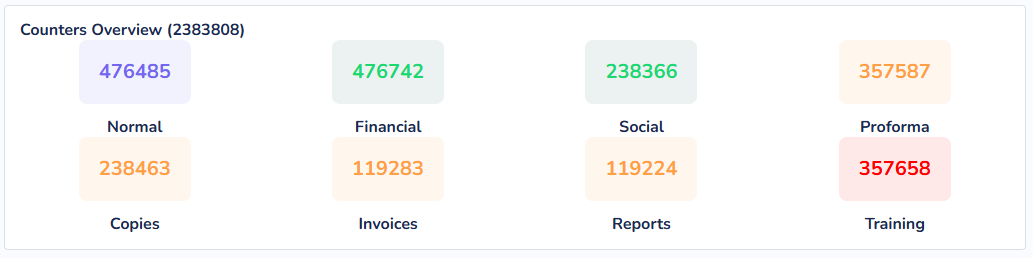

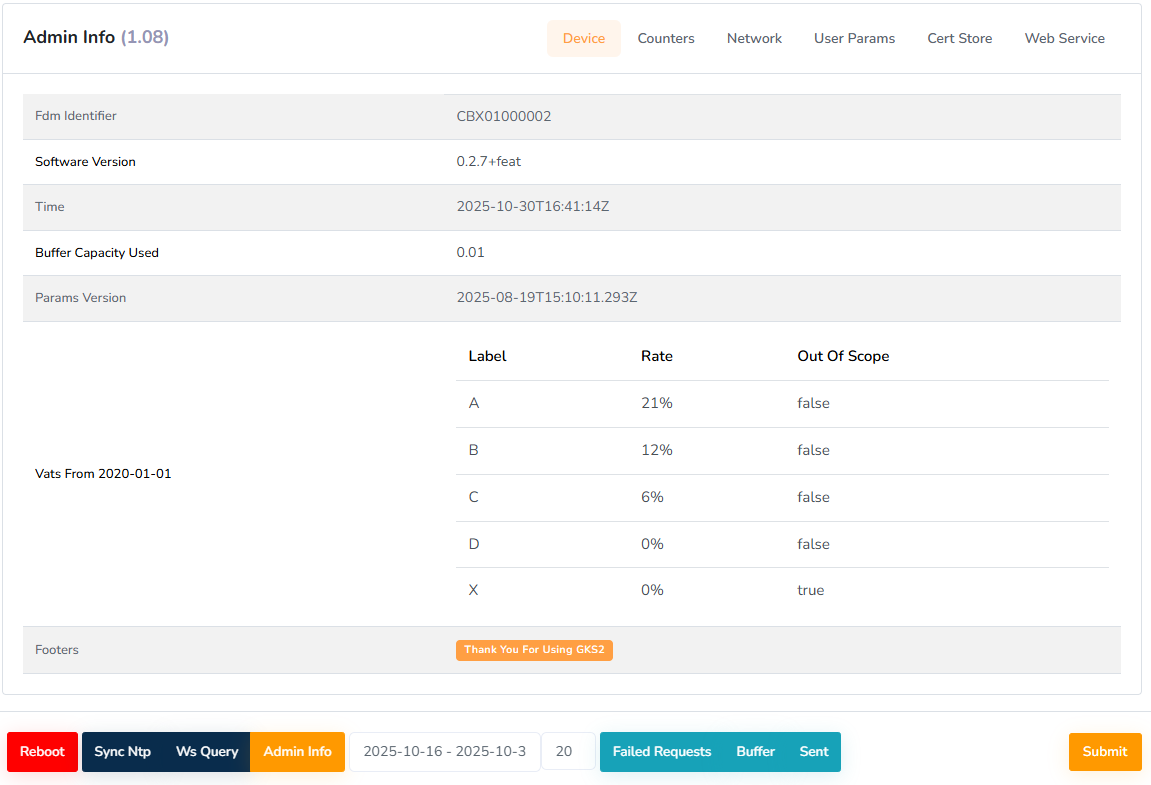

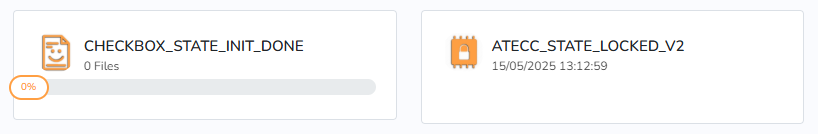

Bij de details van de Checkbox zie je een overzicht van de tellers.

Of anderzijds bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens Admin Info kunt opvragen, op deze manier vraag je op dat eigenste moment de waarden live uit de Checkbox op.

Raadpleging Buffer historiek

GraphQl

De buffer historiek wordt bepaald door het percentage van de gebruikte buffer, de laatste succesvolle transactie en het aantal keer dat er opnieuw geprobeerd werd door de Checkbox.

Dit kan via volgende Query opgevraagd worden

query AdminInfos {
    adminInfos {
        device {
            bufferCapacityUsed
        }
        userParams {
            fdmLastSuccessfulTrans
            retryCount
        }
    }
}

Met als antwoord

{
    "data": {
        "adminInfos": {
            "device": {
                "bufferCapacityUsed": 17.5
            },
            "userParams": {
                "fdmLastSuccessfulTrans": "2024-01-04",
                "retryCount": 5
            }
        }
    }
}

Backoffice Tools

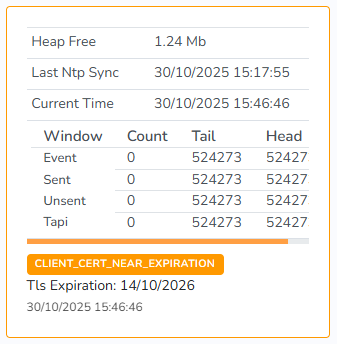

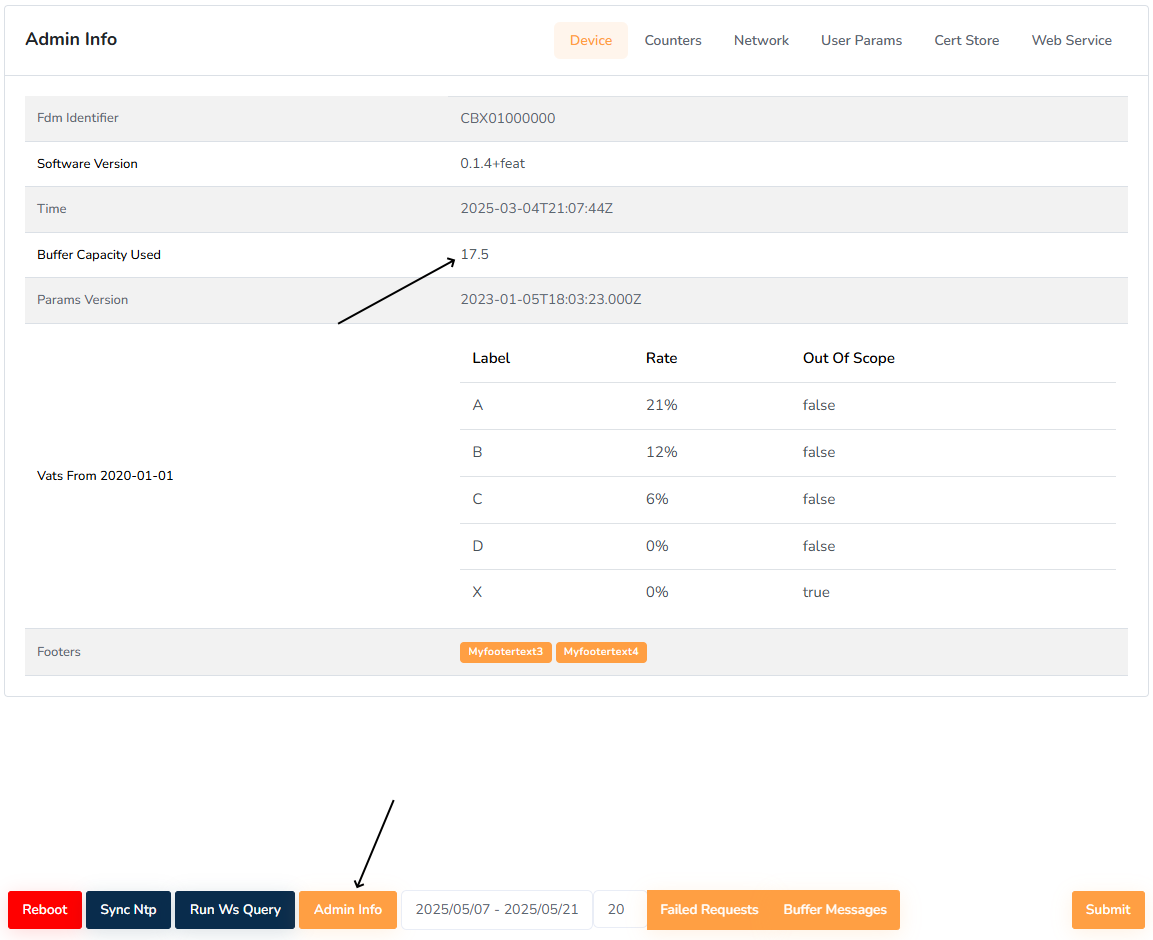

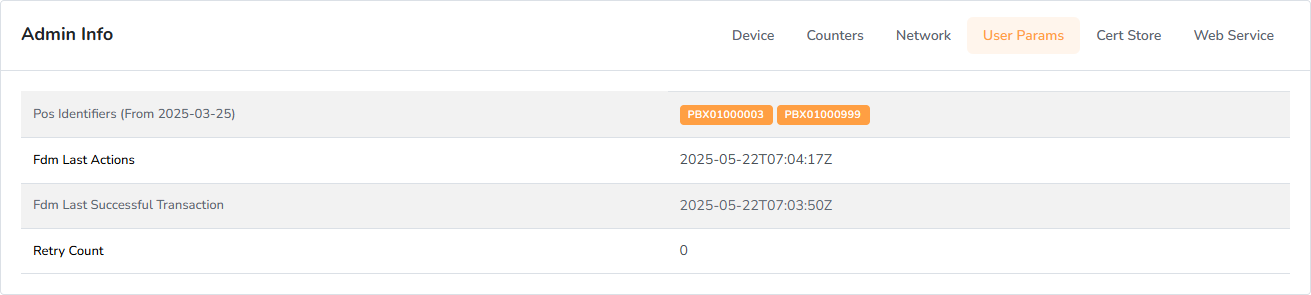

Anderzijds bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens Admin Info kunt opvragen.

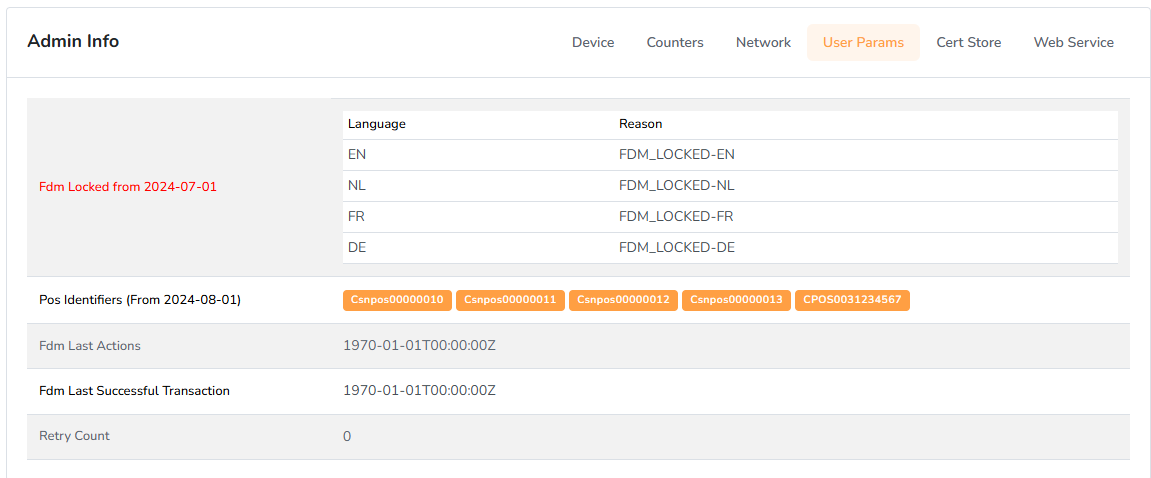

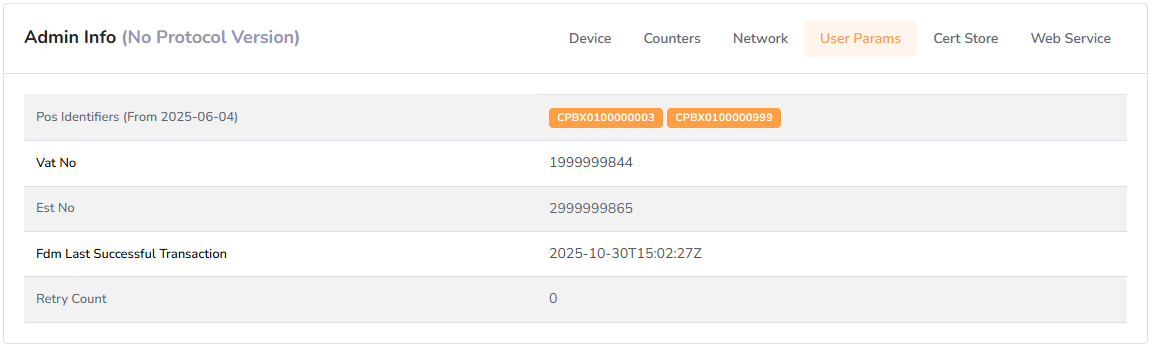

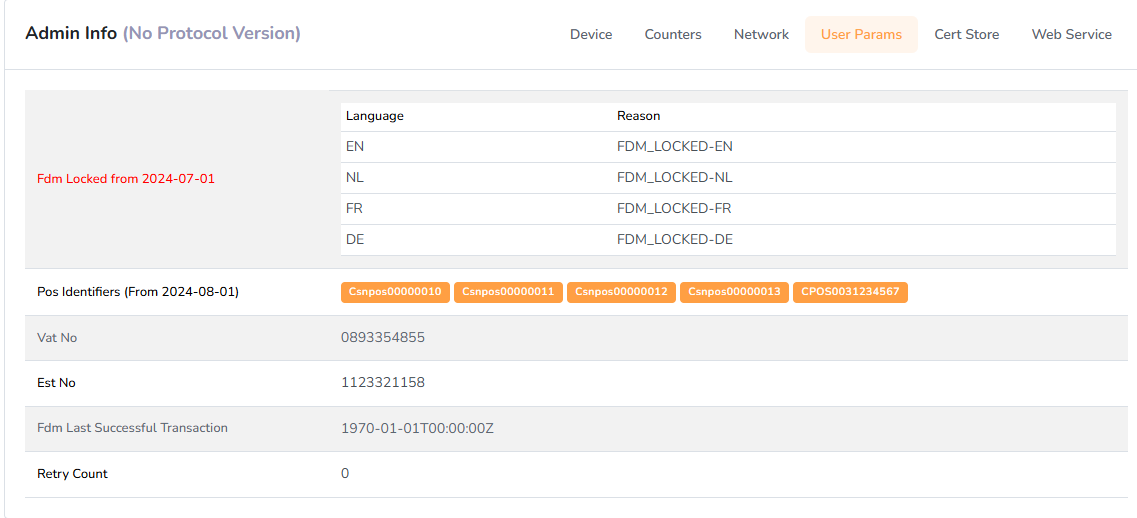

En bij het tabblad User Params kun je het vervolg terugvinden

Raadpleging Transacties in de Buffer

GraphQl

Backoffice Tools

Om de transacties in de buffer op te vragen die nog niet verstuurd zijn geraakt kun je als volgt te werk gaan, Je kiest eerst de periode van de berichten die je wenst op te vragen, Vervolgens het aantal en daarna kun je met de knop Buffer Messages de lijst gaan opvragen.

Raadpleging Failed Requests

GraphQl

De query om de failed requests op te halen kun je hieronder vinden. Deze aanvaardt ook een filter om de berichten te gaan filteren

• Het maximum aantal berichten die je wenst te retourneren
• De datums van en tot die specifiëren waartussen de failed requests moeten liggen.

query FailedRequests {
    failedRequests(
        selectRange: { maxItemCount: 20, from: "2025-05-01", to: "2025-05-22" }
    ) {
        timestamp
        requestMethod
        requestUri
        requestHeaders
        requestBody
        replyStatusCode
        replyHeaders
        replyBody
        errorMessage
    }
}

Met als mogelijk antwoord

{
    "data": {
        "failedRequests": [
            {
                "timestamp": "2025-02-17T21:32:32.000Z",
                "requestMethod": "POST",
                "requestUri": "https://acc.gks2-0.be/public/init",
                "requestHeaders": "YWNjZXB0OiBhcHBsaWNhdGlvbi9qc29uCkNvbnRlbnQtVHlwZTogYXBwbGljYXRpb24vanNvbgpEYXRlOiBNb24sIDE3IEZlYiAyMDI1IDIxOjMyOjMyIEdNVApBdXRob3JpemF0aW9uOiBCZWFyZXIgZXlKaGJHY2lPaUpGVXpJMU5pSXNJblI1Y0NJNklrcFhWQ0o5LmV5SnpkV0lpT2lKcGJtbDBJaXdpYVdGMElqb3hOek01T0RJM09UVXlMQ0ptWkcxSlpDSTZJa05DV0RBeE1EQXdNREF4SW4wLmFhWUxKZlJkdlFOWHFNbzFXLTVzem4zNUN0OVdiaEJtdFQxNElEdWhJMVUwU0gwNjZ2T2lsYlBQdDhPUVRUdEszOFBHUlRlV0REVE5oSDVUVWY4a2JnCg==",
                "requestBody": null,
                "replyStatusCode": 401,
                "replyHeaders": "RGF0ZTpNb24sIDE3IEZlYiAyMDI1IDIxOjMyOjMzIEdNVABDb250ZW50LVR5cGU6YXBwbGljYXRpb24vanNvbgBDb250ZW50LUxlbmd0aDo2OABDb25uZWN0aW9uOmtlZXAtYWxpdmUAeC1hbXpuLVJlcXVlc3RJZDo0N2I0YzNkNC1iMDQwLTQzYWMtOWIzMC1kZGQxMTkyNjIwNGEAeC1hbXotYXBpZ3ctaWQ6R0plbHhHNkFsaUFFUE5BPQBYLUFtem4tVHJhY2UtSWQ6Um9vdD0xLTY3YjNhYWYxLTc2NzBmZjZhMTcyYWExNjU2ZTlmZDg0MztQYXJlbnQ9MTI1YTUyNGQ0Nzc3ZjliODtTYW1wbGVkPTA7TGluZWFnZT0xOmNkN2UyMTNmOjAA",
                "replyBody": "eyJtZXNzYWdlIjoiTm90IHZhbGlkIHRva2VuIEVycm9yOiBUb2tlbiBzaWduYXR1cmUgdmVyaWZ5IGZhaWxlZCEgIn0=",
                "errorMessage": "error"
            }
        ]
    }
}

Backoffice Tools

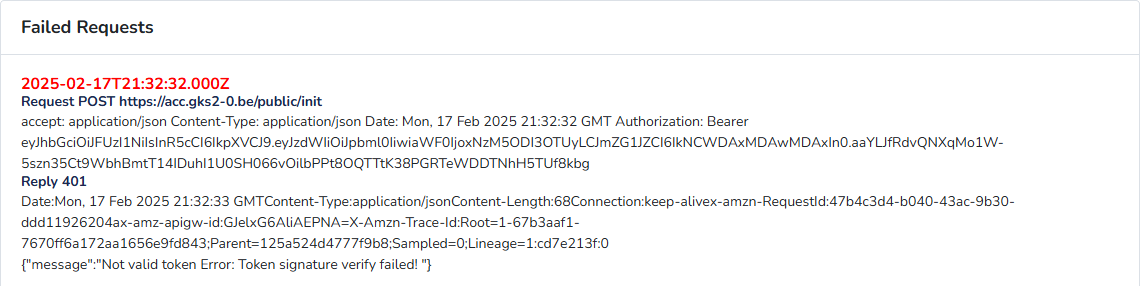

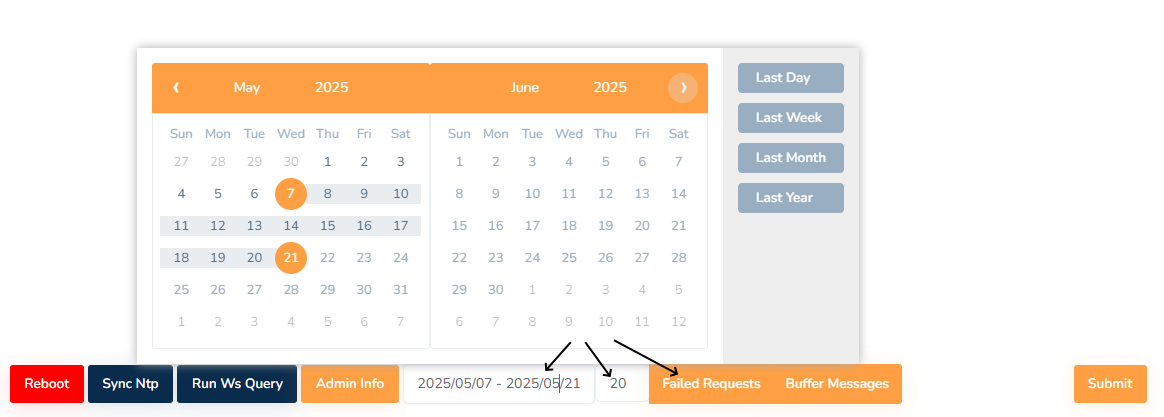

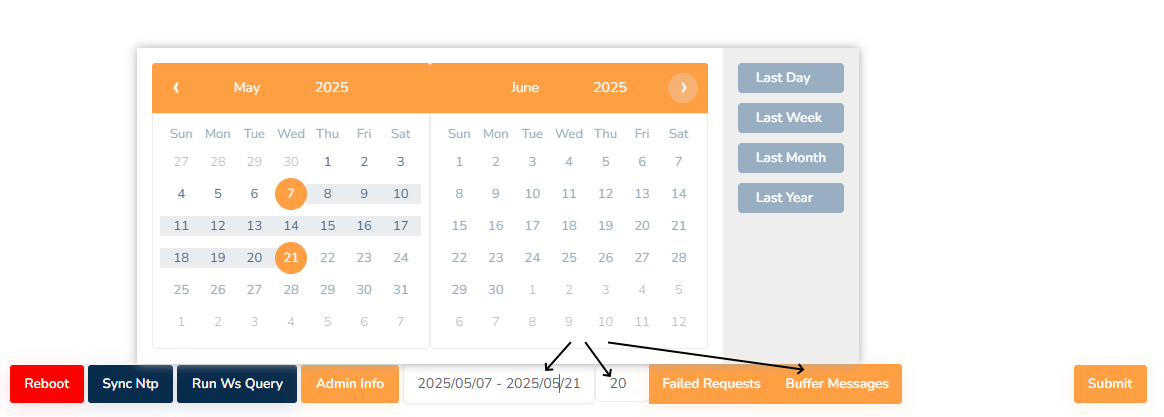

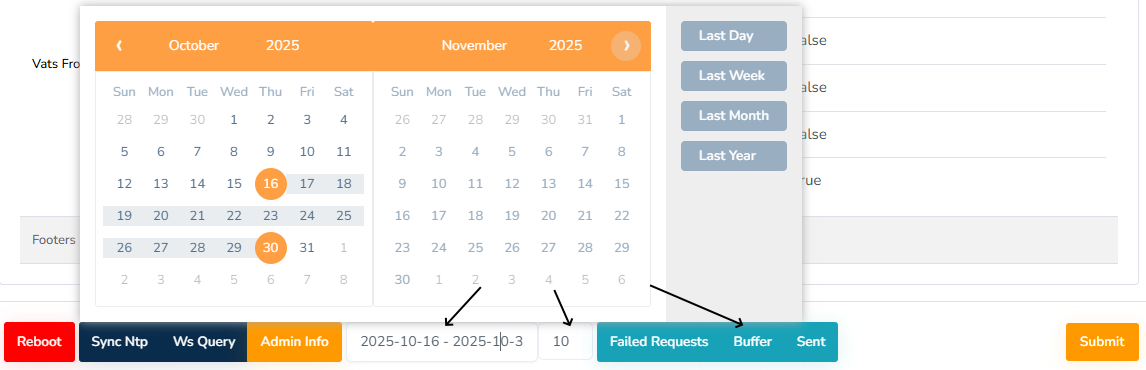

Via de Backoffice Tools kan dit eveneens worden opgevraagd

Daarna krijg je een lijst met failed requests

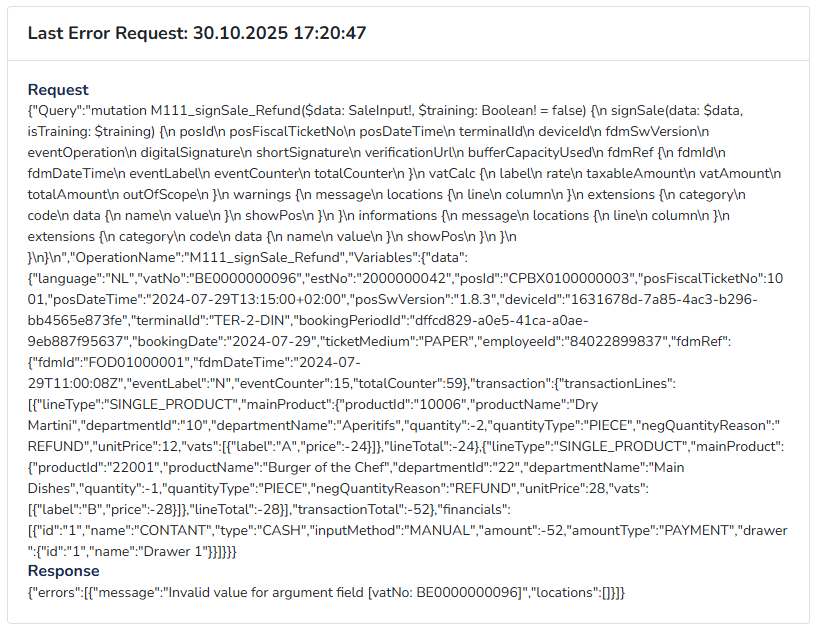

Raadpleging Error Log

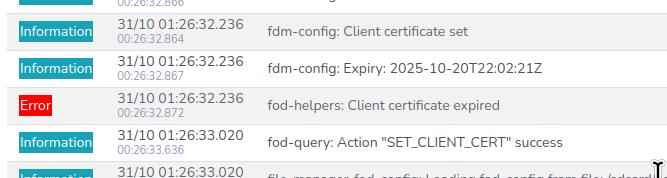

Raadpleging Client Certificaat

GraphQl

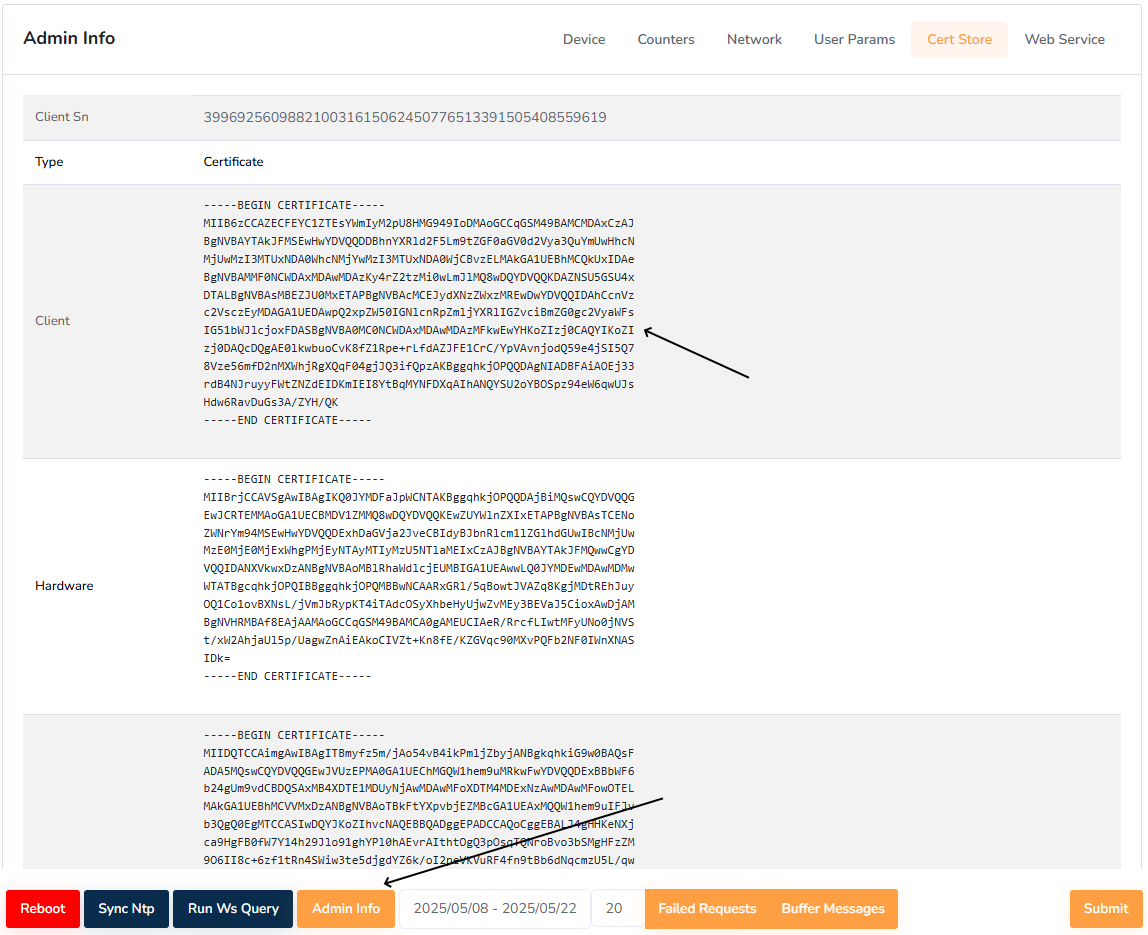

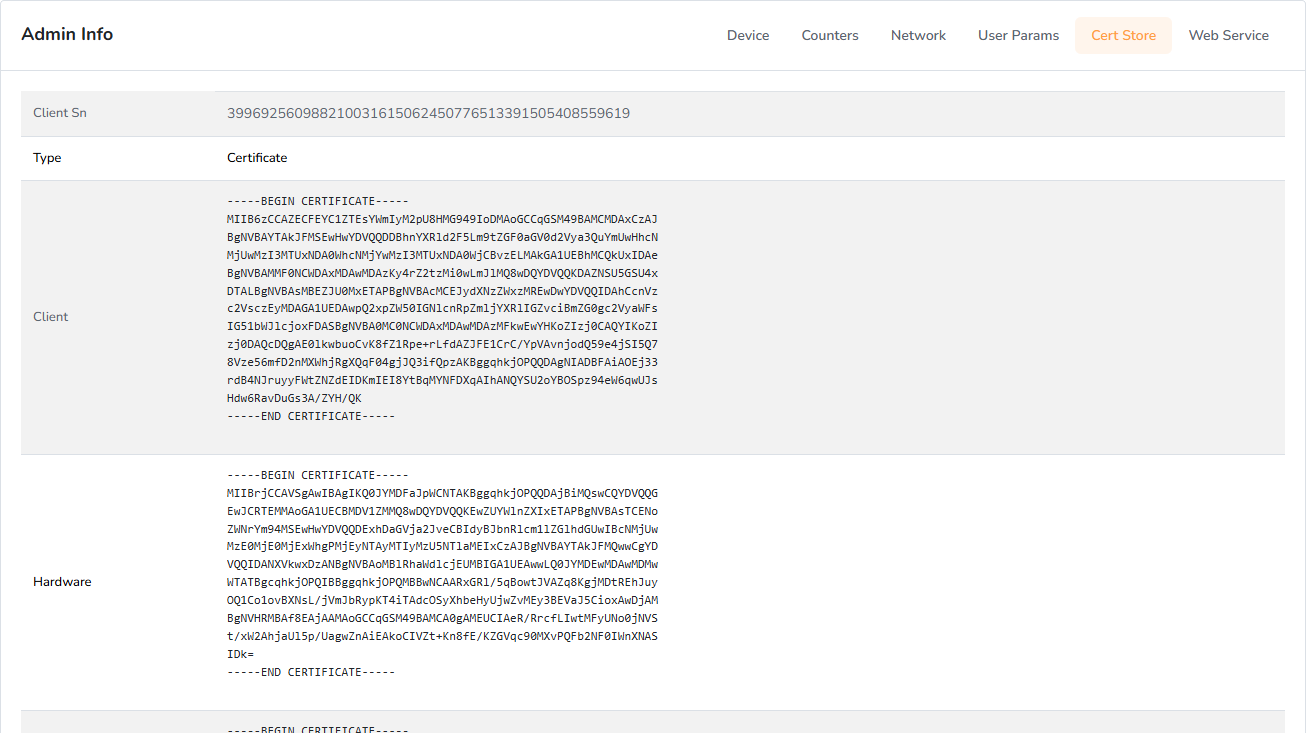

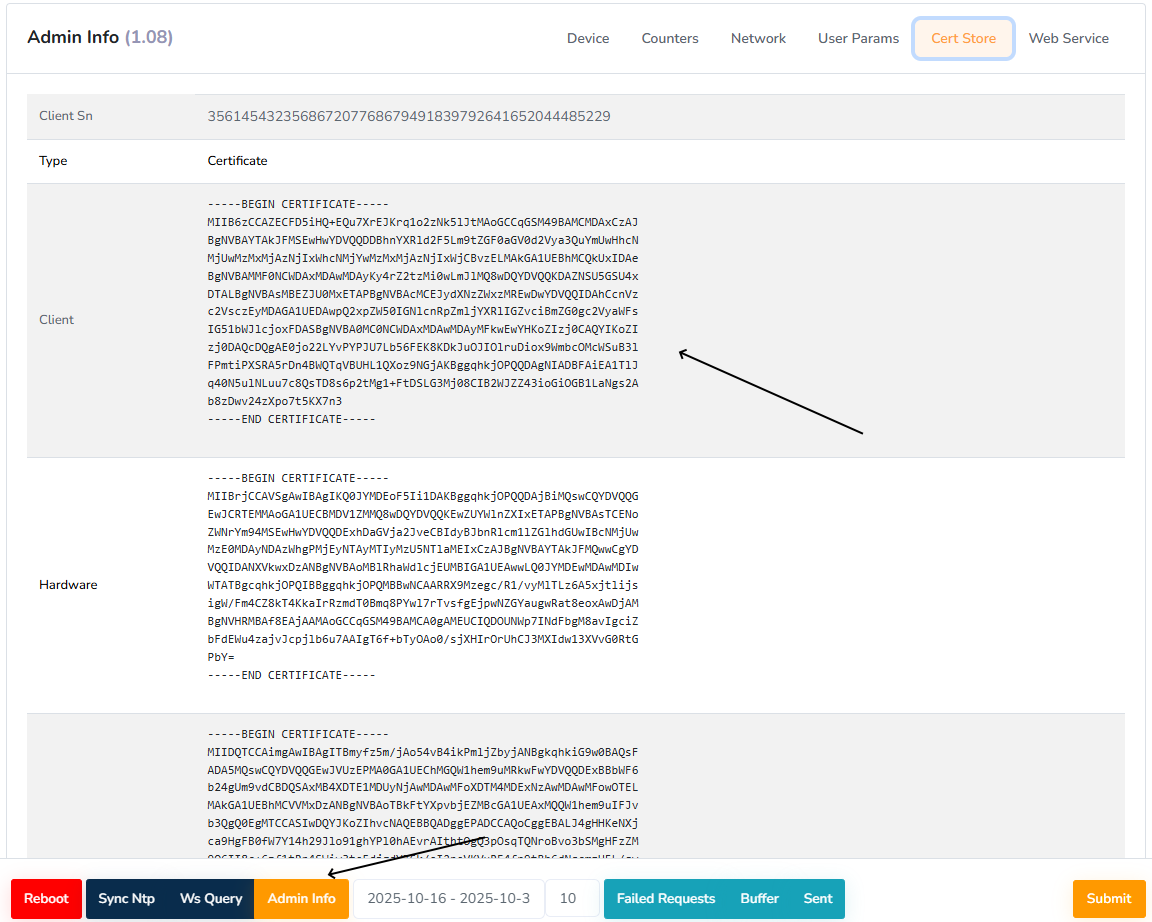

Met onderstaande query kan het cliënt certificaat uitgelezen worden.

query AdminInfos {
    adminInfos {
        userParams {
            certStore {
                client
            }
        }
    }
}

Dit resulteert in een client certificaat

{
    "data": {
        "adminInfos": {
            "userParams": {
                "certStore": {
                    "client": "-----BEGIN CERTIFICATE-----\nMIIB6zCCAZECFEYC1ZTEsYWmIyM2pU8HMG949IoDMAoGCCqGSM49BAMCMDAxCzAJ\nBgNVBAYTAkJFMSEwHwYDVQQDDBhnYXRld2F5Lm9tZGF0aGV0d2Vya3QuYmUwHhcN\nMjUwMzI3MTUxNDA0WhcNMjYwMzI3MTUxNDA0WjCBvzELMAkGA1UEBhMCQkUxIDAe\nBgNVBAMMF0NCWDAxMDAwMDAzKy4rZ2tzMi0wLmJlMQ8wDQYDVQQKDAZNSU5GSU4x\nDTALBgNVBAsMBEZJU0MxETAPBgNVBAcMCEJydXNzZWxzMREwDwYDVQQIDAhCcnVz\nc2VsczEyMDAGA1UEDAwpQ2xpZW50IGNlcnRpZmljYXRlIGZvciBmZG0gc2VyaWFs\nIG51bWJlcjoxFDASBgNVBA0MC0NCWDAxMDAwMDAzMFkwEwYHKoZIzj0CAQYIKoZI\nzj0DAQcDQgAE0lkwbuoCvK8fZ1Rpe+rLfdAZJFE1CrC/YpVAvnjodQ59e4jSI5Q7\n8Vze56mfD2nMXWhjRgXQqF04gjJQ3ifQpzAKBggqhkjOPQQDAgNIADBFAiAOEj33\nrdB4NJruyyFWtZNZdEIDKmIEI8YtBqMYNFDXqAIhANQYSU2oYBOSpz94eW6qwUJs\nHdw6RavDuGs3A/ZYH/QK\n-----END CERTIFICATE-----"
                }
            }
        }
    }
}

Backoffice Tools

Anderzijds bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens Admin Info kunt opvragen.

Configuratie Netwerk

GraphQl

Backoffice Tools

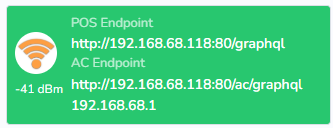

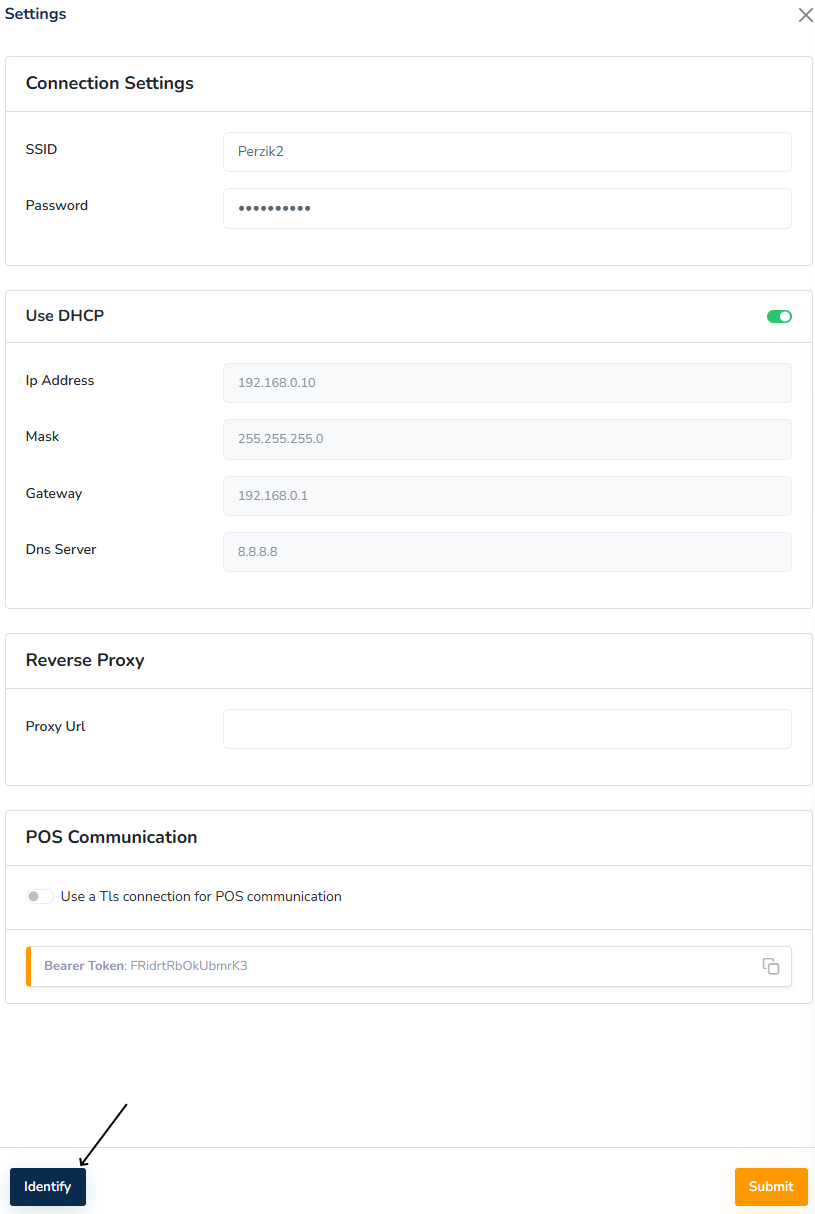

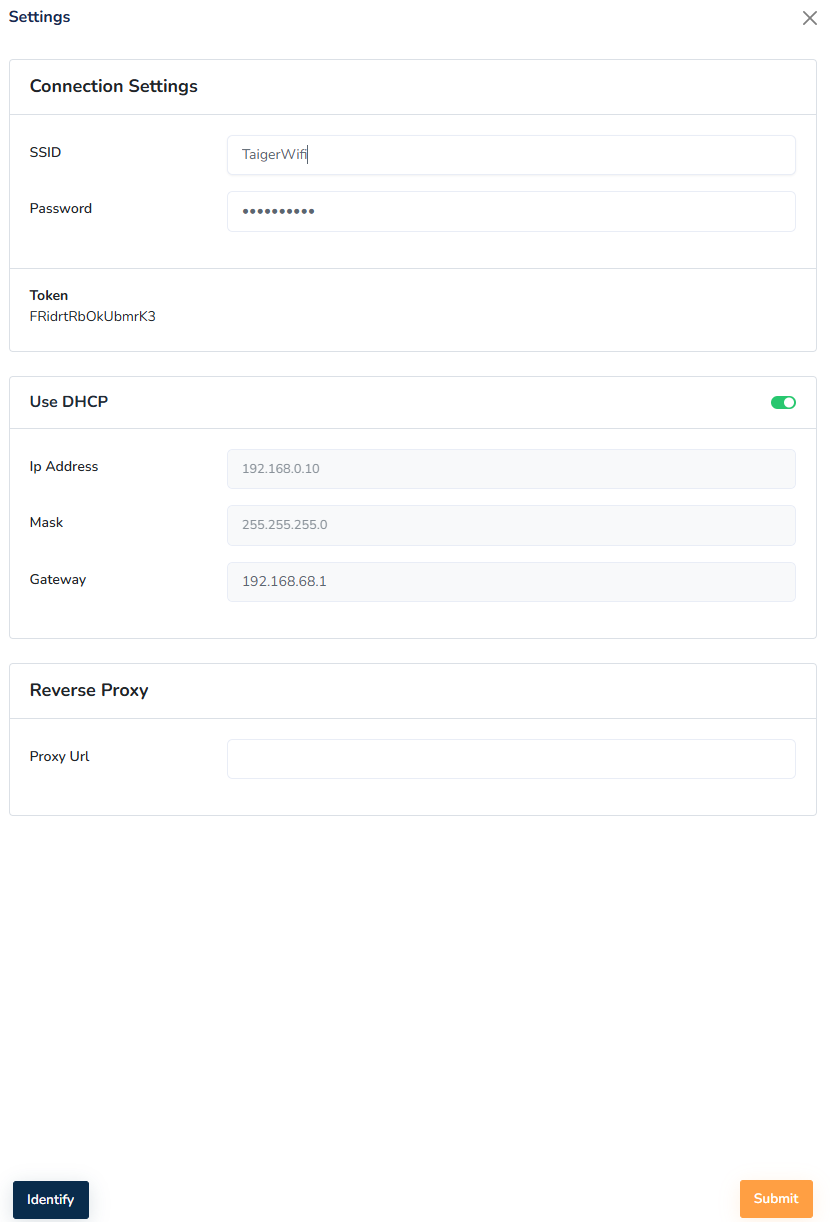

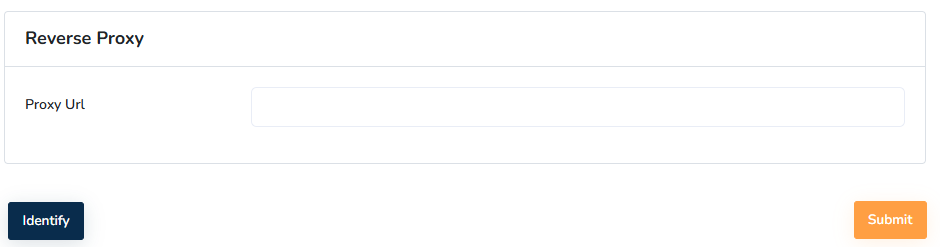

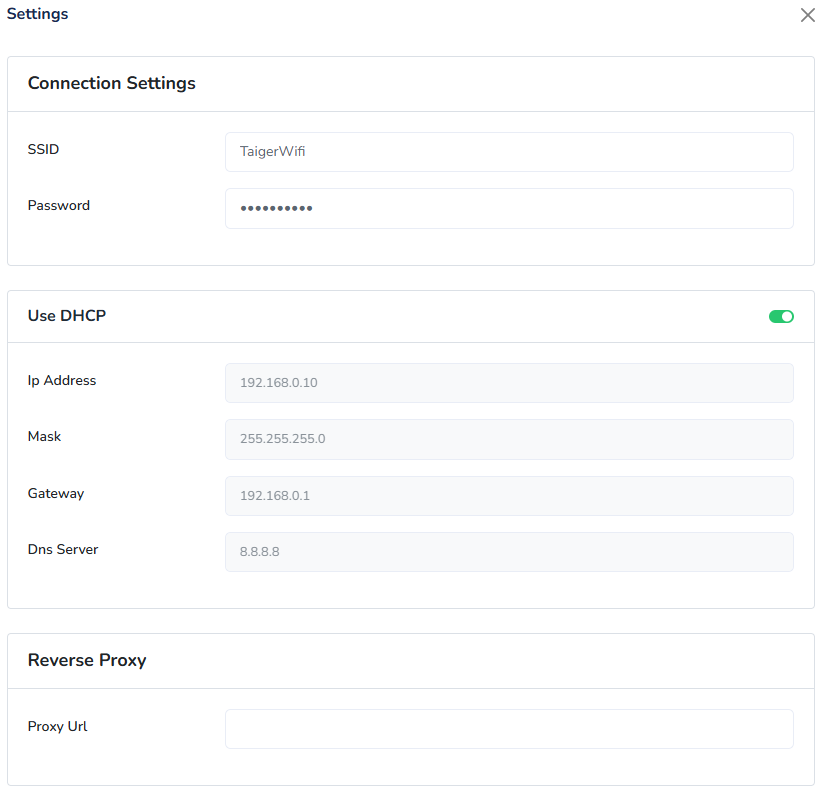

Anderzijds bij de details van een Checkbox kan je via de Settings knop een subscherm oproepen waar je vervolgens de instellingen kunt zien en wijzigen.

Raadpleging data elementen

GraphQl

Volgende Query zorgt ervoor dat alle Data elementen te vinden in de tabel uit hoofdstuk 5 op te vragen zijn.

query AdminInfos {
    adminInfos {
        userParams {
            fdmLockFromDateList {
                fdmLock
                lockReason {
                    language
                    message
                }
            }
            posIdFromDateList {
                posIdList
            }
            fdmLastActions
            fdmLastSuccessfulTrans
            retryCount
            vatFromBookingDateList {
                fromBookingDate
                vatRates {
                    vatLabel
                    vatRate
                    outOfScope
                }
            }
            footer
            url
            maxMsgSize
            webService {
                wsReg
                wsNop
                wsInit
                wsQuery
                wsNtp1
                wsNtp2
                wsNtp3
            }
            certStore {
                client
                hw
                clientSn
                claim
            }
        }
        device {
            fdmId
            fdmSwVersion
            fdmDateTime
        }
        paramsVersion
    }
}

Dit resulteert in alle gevraagde velden uit deze tabel.

{
    "data": {
        "adminInfos": {
            "userParams": {
                "fdmLockFromDateList": {
                    "fdmLock": false,
                    "lockReason": null
                },
                "posIdFromDateList": {
                    "posIdList": [
                        "PBX01000003",
                        "PBX01000999"
                    ]
                },
                "fdmLastActions": "2025-05-21T19:04:10Z",
                "fdmLastSuccessfulTrans": "2025-05-21T19:03:50Z",
                "retryCount": 0,
                "vatFromBookingDateList": {
                    "fromBookingDate": "2020-01-01",
                    "vatRates": [
                        {
                            "vatLabel": "A",
                            "vatRate": 21,
                            "outOfScope": false
                        },
                        {
                            "vatLabel": "B",
                            "vatRate": 12,
                            "outOfScope": false
                        },
                        {
                            "vatLabel": "C",
                            "vatRate": 6,
                            "outOfScope": false
                        },
                        {
                            "vatLabel": "D",
                            "vatRate": 0,
                            "outOfScope": false
                        },
                        {
                            "vatLabel": "X",
                            "vatRate": 0,
                            "outOfScope": true
                        }
                    ]
                },
                "footer": [
                    "myfootertext1",
                    "myfootertext1"
                ],
                "url": "https://www.gks2-0.be",
                "maxMsgSize": 256,
                "webService": {
                    "wsReg": "https://secure.acc.gks2-0.be/business/reg",
                    "wsNop": "https://secure.acc.gks2-0.be/business/reg",
                    "wsInit": "https://acc.gks2-0.be/public/init",
                    "wsQuery": "https://secure.acc.gks2-0.be/business/query",
                    "wsNtp1": "time.aws.com",
                    "wsNtp2": "time.belnet.com",
                    "wsNtp3": "debian.pool.ntp.org"
                },
                "certStore": {
                    "client": "-----BEGIN CERTIFICATE-----\nMIIB6zCCAZECFEYC1ZTEsYWmIyM2pU8HMG949IoDMAoGCCqGSM49BAMCMDAxCzAJ\nBgNVBAYTAkJFMSEwHwYDVQQDDBhnYXRld2F5Lm9tZGF0aGV0d2Vya3QuYmUwHhcN\nMjUwMzI3MTUxNDA0WhcNMjYwMzI3MTUxNDA0WjCBvzELMAkGA1UEBhMCQkUxIDAe\nBgNVBAMMF0NCWDAxMDAwMDAzKy4rZ2tzMi0wLmJlMQ8wDQYDVQQKDAZNSU5GSU4x\nDTALBgNVBAsMBEZJU0MxETAPBgNVBAcMCEJydXNzZWxzMREwDwYDVQQIDAhCcnVz\nc2VsczEyMDAGA1UEDAwpQ2xpZW50IGNlcnRpZmljYXRlIGZvciBmZG0gc2VyaWFs\nIG51bWJlcjoxFDASBgNVBA0MC0NCWDAxMDAwMDAzMFkwEwYHKoZIzj0CAQYIKoZI\nzj0DAQcDQgAE0lkwbuoCvK8fZ1Rpe+rLfdAZJFE1CrC/YpVAvnjodQ59e4jSI5Q7\n8Vze56mfD2nMXWhjRgXQqF04gjJQ3ifQpzAKBggqhkjOPQQDAgNIADBFAiAOEj33\nrdB4NJruyyFWtZNZdEIDKmIEI8YtBqMYNFDXqAIhANQYSU2oYBOSpz94eW6qwUJs\nHdw6RavDuGs3A/ZYH/QK\n-----END CERTIFICATE-----",
                    "hw": "-----BEGIN CERTIFICATE-----\r\nMIIBrjCCAVSgAwIBAgIKQ0JYMDFaJpWCNTAKBggqhkjOPQQDAjBiMQswCQYDVQQG\r\nEwJCRTEMMAoGA1UECBMDV1ZMMQ8wDQYDVQQKEwZUYWlnZXIxETAPBgNVBAsTCENo\r\nZWNrYm94MSEwHwYDVQQDExhDaGVja2JveCBIdyBJbnRlcm1lZGlhdGUwIBcNMjUw\r\nMzE0MjE0MjExWhgPMjEyNTAyMTIyMzU5NTlaMEIxCzAJBgNVBAYTAkJFMQwwCgYD\r\nVQQIDANXVkwxDzANBgNVBAoMBlRhaWdlcjEUMBIGA1UEAwwLQ0JYMDEwMDAwMDMw\r\nWTATBgcqhkjOPQIBBggqhkjOPQMBBwNCAARxGRl/5qBowtJVAZq8KgjMDtREhJuy\r\nOQ1Co1ovBXNsL/jVmJbRypKT4iTAdcOSyXhbeHyUjwZvMEy3BEVaJ5CioxAwDjAM\r\nBgNVHRMBAf8EAjAAMAoGCCqGSM49BAMCA0gAMEUCIAeR/RrcfLIwtMFyUNo0jNVS\r\nt/xW2AhjaUl5p/UagwZnAiEAkoCIVZt+Kn8fE/KZGVqc90MXvPQFb2NF0IWnXNAS\r\nIDk=\r\n-----END CERTIFICATE-----\r\n",
                    "clientSn": "399692560988210031615062450776513391505408559619",
                    "claim": [
                        "-----BEGIN CERTIFICATE-----\nMIIB8DCCAZUCFFeMk2ygWkC/hsdhpevmwKde6X9lMAoGCCqGSM49BAMCMHYxCzAJ\nBgNVBAYTAkJFMREwDwYDVQQIDAhCcnVzc2VsczERMA8GA1UEBwwIQnJ1c3NlbHMx\nEDAOBgNVBAoMB1lvdXJPcmcxETAPBgNVBAsMCFlvdXJVbml0MRwwGgYDVQQDDBNp\nbnRlcm1lZGlhdGUucG9jLmJlMB4XDTI1MDUxNjAxMDAxOFoXDTI1MDUzMDAxMDAx\nOFowfjELMAkGA1UEBhMCQkUxETAPBgNVBAgMCEJydXNzZWxzMREwDwYDVQQHDAhC\ncnVzc2VsczEXMBUGA1UECgwOTXlPcmdhbml6YXRpb24xCzAJBgNVBAsMAklUMSMw\nIQYDVQQDDBpmaW5hbC5jbGFpbS5taW5maW4uZmdvdi5iZTBZMBMGByqGSM49AgEG\nCCqGSM49AwEHA0IABJ6+Wg23m7zD/Eqw8hUjUQct3q36hMUNoVvaLiud5Kzz37Cu\naCBXvGCLdepyye3WPlhfRtOJKTaoSIulI/oskcowCgYIKoZIzj0EAwIDSQAwRgIh\nALlIZGAzPRpNLi+l2D5qzwFaOtMoGi2GG1PADBgVg7xvAiEAxp5c/f9XaAR04OZq\nA3Sx6r/TSaOba4sUIjVHb3ZiM2I=\n-----END CERTIFICATE-----\n"
                    ]
                }
            },
            "device": {
                "fdmId": "CBX01000003",
                "fdmSwVersion": "0.1.4+dev+",
                "fdmDateTime": "2025-05-21T23:19:57Z"
            },
            "paramsVersion": "2025-03-20T12:22:53.364Z"
        }
    }
}

Backoffice Tools

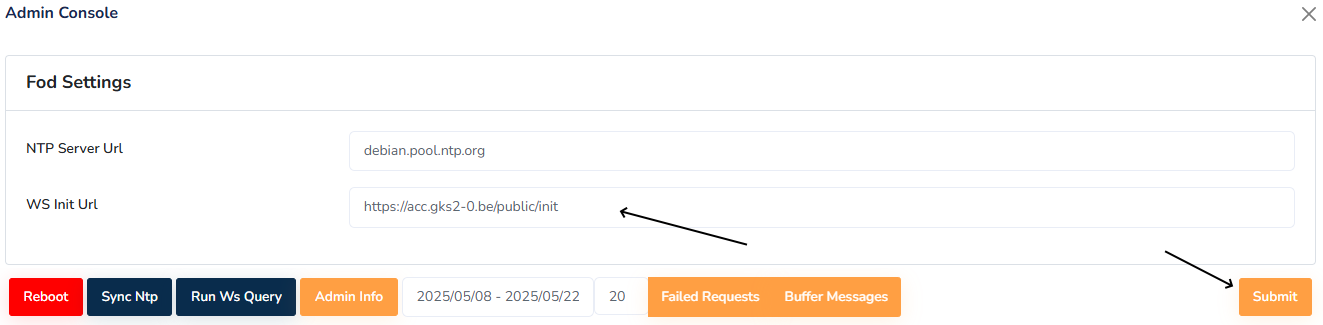

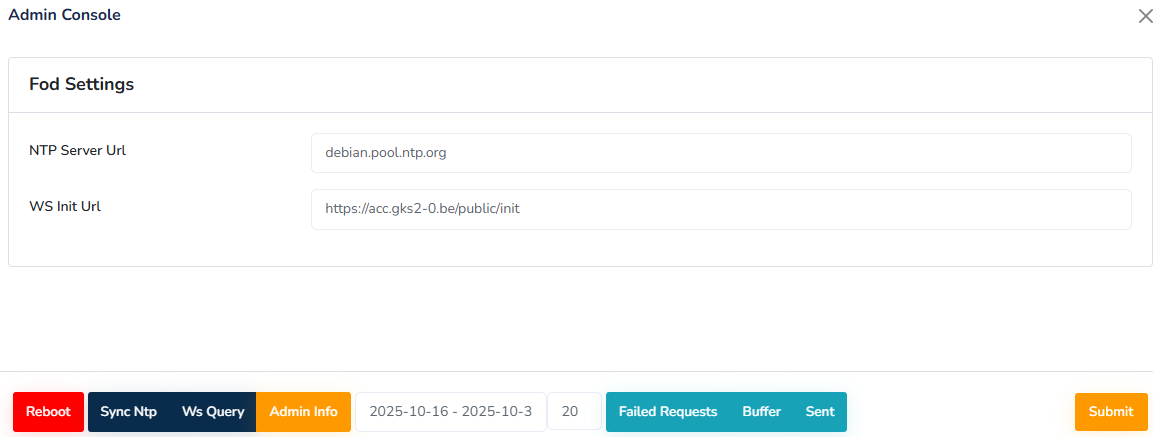

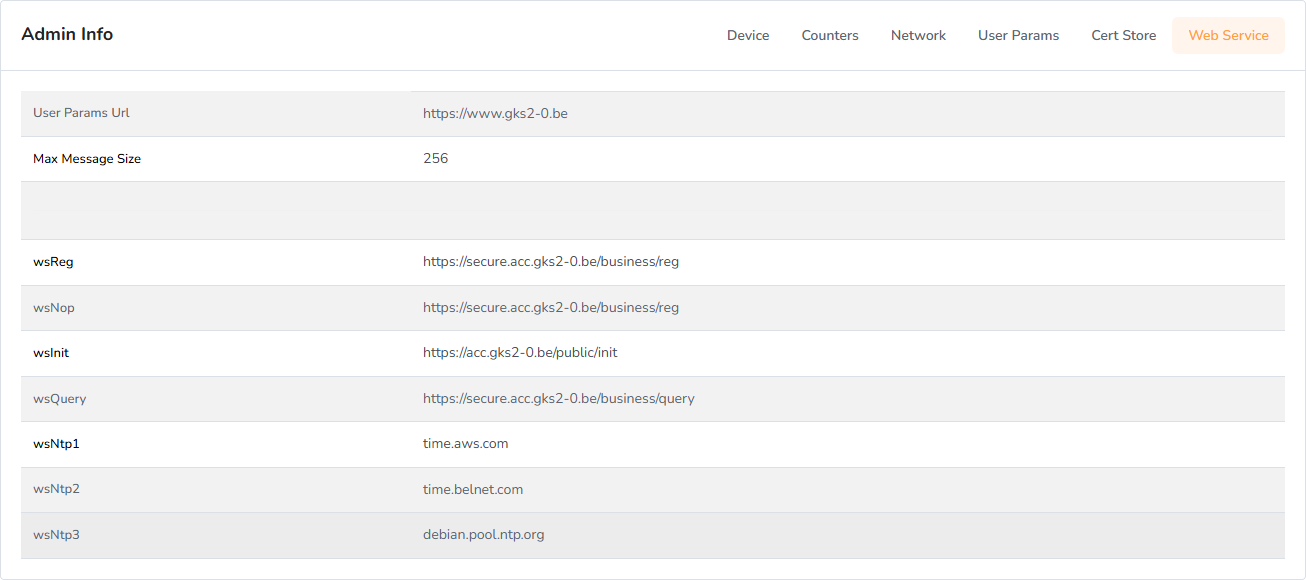

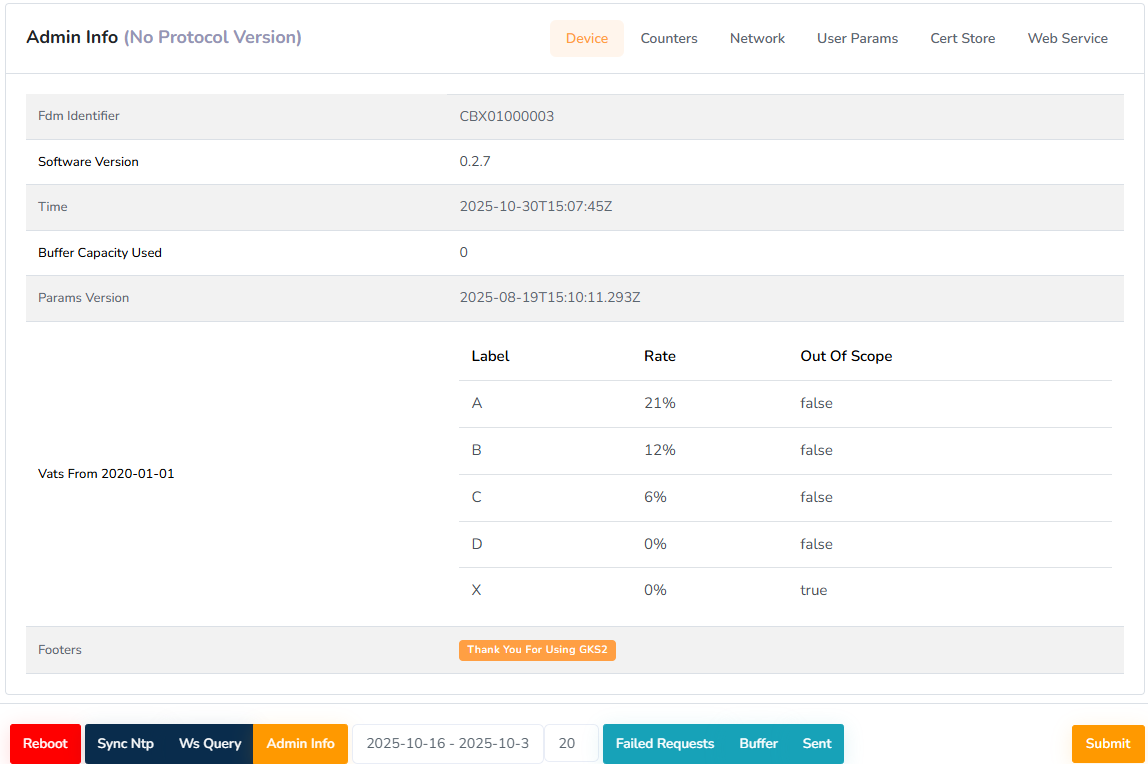

Bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens via Admin Info alle data elementen kunt terugvinden in de getoonde data. Zie de screenshots hieronder, alle data elementen die moeten getoond worden volgens de tabel kun je hier terugvinden.

Configuratie ws_init url

GraphQl

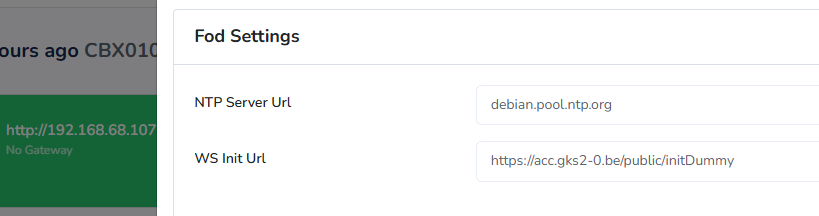

De volgende mutatie zorgt ervoor dat de ws_init url kan ingesteld worden naar een gekozen waarde.

mutation SetWsInit {
    setWsInit(wsInit: "https://acc.gks2-0.be/public/init") {
        status
    }
}

Wanneer dit gelukt is zal de Checkbox antwoorden met een status 0

{
    "data": {
        "setWsInit": {
            "status": 0
        }
    }
}

Backoffice Tools

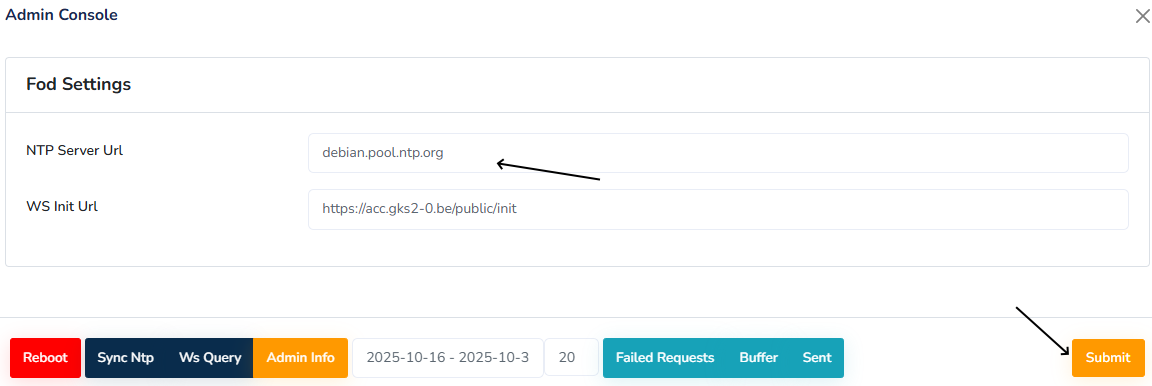

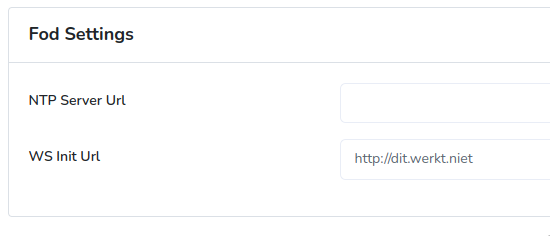

Bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens de url van de Ws Init kunt ingeven, wanneer je op Submit klikt worden deze naar de Checkbox verstuurd.

Configuratie en Synchronisatie Ntp

GraphQl

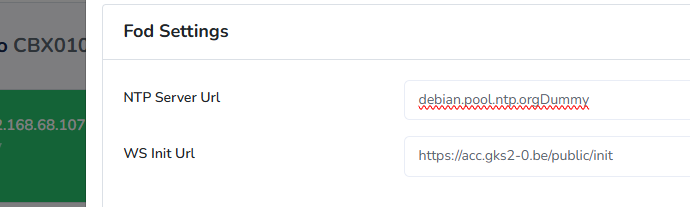

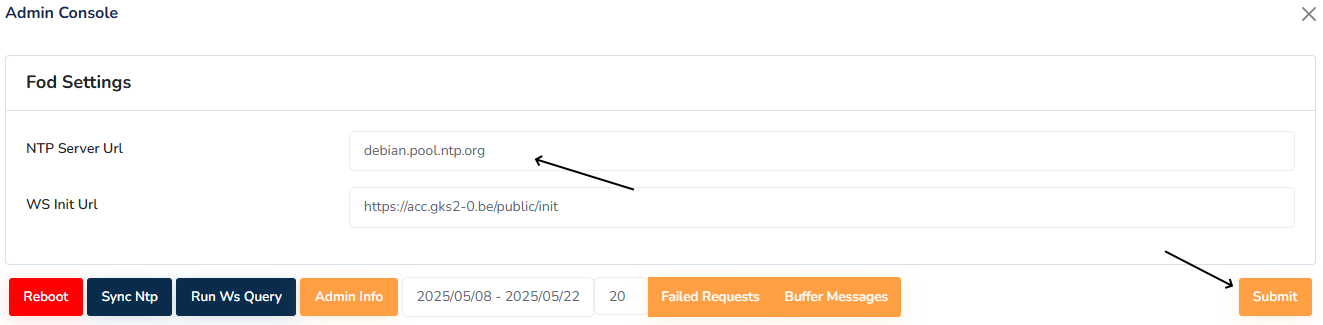

De volgende mutatie zorgt ervoor dat de ntp3 url kan ingesteld worden naar een gekozen waarde.

mutation SetWsNtp3 {
    setWsNtp3(wsNtp3: "debian.pool.ntp.org") {
        status
    }
}

Wanneer dit gelukt is zal de Checkbox antwoorden met een status 0

{
    "data": {
        "setWsNtp3": {
            "status": 0
        }
    }
}

Backoffice Tools

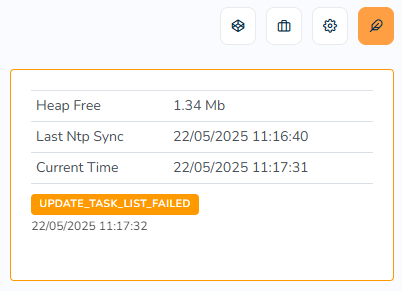

Bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens de url van de NTP Server kunt ingeven, wanneer je op Submit klikt worden deze naar de Checkbox verstuurd.

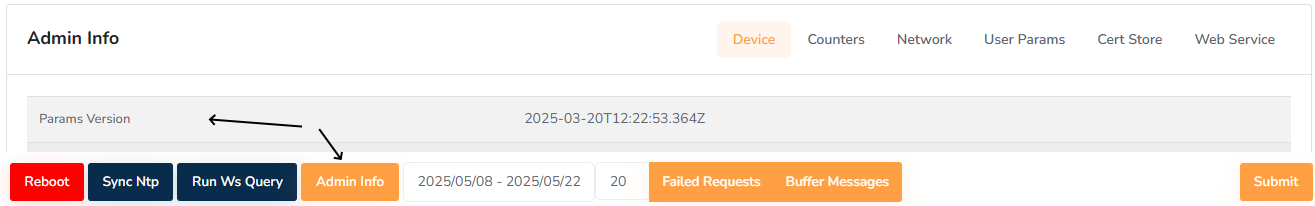

Raadplegen huidige versie FDM-Parameters

GraphQl

Via de volgende Query is het mogelijk om de huidige parameter versie op te vragen

query AdminInfos {
    adminInfos {
        paramsVersion
    }
}

De Checkbox zal vervolgens antwoorden met zijn versie datum

query AdminInfos {
    adminInfos {
        paramsVersion
    }
}

Backoffice Tools

Bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens Admin Infos oproepen zodat de Checkbox de resultaten teruggeeft, onder Device kun je de Params Version terugvinden, die geeft de datum aan van de huidige versie FDM Parameters

Manueel oproepen query webservice

GraphQl

Via de volgende mutatie kun je de Checkbox forceren om deze query uit te voeren

mutation CallWsQuery {
    callWsQuery {
        status
    }
}

Wanneer dit lukt stuurt de Checkbox een status 0 terug

{
    "data": {
        "callWsQuery": {
            "status": 0
        }
    }
}

Backoffice Tools

Bij de details van een Checkbox kan je via de Admin Console knop een subscherm oproepen waar je vervolgens Run Ws Query oproepen zodat de Checkbox manueel deze functie zal uitvoeren.

Extra functies

Opslaan van PBit en CBit

PBit

Wanneer een Checkbox boot, dan wordt een PBit (Power Built in test) uitgevoerd, De resultaten kunnen op de Backoffice worden bijgehouden, De nuttige informatie wordt weergegeven bij de details van een Checkbox.

Deze informatie is uiterst nuttig voor ons of voor troubleshooting wanneer iemand zou bellen met problemen.

CBit

Wanneer een Checkbox normaal werkt worden er intern af en toe toch testen uitgevoerd om te zien of alles nog naar behoren werkt. Dit noemt men een CBit (Continous Built in test)

Ook deze informatie is voor ons uiterst nuttig, zo kunnen we ook zien wat er in het verleden gebeurd is, of er zich fouten hebben voorgedaan in het verleden.

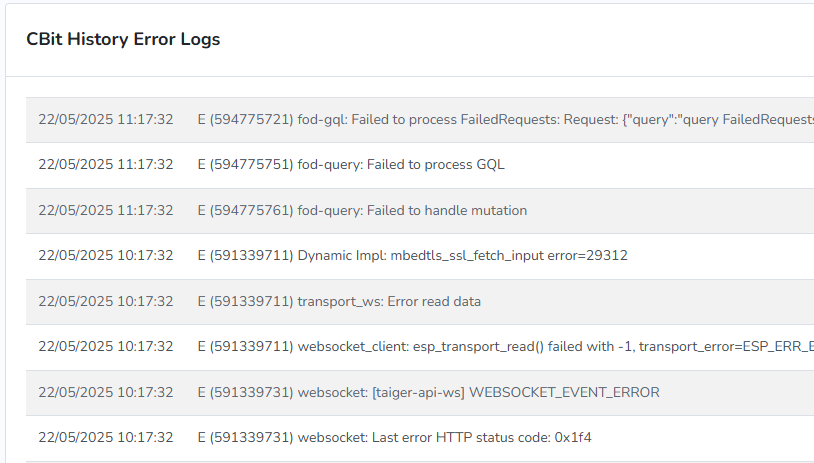

Dit toont ons de laatste status van de CBit. Daar kan Taiger ook de geschiedenis van zien

Deze optie zal wel standaard afliggen, Daar er toch heel wat ruimte gepaard gaat met het opslaan van deze history zal deze optie tijdelijk worden aangelegd in geval van een probleem met een of andere Checkbox

Checkbox Bridge

De Checkbox voorziet een bridge functionaliteit, Dit betekent dat de GQL communicatie niet naar de Checkbox direct wordt geconfigureerd, maar wel naar de Checkbox Bridge. Deze middleware is een functionaliteit die we aanbieden zodat een cloud gebaseerd systeem alle moeilijkheden niet heeft om bij de Checkbox te geraken. De bridge kan ook bij een conventioneel kassasysteem een grote hulp zijn bij de configuratie en setup van het systeem.
En klassieke setup brengt enkele moeilijkheden met zich mee, de Checkbox krijgt een IP adres men moet die zien te achterhalen, soms moeten netwerk infrastructuren aangepast worden beveiligingen opengezet, poorten opengezet van buitenaf zodat een systeem, (cloud gebaseerd of klassiek), toegang zou kunnen krijgen tot de Checkbox.

Onze bridge lost dit probleem op. Er is 1 endpoint die op elk systeem mag worden ingesteld. Er wordt in de request 2 extra headers meegegeven

• de Api Key
• de FDM Identifier

Via deze 2 extra headers gaat de Bridge gaan controlleren of deze gebruiker eerst en vooral recht heeft om de bridge te gebruiken, en anderzijds of deze specifieke Checkbox rechten heeft om de Bridge te gebruiken.

De fdm zet bij het booten een websocket open naar de Bridge, waardoor de Bridge de mogelijkheid heeft om te communiceren met de doos in Real time. De Bridge heeft op zijn beurt ook een GraphQl endpoint waarop alle mutaties en queries van een fysieke Checkbox terug te vinden zijn. Een kassa systeem kan vervolgens deze URL en endpoint gaan gebruiken.
Het POS syteem stuurt exact dezelfde GQL queries en mutaties door naar de Bridge, die op zijn beurt handelt slechts als een Relay, en wijzigt verder niets aan de structuur. De Checkbox ontvangt de mutatie en zo wordt het resultaat terug gestuurd.

Voordeel	Nadeel
Gemakkelijke configuratie	Altijd internet connectie nodig
Cloud applicaties veel eenvoudiger	Iets trager dan een directe verbinding
Geen speciale GQL messages	Extra headers nodig
Extra security	Werkt enkel met Checkbox

Local mDns

Bonjour Service

Op vraag van enkele POS fabrikanten is er een bonjour service gekomen. Er was geen enkele manier om te weten wat het adres is om de Checkbox ge configureren aan de POS zijde.
Wij hebben voorzien dat je dit kunt weten via onze Backoffice, maar dit was niet voldoende.
Dus er is nu een Bonjour service die zijn ip adres afficheert op het lokale netwerk.
Wanneer er wordt naar gescand via eender welk Bonjour browser zul je de Checkbox vinden met zijn Identifier en zijn IP adres er bij.
Zo kan een kassasysteem aan de hand van de Identifier het adres terugvinden.

Local Hostname

Wanneer je een Checkbox wenst te addresseren wordt er typisch het IP adres gebruikt, maar dit kan ook anders, men kan de locale hostname gaan gebruiken, Deze wordt als volgt opgebouwd

IDENTIFIER.local

Men kan op deze manier ook het ip adres van de Checkbox gaan terugvinden door een ping commando uit te voeren naar dit adres.

Pinging CBX01000003.local [192.168.68.107] with 32 bytes of data:
Reply from 192.168.68.107: bytes=32 time=1ms TTL=64
Reply from 192.168.68.107: bytes=32 time<1ms TTL=64
Reply from 192.168.68.107: bytes=32 time<1ms TTL=64
Reply from 192.168.68.107: bytes=32 time<1ms TTL=64

Ping statistics for 192.168.68.107:
    Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
    Minimum = 0ms, Maximum = 1ms, Average = 0ms

Dit werkt enkel via het lokale netwerk

Disable Fod Link

Taiger biedt de mogelijkheid om een Checkbox te configureren zonder dat deze een verbinding met de FOD-servers opzet. Deze functionaliteit was essentieel tijdens de ontwikkelingsfase, voordat de server beschikbaar was. Daarnaast kan deze optie nuttig zijn bij het troubleshooten, waarbij een debug-apparaat wordt gebruikt. Door de toevoeging van een extra beveiligingslaag, die restricties oplegt aan welke POS-systemen met welke FDM’s kunnen communiceren, kan troubleshooten bij klanten complex worden. Daarom kan het voor installateurs handig zijn om over een Checkbox te beschikken waarbij deze functie is uitgeschakeld.

Taiger verbindt zich ertoe dat geen enkele Checkbox deze modus zal deactiveren zonder uitdrukkelijke toestemming van de FOD.

GraphQl Pos Status

De GraphQl endpoint heeft een niet beschreven endpoint aan boord, die wat info van de Checkbox kan weergeven, zonder dat een mutatie hoeft plaats te vinden. De POS kan op deze manier zonder transactie weten of de Checkbox actief is, welke checkbox het is, of alles klopt of er errors, warnings, informations actief zijn. Men kan dit met deze query raadplegen.

query Status {
    status(language: NL) {
        initialised
        device {
            fdmId
            fdmSwVersion
            fdmDateTime
            bufferCapacityUsed
        }
        informations {
            message
            locations {
                line
                column
            }
            extensions {
                category
                code
                showPos
                data {
                    name
                    value
                }
            }
        }
        errors {
            message
            locations {
                line
                column
            }
            extensions {
                category
                code
                showPos
                data {
                    name
                    value
                }
            }
        }
        warnings {
            message
            extensions {
                category
                code
                showPos
                data {
                    name
                    value
                }
            }
            locations {
                line
                column
            }
        }
    }
}

Buffer Messages

Buffer Sent Messages

FODFIN-Cloud

Api Protocol Algemeen

De ErosMark-firmware voor de FDM maakt gebruik van een veilige mTLS-verbinding om te communiceren met de FODFIN-Cloud.

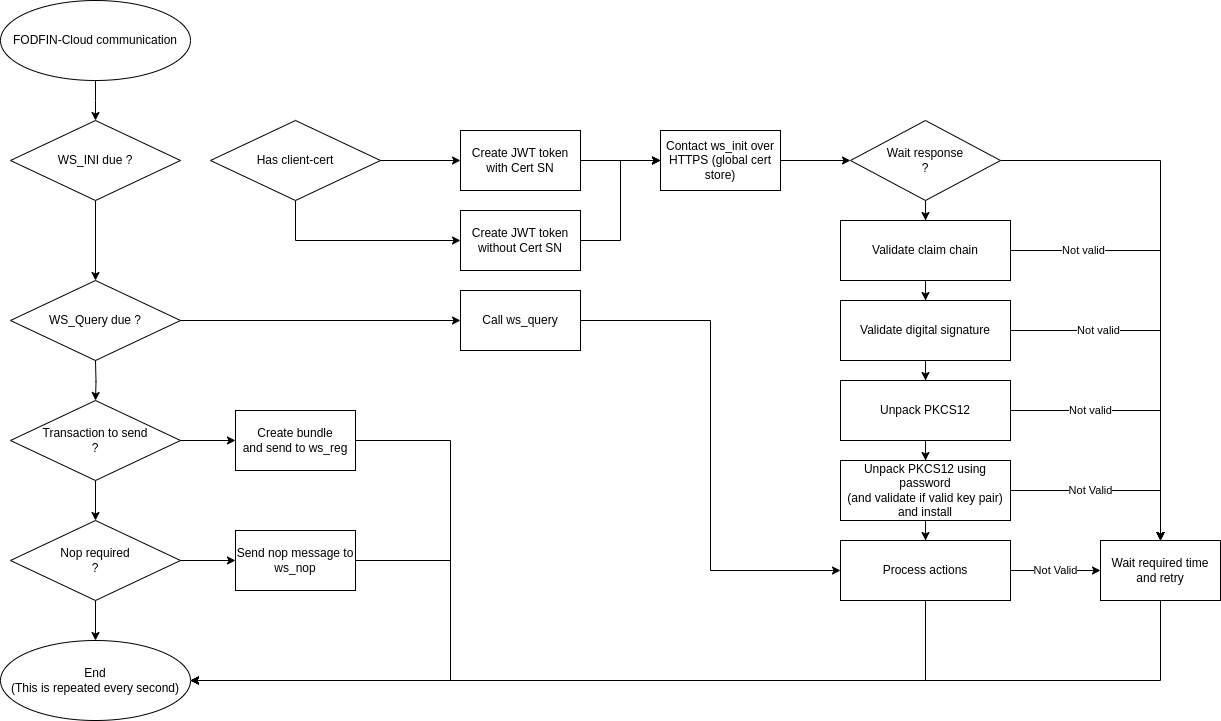

In de onderstaande flowchart wordt de algemene werking van deze communicatie – van initiële authenticatie tot gegevensuitwisseling en foutafhandeling.

FDM Certificaatbeheer

Root certificaat

We hebben een root certificaat aangemaakt, Dit is een Zelf ondertekend certificaat,

• Private Key: prime256v1
• Geldigheid: 13/02/2025 - 13/02/2125
• Serienummer: 136F87FEBFE4C4B1
• Onderwerp: CN=Taiger Root,OU=Checkbox,O=Taiger,ST=WVL,C=BE

Dit certificaat werd aangemaakt in een XCA Vault die nogmaals werd beveiligd met een wachtwoord.

Deze vault staat bij ons op een lokale server bij Taiger, en is niet benaderbaar via het internet.

Intermediate Certificaat

Vanaf het root certificaat hebben we vervolgens een Checkbox Intermediate certificaat gemaakt.

• Private Key: prime256v1
• Geldigheid: 13/02/2025 - 13/02/2125
• Serienummer: 12F52079E54350FC
• Onderwerp: CN=Checkbox Intermediate,OU=Checkbox,O=Taiger,ST=WVL,C=BE

Ook dit certificaat zit in de Vault die op onze server staat en enkel lokaal toegankelijk.

Voor het valideren van de claim-chain, bevattend in het init pakket, wordt dit op target opgeslaan, in een NVS partitie.

Fod Intermediate Certificaat

Vanaf het Intermediate Certificaat hebben we een Fod Intermediate Certificaat aangemaakt

• Private Key: prime256v1
• Geldigheid: 13/02/2025 - 13/02/2125
• Serienummer: 69A41C78E42CCD71
• Onderwerp: CN=Checkbox Fod Intermediate,OU=Checkbox,O=Taiger,ST=WVL,C=BE

Dit certificaat werd samen met de private key doorgestuurd aan Fod.

Hw Intermediate Certificaat

Vanaf het Intermediate Certificaat hebben we ook een Hw Intermediate Certificaat aangemaakt

• Private Key: prime256v1
• Geldigheid: 13/02/2025 - 13/02/2125
• Serienummer: 3E654C444F83694C
• Onderwerp: CN=Checkbox Hw Intermediate,OU=Checkbox,O=Taiger,ST=WVL,C=BE

Dit Intermediate Certificate en zijn key is gebruikt door onze Backend server, Beiden worden veilig in een map geplaatst op de server, deze map heeft geen rechten aan ingelogde gebruikers, enkel aan de .Net Backend applicatiei. Dit certificaat is vervolgens gebruikt om een Hw certificaat te tekenen voor een specifieke Checkbox.

Hw key en Certificaat per Checkbox

Een checkbox maakt bij een eerste boot een private key (fdmHkey) aan in zijn secure element. Deze private key verlaat nooit de Checkbox. Vervolgens wordt een CSR aangemaakt met behulp van deze sleutel, deze CSR wordt vervolgens doorgestuurd naar de Backend om te ondertekenen.
De backend ontvangt dit CSR, hij weet welke Checkbox dit heeft gestuurd, en vergelijkt dit met het onderwerp van de CSR, als deze 2 kloppen wordt een Hw Certificaat aangemaakt en opgeslagen in een database. Dit certificaat krijgt de checkbox, en slaat dit vervolgens op in het secure element. Indien de Checkbox nogmaals een CSR maakt kan het niet anders dan met dezelfde sleutel te zijn, waardoor de backend terug hetzelfde certificaat zal teruggeven, indien er nu nog een CSR van deze bepaalde checkbox zou komen met een andere key dan wordt deze geweigerd..

Dit gebeurt allemaal tijdens het productie proces, de initial boot.

Veiligheid van de procedure

Daar een checkbox maar 1 malig een certificaat kan aanvragen, gaan we ervan uit dat wanneer een checkbox productie verlaat deze veilg is. Een andere instantie kan een CSR aanmaken maar zal dit nooit kunnen met de key van deze checkbox, waardoor de backend de CSR zal resulteren in een failure.

Claim certificaten

De claimcertificaten die de checkbox ontvangt, moeten gevalideerd worden. Om de chain of trust te verifiëren, wordt het intermediate-certificaat op het target opgeslagen. Om veiligheidsredenen wordt dit certificaat apart bewaard en niet in de firmware opgenomen.

Authenticatie

De fdmHkey staat centraal in het authenticatie process, daarom is het belangrijk dat deze veilig opgeslaan wordt en de checkbox niet kan verlaten. Hiervoor is de hardware voorzien van de secure element ATECC608. Overigens gebruiken we de beperkte eeprom van het secure element alsook voor het opslaan van de counters.

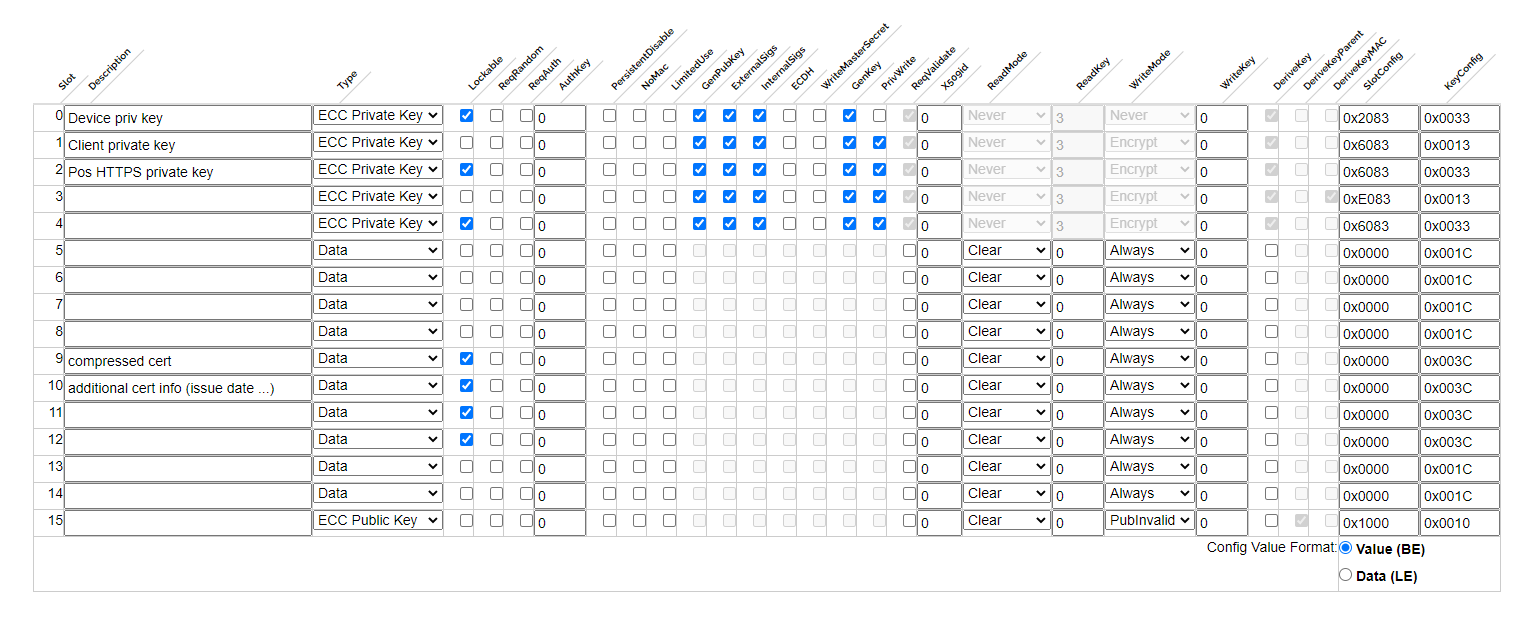

Beschrijving van de slots:

Slot index	Beschrijving
Slot 0	fdmHkey - kan de enclave niet verlaten. Kan gebruikt worden voor signeren van data en laat toe om public key te extrageren.
Slot 9	HW certificate*
Slot 10	HW certificaat issue / expire date. ATECC configuration ID
Slot 11	FDM counters
Slot 12	FDM counters

De ATECC608 heeft een zeer beperkte opslagcapaciteit. Toch heeft Microchip een manier bedacht om met de beperkte capaciteit toch een certificaat te kunnen opslaan. Dit doet men door de belangrijke en unieke stukken van een certificaat te extrageren en op te slaan in de eeprom.

De Configuratie is voorzien van een ID, dit moet het mogelijk maken om in de toekomst om te kunnen gaan met een alternatieve configuratie.dd

FDM counters, er worden 2 slots gealloceerd om de counters op te slaan. Dit om te garanderen dat er altijd 1 slot is om op terug te vallen mocht 1 van de slots corrupt geworden zijn (bvb door een plotse stroomonderbreking)

Trust certificaten

De trust certificaten dienen om het certificaat van de server te valideren bij mTLS communicatie. De checkbox maakt gebruik van de ESP HTTP Client lib, dat op zijn beurt een software laag bovenop mbedTLS is. Deze laat ons toe om een mutual TLS verbinding met FODFIN-Clout op te zetten.

Onderstaand is te zien hoe we in software de certificaten zetten. Hierbij is config van het type esp_http_client_config_t

....
    case HTTP_SECURE_MODE_MTLS:
        config->cert_pem        = wrap->ctxt->cert_store->server_cert.pem;
        config->cert_len        = wrap->ctxt->cert_store->server_cert.len;
        config->client_cert_pem = wrap->ctxt->cert_store->client_cert.pem;
        config->client_cert_len = wrap->ctxt->cert_store->client_cert.len;
        config->client_key_pem  = wrap->ctxt->cert_store->client_key.pem;
        config->client_key_len  = wrap->ctxt->cert_store->client_key.len;
        break;
....

Hierbij is het server_cert.pem het trust certificaat.

Indien het het server certificaat niet gevalideerd kan worden zal de mTLS request falen en krijgt de firmware niet de mogelijkheid om te communiceren met de (not trusted) server.

Systeemklok

De systeemklok wordt gesynced aan de hand van SNTP servers, gedefineerd door ws_ntp1, ws_ntp2 en ws_ntp3.

Hierbij worden ws_ntp1 en ws_ntp2 opgelegd door FODFIN-Cloud via ws_init / ws_query call.

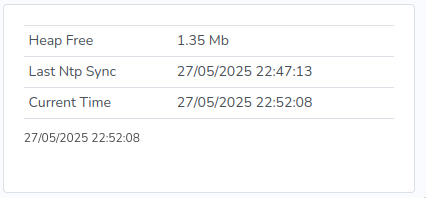

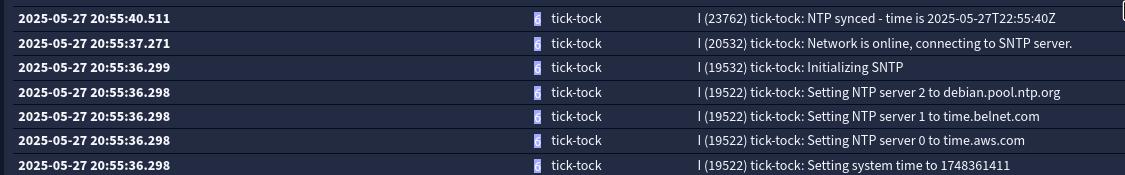

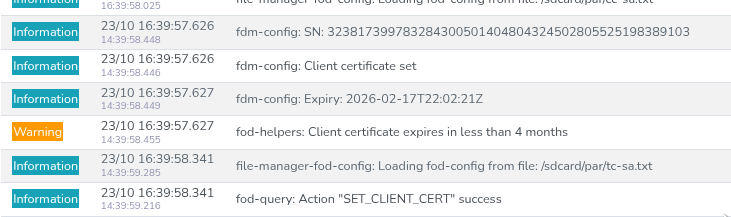

Logs van opstart procedure:

Indien er geen config aanwezig zoals bij de initial boot dan worden volgende defualts gebruikt

Name	index	Default URL
ws_ntp1	0	time.aws.com
ws_ntp2	1	time.belnet.be
ws_ntp3	2	be.pool.ntp.org

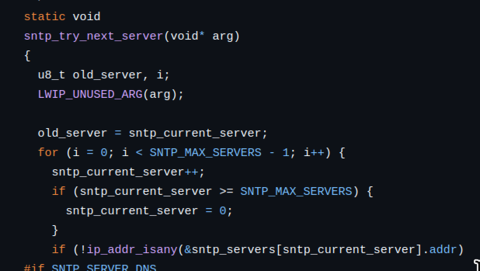

SNTP wordt afgehandeld door de LWIP library, deze tracht eerst te syncen met de server op index 0 vervolgens met 1 en als laatste met de server op index 2.

LWIP - SNTP code snippet:

Vervolgens zal de checkbox elke 47 minuten synchroniseren met de server en zal er een warning gegeven worden indien er in 24u geen enkele syncronisatie was. Ter controle en opvolging rapporteren we in de CBIT de timestamp van de laatste syncronisatie en de ontvangen tijd.

Booting de FDM

Initialisatieboot

Het opslagmedium voor de configuratie is gewist, waarna de logs van de eerste opstart zonder configuratie werden vastgelegd. De getoonde logs zijn gefilterd op NTP- en FOD-gerelateerde berichten.

2025-05-27 21:27:01.940	tick-tock	I (17793) tick-tock: Setting system time to 1748299454
2025-05-27 21:27:01.946	tick-tock	I (17793) tick-tock: Setting NTP server 0 to time.aws.com
2025-05-27 21:27:01.951	tick-tock	I (17793) tick-tock: Setting NTP server 1 to time.belnet.be
2025-05-27 21:27:01.957	tick-tock	I (17793) tick-tock: Setting NTP server 2 to be.pool.ntp.org
2025-05-27 21:27:01.962	tick-tock	I (17803) tick-tock: Initializing SNTP
2025-05-27 21:27:02.952	tick-tock	I (18803) tick-tock: Network is online, connecting to SNTP server.
2025-05-27 21:27:06.151	tick-tock	I (22003) tick-tock: NTP synced - time is 2025-05-27T21:27:06Z
2025-05-27 21:27:19.533	fod-query	E (35373) fod-query: Failed to load "client_cert"
2025-05-27 21:27:19.545	fod-query	E (35383) fod-query: Failed to load "trust_cert"
2025-05-27 21:27:19.556	fod-query	E (35393) fod-query: Failed to load "fdm_lock"
2025-05-27 21:27:19.561	fod-query	E (35403) fod-query: Failed to load "params"
2025-05-27 21:27:19.573	fod-query	E (35413) fod-query: Failed to load "vat_rate"
2025-05-27 21:27:19.589	fod-query	E (35423) fod-query: Failed to load "pos_allowlist"
2025-05-27 21:27:19.595	fod-query	E (35433) fod-query: Failed to load "urls"
2025-05-27 21:27:19.606	fod-query	I (35443) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_INIT
2025-05-27 21:27:20.745	fod-http	W (36583) fod-http: JWT: eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4MzgxMjQwLCJmZG1JZCI6IkNCWDAxMDAwMDAxIn0.FYWHLWVsYSVR8livxoPPTdKL1Meg9E5pBNmgHNFOzmOFkD_XfqGDBI6qXhi0_lTtZ8SRt5AnD21wANKF7oMlvA
2025-05-27 21:27:20.751	fod-query	I (36593) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-05-27 21:27:20.764	fod-reg	I (36593) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_PAUSED
2025-05-27 21:27:21.568	fod-query	I (37423) fod-query: Init - HTTP status is OK
2025-05-27 21:27:21.575	fod-query	I (37423) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_INIT_PROCESS
2025-05-27 21:27:22.053	fod-query	I (37903) fod-query: Claim certificate chain is valid
2025-05-27 21:27:22.640	fod-query	I (38493) fod-query: Digital signature verification passed
2025-05-27 21:27:23.789	fod-query	I (39643) fod-query: Action "SET_CLIENT_CERT" success
2025-05-27 21:27:23.877	fod-query	I (39723) fod-query: State: FOD_QUERY_STATE_INIT_PROCESS -> FOD_QUERY_STATE_WORK
2025-05-27 21:27:24.869	fod-config	I (40723) fod-config: FDM lock status: unlocked
2025-05-27 21:27:24.884	fod-query	I (40723) fod-query: Action "SET_FDM_LOCK" success
2025-05-27 21:27:26.025	fod-query	I (41863) fod-query: Action "SET_PARAMS" success
2025-05-27 21:27:27.134	fod-query	I (42973) fod-query: Action "SET_VAT_RATES" success
2025-05-27 21:27:28.206	fod-query	I (44043) fod-query: Action "SET_POS_ALLOWLIST" success
2025-05-27 21:27:29.282	fod-query	I (45133) fod-query: Action "SET_TRUST_CERT" success
2025-05-27 21:27:30.411	tick-tock	I (46263) tick-tock: Setting NTP server 1 to time.belnet.com
2025-05-27 21:27:30.577	fod-query	I (46423) fod-query: Action "SET_URLS" success
2025-05-27 21:27:30.739	fod-query	W (46593) fod-query: All init items processed successfully
2025-05-27 21:27:30.874	fod-query	I (46723) fod-query: State: FOD_QUERY_STATE_WORK -> FOD_QUERY_STATE_IDLE
2025-05-27 21:27:30.881	fod-reg	I (46723) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_IDLE
2025-05-27 21:27:30.881	fod-reg	I (46723) fod-reg: NOP
2025-05-27 21:27:31.873	fod-query	I (47723) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_QUERY
2025-05-27 21:27:31.878	fod-query	I (47723) fod-query: State: FOD_QUERY_STATE_QUERY -> FOD_QUERY_STATE_BUSY
2025-05-27 21:27:31.884	fod-reg	I (47723) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_PAUSED
2025-05-27 21:27:32.394	fod-reg	I (48243) fod-reg: [WS_NOP] HTTP callback type[2] status[200] response[len[3]]
2025-05-27 21:27:33.104	tick-tock	I (48953) tick-tock: NTP synced - time is 2025-05-27T21:27:33Z
2025-05-27 21:27:33.160	fod-query	I (49013) fod-query: Query - HTTP status is OK
2025-05-27 21:27:33.168	fod-query	I (49013) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_QUERY_PROCESS
2025-05-27 21:27:33.867	fod-query	I (49723) fod-query: Processing 0 actions
2025-05-27 21:27:33.874	fod-query	I (49723) fod-query: State: FOD_QUERY_STATE_QUERY_PROCESS -> FOD_QUERY_STATE_WORK
2025-05-27 21:27:34.955	fod-query	W (50803) fod-query: All init items processed successfully
2025-05-27 21:27:34.966	fod-query	I (50803) fod-query: State: FOD_QUERY_STATE_WORK -> FOD_QUERY_STATE_IDLE
2025-05-27 21:27:34.970	fod-reg	I (50803) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_IDLE

1. Groen: NTP tijd synchronisatie
2. Rood: De checkbox rapporteert dat er geen configuratie gevonden kan worden.
3. Blauw: Genereren van de JWT-token
4. Paars: Verwerken van de response
5. Donkerblauw: na ws_init een ws_query call (0 actions werden gereplied)

Ontleden JWT token:

token:

eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4MzgxMjQwLCJmZG1JZCI6IkNCWDAxMDAwMDAxIn0.FYWHLWVsYSVR8livxoPPTdKL1Meg9E5pBNmgHNFOzmOFkD_XfqGDBI6qXhi0_lTtZ8SRt5AnD21wANKF7oMlvA

JWT-header:

{
  "alg": "ES256",
  "typ": "JWT"
}

JWT-payload

{
  "sub": "init",
  "iat": 1748381240,
  "fdmId": "CBX01000001"
}

Verwerken response

Alle ontvangen acties (GraphQL mutations) werden succesvol verwekt.

Door de filter is het niet zichtbaar in de logs

Bij het verwerken van een actie zal de checkbox meteen rapporteren als die al dan niet gelukt is. De bovenstaande logs tonen het niet door de filter maar onderstaande tonen aan dat elke response op een actie mislukt doordat er nog geen trust certificaat geïnstalleerd is

2025-05-27 21:27:26.175	http	E (42013) http: HTTP_EVENT_ERROR
2025-05-27 21:27:26.171	HTTP_CLIENT	E (42013) HTTP_CLIENT: Connection failed, sock < 0
2025-05-27 21:27:26.171	transport_base	E (42003) transport_base: Failed to open a new connection
2025-05-27 21:27:26.165	esp-tls	E (42003) esp-tls: Failed to open new connection
2025-05-27 21:27:26.160	esp-tls	E (42003) esp-tls: create_ssl_handle failed
2025-05-27 21:27:26.154	esp-tls-mbedtls	E (41993) esp-tls-mbedtls: Failed to set client configurations, returned [0x8017] (ESP_ERR_MBEDTLS_SSL_SETUP_FAILED)
2025-05-27 21:27:26.143	esp-tls-mbedtls	E (41993) esp-tls-mbedtls: No server verification option set in esp_tls_cfg_t structure. Check esp_tls API reference
2025-05-27 21:27:26.111	http	I (41963) http: Received http request to https://secure.acc.gks2-0.be/business/query/success
2025-05-27 21:27:26.025	fod-query

Het betreffende failed request rapport:

2025-05-27T21:27:26Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Tue, 27 May 2025 21:27:26 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-05-27T21:27:21.344Z","operationType":"SET_PARAMS","result":{"data":{"setParams":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-05-27T21:27:25Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 500

Eenmaal het trust - certificaat gezet werd slaagde de respnonse bvb:

tijd: 2025-05-27T21:27:29Z
Request POST https://secure.acc.gks2-0.be/business/query/success
Request header: accept: application/json Content-Type: application/json Date: Tue, 27 May 2025 21:27:29 GMT
Request payload: {"actionId":"2024-01-06T16:03:23.004Z","messageDateTimeEcho":"2025-05-27T21:27:21.352Z","operationType":"SET_TRUST_CERT","result":{"data":{"setTrustCert":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-05-27T21:27:29Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Response HTTP status code: Reply 200
Response header: x-amzn-RequestId:9ad6a8ed-fb83-4dcb-99b8-1894bece5746x-amz-apigw-id:LPwqYFpAFiAFbkA=X-Amzn-Trace-Id:Root=1-68362e42-c78fc3b809d29e8391cbff61content-type:application/jsoncontent-length:0date:Tue, 27 May 2025 21:27:29 GMT

Ter volldigheid dit was het resultaat van de gezete parameters:

2025-05-27 21:27:23.144	fdm-config	I (38993) fdm-config: Client certificate set
2025-05-27 21:27:23.149	fdm-config	I (38993) fdm-config: SN: 323817399783284300501404804324502805525198389103
2025-05-27 21:27:23.156	fdm-config	I (38993) fdm-config: Expiry: 2026-02-17T22:02:21Z
2025-05-27 21:27:24.875	fdm-config	W (40723) fdm-config: FDM lock: false
2025-05-27 21:27:24.880	fdm-config	W (40723) fdm-config: FDM config params not initialized: maxBuffer
2025-05-27 21:27:25.923	fdm-config	I (41773) fdm-config: FDM configuration parameters set
2025-05-27 21:27:25.929	fdm-config	I (41773) fdm-config: Version: 2025-04-17T13:52:05Z
2025-05-27 21:27:25.934	fdm-config	I (41773) fdm-config: Init Interval: 345600
2025-05-27 21:27:25.940	fdm-config	I (41773) fdm-config: Nop Interval: 21600
2025-05-27 21:27:25.940	fdm-config	I (41783) fdm-config: Max Buffer: 100
2025-05-27 21:27:25.945	fdm-config	I (41783) fdm-config: Query Interval: 1800
2025-05-27 21:27:25.951	fdm-config	I (41793) fdm-config: Retry Intervals: 7
2025-05-27 21:27:25.951	fdm-config	I (41793) fdm-config: 0: 5
2025-05-27 21:27:25.957	fdm-config	I (41793) fdm-config: 1: 60
2025-05-27 21:27:25.957	fdm-config	I (41803) fdm-config: 2: 300
2025-05-27 21:27:25.962	fdm-config	I (41803) fdm-config: 3: 300
2025-05-27 21:27:25.962	fdm-config	I (41803) fdm-config: 4: 300
2025-05-27 21:27:25.967	fdm-config	I (41803) fdm-config: 5: 3600
2025-05-27 21:27:25.968	fdm-config	I (41813) fdm-config: 6: 10800
2025-05-27 21:27:25.973	fdm-config	I (41813) fdm-config: Retry Intervals Init: 7
2025-05-27 21:27:25.979	fdm-config	I (41813) fdm-config: 0: 5
2025-05-27 21:27:25.979	fdm-config	I (41823) fdm-config: 1: 60
2025-05-27 21:27:25.984	fdm-config	I (41823) fdm-config: 2: 300
2025-05-27 21:27:25.984	fdm-config	I (41823) fdm-config: 3: 300
2025-05-27 21:27:25.990	fdm-config	I (41833) fdm-config: 4: 300
2025-05-27 21:27:25.990	fdm-config	I (41833) fdm-config: 5: 3600
2025-05-27 21:27:25.995	fdm-config	I (41833) fdm-config: 6: 10800
2025-05-27 21:27:26.001	fdm-config	I (41843) fdm-config: Max Msg Size: 256
2025-05-27 21:27:26.001	fdm-config	I (41843) fdm-config: Postpone: false
2025-05-27 21:27:26.006	fdm-config	I (41843) fdm-config: Default Max Calls: 0
2025-05-27 21:27:26.012	fdm-config	I (41853) fdm-config: Max Calls:
2025-05-27 21:27:26.012	fdm-config	I (41853) fdm-config: Footer:
2025-05-27 21:27:26.017	fdm-config	I (41853) fdm-config: - FPS FIN Footer 1
2025-05-27 21:27:26.023	fdm-config	I (41863) fdm-config: - ParamsVerion: 2025-04-17T13:52:05Z
2025-05-27 21:27:27.111	fdm-config	I (42963) fdm-config: VAT rates set:
2025-05-27 21:27:27.117	fdm-config	I (42963) fdm-config: - 0: 21.000000, 0
2025-05-27 21:27:27.117	fdm-config	I (42963) fdm-config: - 1: 12.000000, 0
2025-05-27 21:27:27.122	fdm-config	I (42963) fdm-config: - 2: 6.000000, 0
2025-05-27 21:27:27.128	fdm-config	I (42963) fdm-config: - 3: 0.000000, 0
2025-05-27 21:27:27.128	fdm-config	I (42973) fdm-config: - 4: 0.000000, 1
2025-05-27 21:27:28.190	fdm-config	I (44043) fdm-config: Pos allowlist set to:
2025-05-27 21:27:28.195	fdm-config	I (44043) fdm-config: -CPOS0031234567
2025-05-27 21:27:28.196	fdm-config	I (44043) fdm-config: -CPOS0031234568
2025-05-27 21:27:28.201	fdm-config	I (44043) fdm-config: -CFOD0010000100
2025-05-27 21:27:30.417	fdm-config	I (46263) fdm-config: NTP servers changed, saving to FS
2025-05-27 21:27:30.541	fdm-config	I (46393) fdm-config: New URLs set:
2025-05-27 21:27:30.546	fdm-config	I (46393) fdm-config: REG: https://secure.acc.gks2-0.be/business/reg
2025-05-27 21:27:30.552	fdm-config	I (46393) fdm-config: NOP: https://secure.acc.gks2-0.be/business/reg
2025-05-27 21:27:30.558	fdm-config	I (46393) fdm-config: INIT: https://acc.gks2-0.be/public/init
2025-05-27 21:27:30.568	fdm-config	I (46403) fdm-config: QUERY: https://secure.acc.gks2-0.be/business/query
2025-05-27 21:27:30.569	fdm-config	I (46413) fdm-config: NTP1: time.aws.com
2025-05-27 21:27:30.574	fdm-config	I (46413) fdm-config: NTP2: time.belnet.com
2025-05-27 21:27:30.744	fdm-config	W (46593) fdm-config: FDM operational: true

NOP - operatie

De init procedure werd afgesloten met een NOP operatie

025-05-27 21:07:56.130	fod-reg	I (122022) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_IDLE
2025-05-27 21:07:56.130	fod-reg	I (122032) fod-reg: NOP
2025-05-27 21:07:57.151	fod-reg	I (123062) fod-reg: [WS_NOP] HTTP callback type[2] status[200] response[len[3]]

Regular boot

niet verzonden transactie buffer - leeg

Onderstaande log toont aan dat de Checkbox bij opstart een NOP verstuurt indien er geen niet-verzonden transacties zijn:

2025-05-28 18:22:46.727	checkbox	I (1454) checkbox: State transition: CHECKBOX_STATE_INIT_HW -> CHECKBOX_STATE_INIT_HMI
2025-05-28 18:22:46.819	checkbox	I (1564) checkbox: State transition: CHECKBOX_STATE_INIT_HMI -> CHECKBOX_STATE_INIT_FILESYSTEM
2025-05-28 18:22:49.540	checkbox	I (4284) checkbox: State transition: CHECKBOX_STATE_INIT_FILESYSTEM -> CHECKBOX_STATE_INIT_FDM_CONFIG
2025-05-28 18:22:49.879	checkbox	I (4614) checkbox: State transition: CHECKBOX_STATE_INIT_FDM_CONFIG -> CHECKBOX_STATE_INIT_NETWORK
2025-05-28 18:22:52.617	checkbox	I (7354) checkbox: State transition: CHECKBOX_STATE_INIT_NETWORK -> CHECKBOX_STATE_INIT_FDM_FS_MOUNT
2025-05-28 18:22:53.605	checkbox	I (8334) checkbox: State transition: CHECKBOX_STATE_INIT_FDM_FS_MOUNT -> CHECKBOX_STATE_INIT_WAIT_ONLINE
2025-05-28 18:22:57.310	checkbox	I (12044) checkbox: State transition: CHECKBOX_STATE_INIT_WAIT_ONLINE -> CHECKBOX_STATE_INIT_NTP
2025-05-28 18:22:57.447	tick-tock	I (12194) tick-tock: Setting system time to 1748455260
2025-05-28 18:22:57.453	tick-tock	I (12194) tick-tock: Setting NTP server 0 to time.aws.com
2025-05-28 18:22:57.458	tick-tock	I (12194) tick-tock: Setting NTP server 1 to time.belnet.com
2025-05-28 18:22:57.464	tick-tock	I (12194) tick-tock: Initializing SNTP
2025-05-28 18:22:57.475	checkbox	I (12204) checkbox: State transition: CHECKBOX_STATE_INIT_NTP -> CHECKBOX_STATE_INIT_HTTP
2025-05-28 18:22:57.573	checkbox	I (12314) checkbox: State transition: CHECKBOX_STATE_INIT_HTTP -> CHECKBOX_STATE_INIT_AC
2025-05-28 18:22:57.668	checkbox	I (12414) checkbox: State transition: CHECKBOX_STATE_INIT_AC -> CHECKBOX_STATE_INIT_TAIGER
2025-05-28 18:22:58.456	tick-tock	I (13204) tick-tock: Network is online, connecting to SNTP server.
2025-05-28 18:22:58.782	checkbox	I (13524) checkbox: State transition: CHECKBOX_STATE_INIT_TAIGER -> CHECKBOX_STATE_WAIT_TAIGER
2025-05-28 18:22:58.877	checkbox	I (13624) checkbox: Taiger API notification: TAIGER_API_NOTIFICATION_WS_CONNECTED[1]
2025-05-28 18:23:03.732	tick-tock	I (18474) tick-tock: NTP synced - time is 2025-05-28T20:23:03Z
2025-05-28 18:23:13.790	checkbox	I (28534) checkbox: State transition: CHECKBOX_STATE_WAIT_TAIGER -> CHECKBOX_STATE_INIT_WAIT_NTP_SYNC
2025-05-28 18:23:13.889	checkbox	I (28634) checkbox: State transition: CHECKBOX_STATE_INIT_WAIT_NTP_SYNC -> CHECKBOX_STATE_PROVISIONING
2025-05-28 18:23:14.450	checkbox	I (29194) checkbox: Vault state: provisioned[1] valid[1]
2025-05-28 18:23:14.455	checkbox	I (29194) checkbox: Vault provisioning successful!
2025-05-28 18:23:14.464	checkbox	I (29194) checkbox: State transition: CHECKBOX_STATE_PROVISIONING -> CHECKBOX_STATE_INIT_MDNS
2025-05-28 18:23:14.565	checkbox	I (29304) checkbox: State transition: CHECKBOX_STATE_INIT_MDNS -> CHECKBOX_STATE_INIT_FDM
2025-05-28 18:23:14.661	checkbox	I (29404) checkbox: State transition: CHECKBOX_STATE_INIT_FDM -> CHECKBOX_STATE_INIT_POS
2025-05-28 18:23:14.844	checkbox	I (29584) checkbox: State transition: CHECKBOX_STATE_INIT_POS -> CHECKBOX_STATE_INIT_FOD
2025-05-28 18:23:16.413	checkbox	I (31144) checkbox: State transition: CHECKBOX_STATE_INIT_FOD -> CHECKBOX_STATE_INIT_APPROVE_FIRMWARE
2025-05-28 18:23:16.510	checkbox	I (31254) checkbox: Filesystem notification: FILE_MANAGER_NOTIFICATION_PLENTY_OF_SPACE[2]
2025-05-28 18:23:16.517	checkbox	W (31254) checkbox: Firmware upgrade verify pending!
2025-05-28 18:23:16.560	checkbox	I (31304) checkbox: State transition: CHECKBOX_STATE_INIT_APPROVE_FIRMWARE -> CHECKBOX_STATE_INIT_DONE
2025-05-28 18:23:16.669	checkbox	I (31404) checkbox: State transition: CHECKBOX_STATE_INIT_DONE -> CHECKBOX_STATE_OPERATIONAL
2025-05-28 18:23:17.394	fod-reg	I (32144) fod-reg: Startup state
2025-05-28 18:23:17.400	fod-reg	I (32144) fod-reg: No unsent events found, sending NOP
2025-05-28 18:23:17.400	fod-reg	I (32144) fod-reg: [NOP] Executing
2025-05-28 18:23:17.409	fod-reg	I (32144) fod-reg: State transition from FOD_REG_STATE_BOOT to FOD_REG_STATE_IDLE
2025-05-28 18:23:18.321	fod-reg	I (33064) fod-reg: [WS_NOP] HTTP callback type[2] status[200] response[len[3]]
2025-05-28 18:24:38.536	fod-reg	I (113274) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-05-28 18:24:39.426	fod-reg	I (114174) fod-reg: Collecting items until 262144 bytes

1. Groen: NTP tijd synchronisatie
2. Blauw: Valideer of er niet-verzonden transacties zijn, zoniet dan stuur een NOP
3. Paars: Versturen van NOP operatie succesvol

Het failed-request rapport (met geslaagde call):

2025-05-28T18:23:17Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:f1eac004-eaa9-4343-8f03-8caf4c700c01x-amz-apigw-id:LSonhEm0FiAFbtQ=X-Amzn-Trace-Id:Root=1-68375496-d5c5fc2c1b9d485d67d8ade7content-type:application/jsoncontent-length:3date:Wed, 28 May 2025 18:23:17 GMT
{ }

niet verzonden transactie buffer - niet leeg

Voorafgaand was de Checkbox belast met het ondertekenen van binnenkomende POS-transacties via de /graphql-endpoint. Tijdens de herstart bevatte de Checkbox een buffer met nog niet verzonden transacties. In de onderstaande log verwachten we dat de Checkbox, in plaats van een NOP te versturen, begint met het ophalen en verzenden van de transacties uit deze buffer.

2025-05-28 18:25:14.795	checkbox	I (1425) checkbox: State transition: CHECKBOX_STATE_INIT_HW -> CHECKBOX_STATE_INIT_HMI
2025-05-28 18:25:14.887	checkbox	I (1535) checkbox: State transition: CHECKBOX_STATE_INIT_HMI -> CHECKBOX_STATE_INIT_FILESYSTEM
2025-05-28 18:25:17.603	checkbox	I (4245) checkbox: State transition: CHECKBOX_STATE_INIT_FILESYSTEM -> CHECKBOX_STATE_INIT_FDM_CONFIG
2025-05-28 18:25:17.937	checkbox	I (4575) checkbox: State transition: CHECKBOX_STATE_INIT_FDM_CONFIG -> CHECKBOX_STATE_INIT_NETWORK
2025-05-28 18:25:20.675	checkbox	I (7315) checkbox: State transition: CHECKBOX_STATE_INIT_NETWORK -> CHECKBOX_STATE_INIT_FDM_FS_MOUNT
2025-05-28 18:25:22.110	checkbox	I (8745) checkbox: State transition: CHECKBOX_STATE_INIT_FDM_FS_MOUNT -> CHECKBOX_STATE_INIT_WAIT_ONLINE
2025-05-28 18:25:25.407	checkbox	I (12055) checkbox: State transition: CHECKBOX_STATE_INIT_WAIT_ONLINE -> CHECKBOX_STATE_INIT_NTP
2025-05-28 18:25:25.555	tick-tock	I (12205) tick-tock: Setting system time to 1748456697
2025-05-28 18:25:25.560	tick-tock	I (12205) tick-tock: Setting NTP server 0 to time.aws.com
2025-05-28 18:25:25.566	tick-tock	I (12205) tick-tock: Setting NTP server 1 to time.belnet.com
2025-05-28 18:25:25.571	tick-tock	I (12205) tick-tock: Initializing SNTP
2025-05-28 18:25:25.583	checkbox	I (12215) checkbox: State transition: CHECKBOX_STATE_INIT_NTP -> CHECKBOX_STATE_INIT_HTTP
2025-05-28 18:25:25.681	checkbox	I (12325) checkbox: State transition: CHECKBOX_STATE_INIT_HTTP -> CHECKBOX_STATE_INIT_AC
2025-05-28 18:25:25.776	checkbox	I (12425) checkbox: State transition: CHECKBOX_STATE_INIT_AC -> CHECKBOX_STATE_INIT_TAIGER
2025-05-28 18:25:26.567	tick-tock	I (13215) tick-tock: Network is online, connecting to SNTP server.
2025-05-28 18:25:26.890	checkbox	I (13535) checkbox: State transition: CHECKBOX_STATE_INIT_TAIGER -> CHECKBOX_STATE_WAIT_TAIGER
2025-05-28 18:25:26.985	checkbox	I (13635) checkbox: Taiger API notification: TAIGER_API_NOTIFICATION_WS_CONNECTED[1]
2025-05-28 18:25:31.461	tick-tock	I (18105) tick-tock: NTP synced - time is 2025-05-28T20:25:31Z
2025-05-28 18:25:41.887	checkbox	I (28535) checkbox: State transition: CHECKBOX_STATE_WAIT_TAIGER -> CHECKBOX_STATE_INIT_WAIT_NTP_SYNC
2025-05-28 18:25:41.987	checkbox	I (28635) checkbox: State transition: CHECKBOX_STATE_INIT_WAIT_NTP_SYNC -> CHECKBOX_STATE_PROVISIONING
2025-05-28 18:25:43.506	checkbox	I (30155) checkbox: Vault state: provisioned[1] valid[1]
2025-05-28 18:25:43.511	checkbox	I (30155) checkbox: Vault provisioning successful!
2025-05-28 18:25:43.520	checkbox	I (30155) checkbox: State transition: CHECKBOX_STATE_PROVISIONING -> CHECKBOX_STATE_INIT_MDNS
2025-05-28 18:25:43.622	checkbox	I (30265) checkbox: State transition: CHECKBOX_STATE_INIT_MDNS -> CHECKBOX_STATE_INIT_FDM
2025-05-28 18:25:44.931	checkbox	I (31575) checkbox: State transition: CHECKBOX_STATE_INIT_FDM -> CHECKBOX_STATE_INIT_POS
2025-05-28 18:25:45.115	checkbox	I (31765) checkbox: State transition: CHECKBOX_STATE_INIT_POS -> CHECKBOX_STATE_INIT_FOD
2025-05-28 18:25:46.633	checkbox	I (33265) checkbox: State transition: CHECKBOX_STATE_INIT_FOD -> CHECKBOX_STATE_INIT_APPROVE_FIRMWARE
2025-05-28 18:25:46.727	checkbox	I (33375) checkbox: Filesystem notification: FILE_MANAGER_NOTIFICATION_PLENTY_OF_SPACE[2]
2025-05-28 18:25:46.739	checkbox	I (33375) checkbox: State transition: CHECKBOX_STATE_INIT_APPROVE_FIRMWARE -> CHECKBOX_STATE_INIT_DONE
2025-05-28 18:25:46.846	checkbox	I (33485) checkbox: State transition: CHECKBOX_STATE_INIT_DONE -> CHECKBOX_STATE_OPERATIONAL
2025-05-28 18:25:47.612	fod-reg	I (34265) fod-reg: Startup state
2025-05-28 18:25:47.617	fod-reg	I (34265) fod-reg: Unsent events found, starting to populate outbox
2025-05-28 18:25:47.622	fod-reg	I (34265) fod-reg: State transition from FOD_REG_STATE_BOOT to FOD_REG_STATE_POPULATING
2025-05-28 18:25:48.613	fod-reg	I (35265) fod-reg: Collecting items until 262144 bytes
2025-05-28 18:25:48.666	fod-reg	I (35315) fod-reg: Processing unsent business event uid[2578012444] is_valid[1] len[1955]
2025-05-28 18:25:48.714	fod-reg	I (35355) fod-reg: Processing unsent business event uid[3114032162] is_valid[1] len[1754]
2025-05-28 18:25:48.774	fod-reg	I (35415) fod-reg: Processing unsent business event uid[1195106799] is_valid[1] len[2197]
2025-05-28 18:25:48.821	fod-reg	I (35465) fod-reg: Processing unsent business event uid[3816669867] is_valid[1] len[1451]
2025-05-28 18:25:48.828	fod-reg	I (35465) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-05-28 18:25:49.812	fod-reg	I (36465) fod-reg: Collecting items until 262144 bytes
2025-05-28 18:25:49.817	fod-reg	I (36465) fod-reg: - Postpone is not enabled, proceeding ...
2025-05-28 18:25:49.823	fod-reg	I (36465) fod-reg: Ready to register unsent transactions
2025-05-28 18:25:49.828	fod-reg	I (36465) fod-reg: Messages remaining in unsent queue: 4
2025-05-28 18:25:49.834	fod-reg	I (36465) fod-reg: Bundle for FOD assembled items[4] size[7/256kB]
2025-05-28 18:25:49.842	fod-reg	I (36475) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-05-28 18:25:50.838	fod-reg	I (37485) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-05-28 18:25:51.641	fod-reg	I (38285) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-05-28 18:25:51.646	fod-reg	I (38285) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-05-28 18:25:51.833	fod-reg	I (38485) fod-reg: POS events sent, marking as sent
2025-05-28 18:25:52.572	fod-reg	I (39215) fod-reg: State transition from FOD_REG_STATE_SENT to FOD_REG_STATE_IDLE

1. Groen: NTP tijd synchronisatie
2. Blauw: Valideer of er niet-verzonden transacties zijn, start ophalen van niet verzonden transacties
3. Paars: Bundel en verstuur de niet verzonden transacties

Het (niet) failed-request rapport:

2025-05-28T18:25:50Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":4,"fdmId":"CBX01000001","events": [{"enrichedEventData":{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":6,"deviceId":"1631678d-7a85-4ac3-b296-bb4565e873fe","employeeId":"84022899837","estNo":"2000000042","eventCounter":25310,"eventLabel":"N","eventOperation":"SALE","fdmDateTime":"2025-05-28T18:24:56.257Z","fdmId":"CBX01000001","fdmRefs":[{"eventCounter":1000,"eventLabel":"N","fdmDateTime":"2025-05-28T18:24:56Z","fdmId":"FOD01000001","totalCounter":1200}],"fdmSwVersion":"0.1.4+dev+","financials":[{"amount":52,"amountType":"PAYMENT","drawer":{},"id":"1","inputMethod":"MANUAL","name":"CONTANT","type":"CASH"}],"language":"NL","posDateTime":"2025-05-28T18:24:56Z","posFiscalTicketNo":1001,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-2-DIN","ticketMedium":"PAPER","totalCounter":122346,"transaction":{"transactionLines":[{"lineTotal":-24,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"10","departmentName":"Aperitifs","negQuantityReason":"REFUND","productId":"10006","productName":"Dry Martini","quantity":-2,"quantityType":"PIECE","unitPrice":12,"vats":[{"label":"A","price":-24,"priceChanges":[]}]},"subProducts":[]},{"lineTotal":-28,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"22","departmentName":"Main Dishes","negQuantityReason":"REFUND","productId":"22001","productName":"Burger of the Chef","quantity":-1,"quantityType":"PIECE","unitPrice":28,"vats":[{"label":"B","price":-28,"priceChanges":[]}]},"subProducts":[]}],"transactionTotal":-52},"vatCalc":[{"label":"A","outOfScope":false,"rate":21,"taxableAmount":-19.83,"totalAmount":-24,"vatAmount":-4.17},{"label":"B","outOfScope":false,"rate":12,"taxableAmount":-25,"totalAmount":-28,"vatAmount":-3}],"vatNo":"BE0000000097"},"digitalSignature":"MEUCIF8qyOQk6t8pD4aytHhbI70Uspw9zNliTxA7yM+idge1AiEAjTSO0R80rcgq+yiQI5g6Ca2X/UCvMfXP/yRhA/fM3DU=","shortSignature":"c7cf764a9be1b9eec1de38a1a029e320b83ee564","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":7,"deviceId":"1631678d-7a85-4ac3-b296-bb4565e873fe","employeeId":"84022899837","estNo":"2000000042","eventCounter":25311,"eventLabel":"N","eventOperation":"SALE","fdmDateTime":"2025-05-28T18:24:57.208Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+dev+","financials":[{"amount":52,"amountType":"PAYMENT","drawer":{},"id":"1","inputMethod":"MANUAL","name":"CONTANT","type":"CASH"}],"language":"NL","posDateTime":"2025-05-28T18:24:57Z","posFiscalTicketNo":6587,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-2-DIN","ticketMedium":"PAPER","totalCounter":122347,"transaction":{"transactionLines":[{"lineTotal":24,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"10","departmentName":"Aperitifs","productId":"10006","productName":"Dry Martini","quantity":2,"quantityType":"PIECE","unitPrice":12,"vats":[{"label":"A","price":24,"priceChanges":[]}]},"subProducts":[]},{"lineTotal":28,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"22","departmentName":"Main Dishes","productId":"22001","productName":"Burger of the Chef","quantity":1,"quantityType":"PIECE","unitPrice":28,"vats":[{"label":"B","price":28,"priceChanges":[]}]},"subProducts":[]}],"transactionTotal":52},"vatCalc":[{"label":"A","outOfScope":false,"rate":21,"taxableAmount":19.83,"totalAmount":24,"vatAmount":4.17},{"label":"B","outOfScope":false,"rate":12,"taxableAmount":25,"totalAmount":28,"vatAmount":3}],"vatNo":"BE0000000097"},"digitalSignature":"MEQCIH1KSW5bBXQzrbFKGmWv9ZufAQCNc033YluSRvGmYzbjAiAM2UbRTZJak4tTr+xwUFhOKCQSpIDQwjky0N79tS+fwA==","shortSignature":"9a3e1b84eb643e228d3bb11ae6102498b0cb31c8","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":8,"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","employeeId":"84022899837","estNo":"2000000042","eventCounter":25312,"eventLabel":"N","eventOperation":"SALE","fdmDateTime":"2025-05-28T18:24:57.612Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+dev+","financials":[{"amount":1.04,"amountType":"PAYMENT","drawer":{},"id":"1","inputMethod":"MANUAL","name":"CONTANT","type":"CASH"},{"amount":0.01,"amountType":"TIP","drawer":{},"id":"1","inputMethod":"MANUAL","name":"CONTANT","type":"CASH"}],"language":"NL","posDateTime":"2025-05-28T18:24:57Z","posFiscalTicketNo":6603,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","ticketMedium":"PAPER","totalCounter":122348,"transaction":{"transactionLines":[{"lineTotal":-12,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"10","departmentName":"Aperitifs","negQuantityReason":"REFUND","productId":"10006","productName":"Dry Martini","quantity":-1,"quantityType":"PIECE","unitPrice":12,"vats":[{"label":"A","price":-12,"priceChanges":[]}]},"subProducts":[]},{"lineTotal":3.04,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"10","departmentName":"Aperitifs","productId":"12009","productName":"Coca Cola","quantity":1,"quantityType":"PIECE","unitPrice":3.04,"vats":[{"label":"A","price":3.04,"priceChanges":[]}]},"subProducts":[]},{"lineTotal":11.52,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"25","departmentName":"Desserts","productId":"25008","productName":"Crème Brûlée","quantity":1,"quantityType":"PIECE","unitPrice":11.52,"vats":[{"label":"B","price":11.52,"priceChanges":[]}]},"subProducts":[]}],"transactionTotal":2.56},"vatCalc":[{"label":"A","outOfScope":false,"rate":21,"taxableAmount":-7.4,"totalAmount":-8.96,"vatAmount":-1.56},{"label":"B","outOfScope":false,"rate":12,"taxableAmount":10.29,"totalAmount":11.52,"vatAmount":1.23}],"vatNo":"BE0000000097"},"digitalSignature":"MEUCIHBZ/kFbitGnnTDMO7Aq0Zd6qoVazce6Ys+1Gm0baMAeAiEAhdYQCWaGEKtQYVq7QZfQReLJscGKstRa8PNlXDuUTTw=","shortSignature":"906dd483756d8dfa147ed6e82b104ad3184e09bc","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":9,"costCenter":{"id":"T1","reference":"O158","type":"TABLE"},"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","employeeId":"75061189702","estNo":"2000000042","eventCounter":18712,"eventLabel":"P","eventOperation":"ORDER","fdmDateTime":"2025-05-28T18:24:58.550Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+dev+","language":"NL","posDateTime":"2025-05-28T18:24:58Z","posFiscalTicketNo":1003,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","ticketMedium":"PAPER","totalCounter":122349,"transaction":{"transactionLines":[{"lineTotal":24,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"10","departmentName":"Aperitifs","productId":"10006","productName":"Dry Martini","quantity":2,"quantityType":"PIECE","unitPrice":12,"vats":[{"label":"A","price":24,"priceChanges":[]}]},"subProducts":[]},{"lineTotal":13.36,"lineType":"SINGLE_PRODUCT","mainProduct":{"departmentId":"22","departmentName":"Main Dishes","productId":"28007","productName":"Tapas variation","quantity":4,"quantityType":"PIECE","unitPrice":3.34,"vats":[{"label":"B","price":13.36,"priceChanges":[]}]},"subProducts":[]}],"transactionTotal":37.36},"vatNo":"BE0000000097"},"digitalSignature":"MEQCIGALKXdrfkStGFsKdh194l27j/gCtnPf3IqZSvQpYtLPAiA2SylQeoY/PHHEZzyVOdPVRyOTqPumXkDipiIr6oP8FQ==","shortSignature":"","fdmLocalisation":{}}]}
Reply 200
x-amzn-RequestId:38bd01ea-96bb-4fd7-be21-5b037e738c47x-amz-apigw-id:LSo_eF65liAFhaw=X-Amzn-Trace-Id:Root=1-6837552f-1861064ff2c3229b78454db7content-type:application/jsoncontent-length:3date:Wed, 28 May 2025 18:25:50 GMT
{ }

Ontvangen en verzenden van business transacties

Buffering

Bestandsstructuur met Bucket-systeem (FAT32)

Dit systeem implementeert een persistente, bestand-gebaseerde FIFO-structuur op een FAT32-bestandssysteem, geschikt voor embedded toepassingen zoals ESP32.
Het systeem is ontworpen om:

• Grote hoeveelheden events te bufferen op SD-kaart
• Efficiënte toegang te bieden met beperkte resources
• FIFO-queue gedrag te combineren met robuuste opslag en herstelbaarheid

Zo zijn er 2 apart beheerde data structuren, voor de niet-verzonden en de verzonden transacties.

De kern van het systeem is het indexbestand, dat de status van de FIFO bijhoudt.
Elke entry in dit bestand stelt een event voor, en bevat:

Veld	Beschrijving
Timestamp	Tijdstip van het event
UID	Unieke identifier voor het event
X-bytes metadata	Event-specifieke informatie (bv. type, flags, …)
Pad naar datafile	Relatief pad naar bijhorende datafile
Data length	Lengte van de payload in de datafile
MD5 hash datafile	Verificatiewaarde van de eventdata
MD5 hash index entry	Verificatiewaarde van de gehele index entry

Daarnaast houdt het indexbestand ook bij:

• De head en tail van de queue
• maximum fifo elementen

Om bestandstoegang op FAT32 efficiënt te houden, worden datafiles georganiseerd in een hiërarchisch bucket-systeem met twee niveaus:

/<base_path>/<bucket>/<subdir>/F<index>.DAT

Niveau	Aantal	Naamformaat	8.3-conform?	Opmerking
base_path				Naam van fifo (ubt / sbt)
Bucket (1e)	max. 100	00 – 99	Ja	Verdeelt in blokken van 10.000 files
Subdir (2e)	max. 100	00 – 99	Ja	max. 100 files per directory
Bestand	per event	F<index>.DAT	Ja	Bestandsnaam is globaal uniek waar index de head van de FIFO is

Dit beperkt:

• Het aantal bestanden per directory (max 100)
• Het aantal directories per parent directory (max 100)
• Lookup-tijd, RAM-verbruik en SD-kaart latentie

Het systeem combineert een persistente FIFO-queue op bestandssysteemniveau met een geoptimaliseerde FAT32-directorystructuur, waarbij het indexbestand elk event beschrijft aan de hand van tijd, identiteit, pad, lengte, metadata en checksums. Dankzij het tweelaags bucket-systeem blijven toegangstijden laag, zelfs bij zeer grote aantallen events.

Bewijsstukken

de voorrang voor het versturen van de oudste transacties

2025-05-28 18:25:51.833	fod-reg	I (38485) fod-reg: POS events sent, marking as sent
2025-05-28 18:25:51.870	file-fifo	I (38515) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262115.dat -> /sdcard/sig/s/26/21/s262115.dat
2025-05-28 18:25:52.022	file-fifo	I (38665) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262116.dat -> /sdcard/sig/s/26/21/s262116.dat
2025-05-28 18:25:52.237	file-fifo	I (38875) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262117.dat -> /sdcard/sig/s/26/21/s262117.dat
2025-05-28 18:25:52.459	file-fifo	I (39105) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262118.dat -> /sdcard/sig/s/26/21/s262118.dat

Boven staande logs toont aan de FIFO, op basis van index nummer in bestandsnaam, van oud naar naar nieuw verwerkt (index nummers zijn oplopend dus het oudste bestand heeft het laagste index nummer)

het bufferen van de volledige business transactie

Voor debug redenen wordt er meer den enkel de enriched transactie opgeslaan:

Naam	JSON-veld	Beschrijving
request	requestData	De ontvangen request
request - timestamp	requestTime	Het tijdstip van de ontvangen request
response	resultData	Het sign-result met enkel de gevraagde velden (volgens GraphQL)
response - timestamp	resultTime	Het tijdstip van antwoorden naar POS
enriched - data	rawEnriched	Het enriched object, bestemd voor FODFIN-Cloud
Sign result	rawSignResult	Voor de afhandeling van duplicaten slaan we de volledige versie van het sign result op.
Hash key-velden	keyHash	MD5 hash van de key-velden uit de request. Bij het ontvangen van nieuwe events (binnen 10 min) wordt deze gebruikt om duplicate request te onderscheppen
Hash data-velden	dataInHash	De berkende MD5 hash van de data velden.

{
   "keyHash": "269cd47126715fb8e20741e8640dc7bc",
   "dataInHash": "89fbee8e287f31e07aa824cb69f39823",
   "eventOperation": 10,
   "requestTime": "2025-05-27T00:52:21.876Z",
   "requestData": {
      "query": "mutation SignCopy($data: CopyInput!, $training: Boolean! = false) { signCopy(data: $data, isTraining: $training) { __typename bufferCapacityUsed deviceId digitalSignature eventOperation fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } fdmSwVersion posDateTime posFiscalTicketNo posId shortSignature terminalId vatCalc { __typename label outOfScope rate taxableAmount totalAmount vatAmount } verificationUrl warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
      "operationName": "SignCopy",
      "variables": {
         "data": {
            "fdmRef": {
               "fdmId": "FOD01000001",
               "fdmDateTime": "2024-07-09T09:48:04Z",
               "eventLabel": "N",
               "eventCounter": 16,
               "totalCounter": 52
            },
            "language": "NL",
            "vatNo": "BE0000000097",
            "estNo": "2000000042",
            "posId": "CPOS0031234567",
            "posFiscalTicketNo": 1013,
            "posDateTime": "2025-05-27T00:52:21Z",
            "posSwVersion": "1.8.3",
            "terminalId": "TER-1-BAR",
            "deviceId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c",
            "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
            "bookingDate": "2024-07-30",
            "ticketMedium": "PAPER",
            "employeeId": "75061189702"
         },
         "training": false
      }
   },
   "resultTime": "2025-05-27T00:52:21.898Z",
   "resultData": {
      "data": {
         "signCopy": {
            "__typename": "SignResult",
            "bufferCapacityUsed": 1.9,
            "deviceId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c",
            "digitalSignature": "YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==",
            "eventOperation": "COPY",
            "fdmRef": {
               "__typename": "FdmReference",
               "fdmId": "CBX01000019",
               "fdmDateTime": "2025-05-27T00:52:21.876Z",
               "eventLabel": "C",
               "eventCounter": 1005,
               "totalCounter": 10052
            },
            "fdmSwVersion": "0.1.5-rc.2",
            "posDateTime": "2025-05-27T00:52:21Z",
            "posFiscalTicketNo": 1013,
            "posId": "CPOS0031234567",
            "shortSignature": null,
            "terminalId": "TER-1-BAR",
            "vatCalc": null,
            "verificationUrl": null,
            "warnings": null,
            "informations": null,
            "footer": []
         }
      }
   },
   "rawEnriched": {
      "enrichedEventData": {
         "bookingDate": "2024-07-30",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bufferCapacityUsed": 1.9,
         "copyOfEvent": "N",
         "deviceId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c",
         "employeeId": "75061189702",
         "estNo": "2000000042",
         "eventCounter": 1005,
         "eventLabel": "C",
         "eventOperation": "COPY",
         "fdmDateTime": "2025-05-27T00:52:21.876Z",
         "fdmId": "CBX01000019",
         "fdmRefs": [
            {
               "eventCounter": 16,
               "eventLabel": "N",
               "fdmDateTime": "2024-07-09T09:48:04Z",
               "fdmId": "FOD01000001",
               "totalCounter": 52
            }
         ],
         "fdmSwVersion": "0.1.5-rc.2",
         "language": "NL",
         "posDateTime": "2025-05-27T00:52:21Z",
         "posFiscalTicketNo": 1013,
         "posId": "CPOS0031234567",
         "posSwVersion": "1.8.3",
         "terminalId": "TER-1-BAR",
         "ticketMedium": "PAPER",
         "totalCounter": 10052,
         "vatNo": "BE0000000097"
      },
      "digitalSignature": "YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==",
      "shortSignature": "",
      "fdmLocalisation": {}
   },
   "rawSignResult": {
      "posId": "CPOS0031234567",
      "posFiscalTicketNo": 1013,
      "posDateTime": "2025-05-27T00:52:21Z",
      "terminalId": "TER-1-BAR",
      "deviceId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c",
      "eventOperation": "COPY",
      "fdmRef": {
         "fdmId": "CBX01000019",
         "fdmDateTime": "2025-05-27T00:52:21.876Z",
         "eventLabel": "C",
         "eventCounter": 1005,
         "totalCounter": 10052
      },
      "fdmSwVersion": "0.1.5-rc.2",
      "digitalSignature": "YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==",
      "bufferCapacityUsed": 1.899999976158142
   }
}

het bijhouden van de timestamp van de laatste succesvolle verzending

Uit de logs blijkt dit het laatste moment te zijn dat de Checkbox een transactie had verzonden naar FODFIN-Cloud

2025-05-28 18:25:50.838	fod-reg	I (37485) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-05-28 18:25:50.843	http	I (37485) http: Received http request to https://secure.acc.gks2-0.be/business/reg
2025-05-28 18:25:51.537	http	I (38185) http: Request to https://secure.acc.gks2-0.be/business/reg ready
2025-05-28 18:25:51.641	fod-reg	I (38285) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-05-28 18:25:51.646	fod-reg	I (38285) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-05-28 18:25:51.833	fod-reg	I (38485) fod-reg: POS events sent, marking as sent
2025-05-28 18:25:51.870	file-fifo	I (38515) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262115.dat -> /sdcard/sig/s/26/21/s262115.dat
2025-05-28 18:25:52.022	file-fifo	I (38665) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262116.dat -> /sdcard/sig/s/26/21/s262116.dat
2025-05-28 18:25:52.237	file-fifo	I (38875) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262117.dat -> /sdcard/sig/s/26/21/s262117.dat
2025-05-28 18:25:52.459	file-fifo	I (39105) file-fifo: File copy completed: /sdcard/sig/u/26/21/u262118.dat -> /sdcard/sig/s/26/21/s262118.dat

Na reboot blijkt:

2025-05-28 20:58:36.229	file-manager-local-config	I (4395) file-manager-local-config: Loading fod-config from file: /sdcard/par/lc-sa.txt
2025-05-28 20:58:36.234	fdm-config	I (4405) fdm-config: Local config loaded
2025-05-28 20:58:36.235	fdm-config	I (4405) fdm-config: NTP1: time.aws.com
2025-05-28 20:58:36.240	fdm-config	I (4405) fdm-config: NTP2: time.belnet.com
2025-05-28 20:58:36.245	fdm-config	I (4405) fdm-config: POS bearer token: Lyly0HIjourgbgFO
2025-05-28 20:58:36.246	fdm-config	I (4405) fdm-config: Status:
2025-05-28 20:58:36.251	fdm-config	I (4405) fdm-config: FDM init: false
2025-05-28 20:58:36.257	fdm-config	I (4415) fdm-config: FDM last action: 1748464293
2025-05-28 20:58:36.262	fdm-config	I (4415) fdm-config: FDM last successful transaction: 1748456751

Waar epoch tijd 1748456751staat voor 2025-05-28T18:25:51.000Z.

FDM service onderbreking

FDM-POS mismatch

2025-05-28 20:59:03.234	fod-query	I (31395) fod-query: Action "SET_POS_ALLOWLIST" success
2025-05-28 20:59:03.229	fdm-config	I (31385) fdm-config: -CFOD0010000100
2025-05-28 20:59:03.224	fdm-config	I (31385) fdm-config: -CPOS0031234568
2025-05-28 20:59:03.224	fdm-config	I (31385) fdm-config: -CPOS0031234567

Bovenstaande logging toont aan dat de volgende POS IDs toegelaten zijn CFOD0010000100, CPOS0031234568 en CPOS0031234567

• Work-in met toegelaten POS ID:

--- Request ---
{"query":"mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value
} } } footer } }","operationName":"SignWorkIn","variables":{"data":{"language":"NL","vatNo":"BE0000000097","estNo":"2000000042","posId":"CPOS0031234567","posFiscalTicketNo":1010,"posDateTime":"2025-05-28T22:02:47+00:00","posSwVersion":"1.8.3","terminalId":"POS-2-REC","deviceId":"80:1A:A6:75:66:FC","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bookingDate":"2024-10-04","ticketMedium":"NONE","employeeId":"80113078968"},"training":true}}

--- Response ---
{"data":{"signWorkIn":{"__typename":"SignResult","posId":"CPOS0031234567","posFiscalTicketNo":1010,"posDateTime":"2025-05-28T22:02:47+00:00","terminalId":"POS-2-REC","deviceId":"80:1A:A6:75:66:FC","fdmSwVersion":"0.1.4+dev+","eventOperation":"WORK_IN","digitalSignature":"MEUCIDKZEvjr41/DF0WiYnRj6kbaSHID2hlDeFFCgi1j/8hyAiEA5oAgSPUopY2AKtYbetuC4TtphTM5wqfvLUe+z4VvEt4=","bufferCapacityUsed":0,"fdmRef":{"__typename":"FdmReference","fdmId":"CBX01000001","fdmDateTime":"2025-05-28T22:02:47.184Z","eventLabel":"T","eventCounter":18164,"totalCounter":122351},"warnings":null,"informations":null,"footer":["FPS FIN Footer 1","ParamsVerion: 2025-04-17T13:52:05Z"]}}}
200
--- End of Response ---

• Work-in met toegelaten POS ID:

--- Request ---
{"query":"mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false)
{ signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }","operationName":"SignWorkIn","variables":{"data":{"language":"NL","vatNo":"BE0000000097","estNo":"2000000042","posId":"CPOS8888888888","posFiscalTicketNo":1010,"posDateTime":"2025-05-28T22:20:03+00:00","posSwVersion":"1.8.3","terminalId":"POS-2-REC","deviceId":"80:1A:A6:75:66:FC","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bookingDate":"2024-10-04","ticketMedium":"NONE","employeeId":"80113078968"},"training":true}}

--- Response ---
{"errors":[{"message":"POS is niet geregistreerd voor gebruik met deze FDM","extensions":{"category":"FDM","code":"UNKNOWN_POS","showPos":"MANDATORY"}}]}
200
--- End of Response ---

Wanneer de Checkbox een event van een POS ontvangt met een POS-ID dat niet in de POS-allowlist staat, wordt dit niet verwerkt en krijgt de afzender als respons een GraphQL-error met UNKNOWN_POS.

FDM buffer limiet

Om aan te tonen dat de warning BUFFER_NEAR_FULL geactiveerd wordt zodra de buffer voor meer dan 70 % gevuld is, en de error optreedt wanneer de buffer vol raakt, is de onderstaande configuratie gebruikt:

Init Interval: 345600
Nop Interval: 600
Max Buffer: 5
Query Interval: 1800
Retry Intervals: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Retry Intervals Init: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Max Msg Size: 256
Postpone: true
Default Max Calls: 0
Max Calls:
Footer:
  - FPS FIN Footer 1
  - ParamsVerion: 2025-04-17T13:52:05Z

Buffer < 70%

Workin request waar buffer onder 70% is

request:

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer }}",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T19:25:54+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": true
   }
}

Response:

{
   "data": {
      "signWorkIn": {
         "__typename": "SignResult",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T18:51:36+00:00",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "fdmSwVersion": "0.1.4+feat",
         "eventOperation": "WORK_IN",
         "digitalSignature": "MEYCIQD+zxl6swppPhjAWehAeA2EHyPB2fvNu9q2FMO+YHEjaQIhAJgrgWYq0WFVhZWyOsLE1CgCImumfHMOGHLbLPTSo3j9",
         "bufferCapacityUsed": 40,
         "fdmRef": {
            "__typename": "FdmReference",
            "fdmId": "CBX01000001",
            "fdmDateTime": "2025-06-01T18:51:36.681Z",
            "eventLabel": "T",
            "eventCounter": 18168,
            "totalCounter": 122355
         },
         "warnings": null,
         "informations": null,
         "footer": [
            "FPS FIN Footer 1",
            "ParamsVerion: 2025-04-17T13:52:05Z"
         ]
      }
   }
}

Buffer > 70%

Request

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T19:35:33+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": true
   }
}

Response:

{
   "data": {
      "signWorkIn": {
         "__typename": "SignResult",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T19:35:33+00:00",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "fdmSwVersion": "0.1.4+feat",
         "eventOperation": "WORK_IN",
         "digitalSignature": "MEUCIQDzkRGGCyyivLgqZRQY6BRU63PtAQNYKQDDmOoxDZsFOwIgCKp5kmiPhBbHQtZnHXafJFX14L8YX3TQzOomNnk9Xmo=",
         "bufferCapacityUsed": 80,
         "fdmRef": {
            "__typename": "FdmReference",
            "fdmId": "CBX01000001",
            "fdmDateTime": "2025-06-01T19:35:33.215Z",
            "eventLabel": "T",
            "eventCounter": 18170,
            "totalCounter": 122357
         },
         "warnings": [
            {
               "__typename": "MessageItem",
               "message": "FDM-buffergebruik overschrijdt 70 %",
               "locations": null,
               "extensions": {
                  "__typename": "ExtensionItem",
                  "category": "SPF_FOD",
                  "code": "BUFFER_NEAR_FULL",
                  "showPos": "MANDATORY",
                  "data": null
               }
            }
         ],
         "informations": null,
         "footer": [
            "FPS FIN Footer 1",
            "ParamsVerion: 2025-04-17T13:52:05Z"
         ]
      }
   }
}

Buffer == 100%

Request

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T19:36:58+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": true
   }
}

Response:

{
   "errors": [
      {
         "message": "FDM-buffer is vol",
         "extensions": {
            "category": "FDM",
            "code": "BUFFER_FULL",
            "showPos": "MANDATORY"
         }
      }
   ]
}

Dit toont aan dat de Checkbox feedback geeft over het niveau van de buffer met niet-verzonden events. Onder 70 % verschijnt er geen warning; daarboven wel, en bij 100 % volgt een GraphQL-errorresponse met de melding dat de buffer vol is.

FDM lock

Onderstaande lock configuratie werd ingeladen met datum van vandaag op 01/06

{
   "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
   "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
   "actionId": "2025-04-17T13:52:05.123Z",
   "messageDateTimeEcho": "2025-05-27T21:27:21.342Z",
   "operationType": "SET_FDM_LOCK",
   "executable": {
      "query": "mutation SetFdmLock($fdmLockFromDateList: [FdmLockInput!]!) { setFdmLock(fdmLockFromDateList: $fdmLockFromDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
      "operationName": "SetFdmLock",
      "variables": {
         "fdmLockFromDateList": [
            {
               "fdmLock": false,
               "lockReason": null,
               "fromSystemDate": "2025-01-01"
            },
            {
               "fromSystemDate": "2025-05-01",
               "fdmLock": true,
               "lockReason": [
                  {
                     "language": "EN",
                     "message": "FDM_LOCKED-EN"
                  },
                  {
                     "language": "NL",
                     "message": "FDM_LOCKED-NL"
                  },
                  {
                     "language": "FR",
                     "message": "FDM_LOCKED-FR"
                  },
                  {
                     "language": "DE",
                     "message": "FDM_LOCKED-DE"
                  }
               ]
            }
         ]
      }
   }
}

Het sturen van onderstaande Work-In sign request

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-01T20:13:13+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": true
   }
}

geeft al response:

{
   "errors": [
      {
         "message": "FDM_LOCKED-NL",
         "extensions": {
            "category": "FDM",
            "code": "FDM_LOCKED",
            "showPos": "MANDATORY"
         }
      }
   ]
}

Wanneer de Checkbox vergrendeld is, wordt er een FDM_LOCKED-error teruggegeven.

Webservices

WS_INIT

Voor de initial boot werd de call naar ws_init en het genereren van de JWT-token werd uitvoerig besproken in het het hoofdstuck FODFIN-Cloud/Booting-de-fdm.

Met geldig certificaat

Indien, ws_query voor het interval initInterval niet succesvol aangeroepen kon worden dan moet de Checkbox ws_init call uitvoeren waar de payload het serienummer van het client certificaat bevat, indien niet vervallen.

Om dit te testen werd fdmLastActions gemanipuleerd, zodoende dat de checkbox bij opstart dit zal uitvoeren.

2025-06-01 21:12:52.979	fod-query	I (32074) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_INIT
2025-06-01 21:12:53.985	fod-query	I (33084) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748812373] retryCount[0] retryInterval[600]
2025-06-01 21:12:54.143	fod-http	W (33224) fod-http: JWT: eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4ODEyMzczLCJmZG1JZCI6IkNCWDAxMDAwMDAxIiwiY2xpZW50Q2VydFNuIjoiMzIzODE3Mzk5NzgzMjg0MzAwNTAxNDA0ODA0MzI0NTAyODA1NTI1MTk4Mzg5MTAzIn0.L3m4_jk3M9f9W4Y2mMNc6by8trtojFWuka0A6437ZKsT6sq7XrVihAQxbF_zvfj2DaGAFGxnQAzAF5BTwqQdEw
2025-06-01 21:12:54.159	fod-query	I (33234) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-01 21:12:55.350	fod-query	I (34454) fod-query: Init - HTTP status is OK
2025-06-01 21:12:55.357	fod-query	I (34454) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_INIT_PROCESS
2025-06-01 21:12:56.485	fod-query	I (35584) fod-query: Claim certificate chain is valid
2025-06-01 21:12:56.779	fod-query	I (35874) fod-query: Digital signature verification passed
2025-06-01 21:12:57.106	fod-query	I (36204) fod-query: State: FOD_QUERY_STATE_INIT_PROCESS -> FOD_QUERY_STATE_WORK
2025-06-01 21:12:58.116	fod-query	I (37204) fod-query: Action "SET_FDM_LOCK" success
2025-06-01 21:12:59.319	fod-query	I (38414) fod-query: Action "SET_PARAMS" success
2025-06-01 21:13:00.479	fod-query	I (39574) fod-query: Action "SET_VAT_RATES" success
2025-06-01 21:13:01.600	fod-query	I (40694) fod-query: Action "SET_POS_ALLOWLIST" success
2025-06-01 21:13:02.737	fod-query	I (41834) fod-query: Action "SET_TRUST_CERT" success
2025-06-01 21:13:03.935	fod-query	I (43024) fod-query: Action "SET_URLS" success
2025-06-01 21:13:04.142	fod-query	W (43244) fod-query: All init items processed successfully
2025-06-01 21:13:04.251	fod-query	I (43344) fod-query: State: FOD_QUERY_STATE_WORK -> FOD_QUERY_STATE_IDLE

1. Groen: Aankondiging WS_INIT samen met de extra informatie
2. Blauw: Genereren van de JWT-token
3. Paars: Verwerken van de response

Ontleden JWT token:

token:

eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4ODEwNjQ0LCJmZG1JZCI6IkNCWDAxMDAwMDAxIiwiY2xpZW50Q2VydFNuIjoiMzIzODE3Mzk5NzgzMjg0MzAwNTAxNDA0ODA0MzI0NTAyODA1NTI1MTk4Mzg5MTAzIn0.TjmvB08-BA1OXZGVxUlGvP5UStN8jSIogGtpUyeV1ofrYOkx3Km81Nmes705_nOPpX49xC4ms3NYackdHOQv4A

JWT-header:

{
  "alg": "ES256",
  "typ": "JWT"
}

JWT-payload

{
  "sub": "init",
  "iat": 1748810644,
  "fdmId": "CBX01000001",
  "clientCertSn": "323817399783284300501404804324502805525198389103"
}

-> Het serienummer van het actieve client certificaat is toegevoegd aan aan de JWT payload

Verwerken response

Alle action item in de WS_INIT response werden succesvol verwerkt en geregistreerd via succes endpoint:

Voor testing redenen worden alle calls naar FODFIN-Cloud in de failed requests buffer bijgehouden en dit werd uitgelezen:

2025-06-01T21:13:04Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:13:04 GMT
{"actionId":"2025-05-05T09:11:06.392Z","messageDateTimeEcho":"2025-06-01T21:12:55.117Z","operationType":"SET_URLS","result":{"data":{"setUrls":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:13:03Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:b3b455db-7255-4793-909f-f81eccf4de42x-amz-apigw-id:LgNPlF-kFiAFrZA=X-Amzn-Trace-Id:Root=1-683cc263-eee26d0333d3573c1608d14fcontent-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:13:06 GMT

2025-06-01T21:13:02Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:13:02 GMT
{"actionId":"2024-01-06T16:03:23.004Z","messageDateTimeEcho":"2025-06-01T21:12:55.107Z","operationType":"SET_TRUST_CERT","result":{"data":{"setTrustCert":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:13:02Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:c0e2e91d-f2d6-49f6-b410-ebe6bd9487e0x-amz-apigw-id:LgNPcG3pFiAFcmA=X-Amzn-Trace-Id:Root=1-683cc262-89303e9d1acb454cb97bff56content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:13:06 GMT

2025-06-01T21:13:01Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:13:01 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:12:55.101Z","operationType":"SET_POS_ALLOWLIST","result":{"data":{"setPosAllowlist":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:13:01Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}],"posIdFromDateList":[{"fromSystemDate":"2024-01-01","posIdList":["Csnpos00000001","Csnpos00000003"]},{"fromSystemDate":"2025-01-01","posIdList":["Csnpos00000001","Csnpos00000003","Csnpos00000004"]},{"fromSystemDate":"2025-04-01","posIdList":["CPOS0031234567","CPOS0031234568","CFOD0010000100"]}]}}}}}
Reply 200
x-amzn-RequestId:b7f2e870-317a-4373-b487-4b4a79faaca3x-amz-apigw-id:LgNPSFvhFiAFmaA=X-Amzn-Trace-Id:Root=1-683cc261-9db29a69c691dbc43de1f53econtent-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:13:05 GMT

2025-06-01T21:13:00Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:13:00 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:12:55.097Z","operationType":"SET_VAT_RATES","result":{"data":{"setVatRates":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:13:00Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:9e9fe342-4746-4d6a-8de3-4317fdef5961x-amz-apigw-id:LgNPJFiDliAFpNg=X-Amzn-Trace-Id:Root=1-683cc260-ad01a792492c4e875f90f866content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:13:03 GMT

2025-06-01T21:12:59Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:12:59 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:12:55.094Z","operationType":"SET_PARAMS","result":{"data":{"setParams":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:12:59Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:1941fdf2-1a28-4863-97f7-0fa0698c5b79x-amz-apigw-id:LgNOmHNDliAFlJw=X-Amzn-Trace-Id:Root=1-683cc25d-c2dd998b864ce4ba81c922d7content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:13:02 GMT

2025-06-01T21:12:58Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:12:58 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:12:55.088Z","operationType":"SET_FDM_LOCK","result":{"data":{"setFdmLock":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:12:58Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:cc70043e-63dd-4f5e-aa44-fbd520179ffex-amz-apigw-id:LgNOQGOHliAFQOA=X-Amzn-Trace-Id:Root=1-683cc25a-02d5a4a02500b982e454df97content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:12:59 GMT

De response bevat elke keer het actionId, messageDateTmeEcho en operationType

Met failure

Deze actie werd herhaalt maar er werd de code werd aangepast, zodoende de verwerking van setFdmLock zou falen.

2025-06-01 21:39:39.458	fod-query	I (31969) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_INIT
2025-06-01 21:39:40.462	fod-query	I (32979) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748813980] retryCount[0] retryInterval[600]
2025-06-01 21:39:40.620	fod-http	W (33119) fod-http: JWT: eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4ODEzOTgwLCJmZG1JZCI6IkNCWDAxMDAwMDAxIiwiY2xpZW50Q2VydFNuIjoiMzIzODE3Mzk5NzgzMjg0MzAwNTAxNDA0ODA0MzI0NTAyODA1NTI1MTk4Mzg5MTAzIn0.vt18D49ei5pspNz_CpiMImGS9qkyY9yG-O04c_JDfhAMOqbOYlVZhIY1dwkK_NWu4Rn7434Cr-jMGM7TsR2wMw
2025-06-01 21:39:40.637	fod-query	I (33129) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-01 21:39:41.527	fod-query	I (34049) fod-query: Init - HTTP status is OK
2025-06-01 21:39:41.534	fod-query	I (34049) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_INIT_PROCESS
2025-06-01 21:39:42.016	fod-query	I (34529) fod-query: Claim certificate chain is valid
2025-06-01 21:39:42.436	fod-query	I (34949) fod-query: Digital signature verification passed
2025-06-01 21:39:42.752	fod-query	I (35269) fod-query: State: FOD_QUERY_STATE_INIT_PROCESS -> FOD_QUERY_STATE_WORK
2025-06-01 21:39:43.810	fod-query	E (36319) fod-query: Failed to process GQL
2025-06-01 21:39:43.815	fod-query	I (36319) fod-query: Action "SET_FDM_LOCK" failed
2025-06-01 21:39:43.824	fod-query	E (36329) fod-query: Failed to handle mutation
2025-06-01 21:39:44.926	fod-query	I (37439) fod-query: Action "SET_PARAMS" success
2025-06-01 21:39:46.091	fod-query	I (38599) fod-query: Action "SET_VAT_RATES" success
2025-06-01 21:39:47.346	fod-query	I (39859) fod-query: Action "SET_POS_ALLOWLIST" success
2025-06-01 21:39:48.465	fod-query	I (40979) fod-query: Action "SET_TRUST_CERT" success
2025-06-01 21:39:49.659	fod-query	I (42169) fod-query: Action "SET_URLS" success
2025-06-01 21:39:49.752	fod-query	W (42269) fod-query: All init items processed with error
2025-06-01 21:39:49.761	fod-query	I (42269) fod-query: State: FOD_QUERY_STATE_WORK -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY

1. Rood: Verwerken van set FDM lock is niet geslaagd
2. Blauw: Omdat 1 van de actions niet succesvol verwerkt wordt er een nieuwe ws_init gepland

2025-06-01T21:41:16Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:16 GMT
{"actionId":"2025-05-05T09:11:06.392Z","messageDateTimeEcho":"2025-06-01T21:41:08.323Z","operationType":"SET_URLS","result":{"data":{"setUrls":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:41:16Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200

x-amzn-RequestId:12f4efe2-fcab-4fe6-8dd0-194f5401a16fx-amz-apigw-id:LgRXmFf9liAFrKA=X-Amzn-Trace-Id:Root=1-683cc8fd-0d84f32bee1a975078bdd97ccontent-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:17 GMT
2025-06-01T21:41:15Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:15 GMT
{"actionId":"2024-01-06T16:03:23.004Z","messageDateTimeEcho":"2025-06-01T21:41:08.319Z","operationType":"SET_TRUST_CERT","result":{"data":{"setTrustCert":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:41:15Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:00cd994a-d6de-4517-9232-34e43648576fx-amz-apigw-id:LgRXbFIyFiAFpWw=X-Amzn-Trace-Id:Root=1-683cc8fb-d717837f558db102885002cccontent-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:15 GMT

2025-06-01T21:41:14Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:14 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:41:08.316Z","operationType":"SET_POS_ALLOWLIST","result":{"data":{"setPosAllowlist":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:41:14Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}],"posIdFromDateList":[{"fromSystemDate":"2024-01-01","posIdList":["Csnpos00000001","Csnpos00000003"]},{"fromSystemDate":"2025-01-01","posIdList":["Csnpos00000001","Csnpos00000003","Csnpos00000004"]},{"fromSystemDate":"2025-04-01","posIdList":["CPOS0031234567","CPOS0031234568","CFOD0010000100"]}]}}}}}
Reply 200
x-amzn-RequestId:1634ea6f-6e67-42ed-8f5f-ae21862c9d63x-amz-apigw-id:LgRXQEe7FiAFpsg=X-Amzn-Trace-Id:Root=1-683cc8fa-1956de647954aa47e07ea9f3content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:14 GMT

2025-06-01T21:41:13Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:13 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:41:08.314Z","operationType":"SET_VAT_RATES","result":{"data":{"setVatRates":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:41:12Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:0fd6ae6e-e487-480a-98a5-0d15206326afx-amz-apigw-id:LgRXFG16liAFdCQ=X-Amzn-Trace-Id:Root=1-683cc8f9-632c728687643d35eebddfc7content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:13 GMT

2025-06-01T21:41:11Z
Request POST https://secure.acc.gks2-0.be/business/query/success
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:11 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:41:08.310Z","operationType":"SET_PARAMS","result":{"data":{"setParams":{"device":{"fdmId":"CBX01000001","fdmDateTime":"2025-06-01T21:41:11Z","bufferCapacityUsed":0},"configuration":{"paramsVersionObject":{"paramsVersion":"2025-04-17T13:52:05Z"},"fdmLockFromDateList":[{"fromSystemDate":"2025-01-01","fdmLock":false,"lockReason":null}]}}}}}
Reply 200
x-amzn-RequestId:1374bf6d-bbe3-4d73-a9f4-adacde33e418x-amz-apigw-id:LgRW6HNSliAFqow=X-Amzn-Trace-Id:Root=1-683cc8f8-48a192fbd0fecbc7dc11f42ccontent-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:12 GMT

2025-06-01T21:41:10Z
Request POST https://secure.acc.gks2-0.be/business/query/error
accept: application/json Content-Type: application/json Date: Sun, 01 Jun 2025 21:41:10 GMT
{"actionId":"2025-04-17T13:52:05.123Z","messageDateTimeEcho":"2025-06-01T21:41:08.307Z","operationType":"SET_FDM_LOCK","result":{"errors":[{"message":"Mutation 'setFdmLock' processing error","locations":[],"extensions":{"fdmId":"CBX01000001","timestamp":"2025-06-01T21:41:10Z"}}]}}
Reply 200
x-amzn-RequestId:22c47b65-dcba-4729-9b64-a0ff2bb8ddf2x-amz-apigw-id:LgRWuG1oFiAFeUA=X-Amzn-Trace-Id:Root=1-683cc8f7-ac4bd0ac009c378ee809ad47content-type:application/jsoncontent-length:0date:Sun, 01 Jun 2025 21:41:11 GMT

Voor SET_FDM_LOCK werd het endpoint https://secure.acc.gks2-0.be/business/query/error aangeroepen

Behandelen van retry

2025-06-01 21:39:40.462	fod-query	I (32979) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748813980] retryCount[0] retryInterval[600]
2025-06-01 21:39:56.753	fod-query	I (49269) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748813996] retryCount[1] retryInterval[5]
2025-06-01 21:41:07.622	fod-query	I (120139) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748814067] retryCount[2] retryInterval[60]
2025-06-01 21:46:18.467	fod-query	I (430979) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748814378] retryCount[3] retryInterval[300]
2025-06-01 21:51:29.469	fod-query	I (741979) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748814689] retryCount[4] retryInterval[300]
2025-06-01 21:56:40.293	fod-query	I (1052799) fod-query: WS_INIT: fdmLastActions[1740000000] initInterval[345600] now[1748815000] retryCount[5] retryInterval[300]

Verderbouwend op voorgaande test waar setFDMLock faalt, zien we nu dat de checkbox de WS_SERVICE aanroept met het gewenste retryInterval.

Het retryInterval bij retryCount kan genegeerd worden. Als de logregel bijvoorbeeld “retryInterval 300” toont, betekent dit dat de Checkbox 300 seconden heeft gewacht voordat hij een retry uitvoerde.

Gedurende deze tijd is de error FDM_NOT_OPERATIONAL actief

Request retry via admin-console

Voorwaarde is dat INITIALIZATION_FAILED warning actief, om hieraan te voldoen werd alle config van de Checkbox verwijderd en werd er een ongeldige URL als WS_INIT gezet via de admin console:

De default retry waardes zijn:

static const int _retry_intervals_default[] = { [0]=5, [1]=60, [2]=300, [3]=300, [4]=300, [5]=3600, [6]=10800};

De Checkbox werd opgestart en dit zijn de initiële log:

2025-06-02 19:48:45.681	fod-query	I (31121) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_INIT
2025-06-02 19:48:46.708	fod-query	I (32151) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748893726] retryCount[0] retryInterval[0]
2025-06-02 19:48:46.862	fod-query	I (32291) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 19:48:47.036	fod-query	E (32491) fod-query: Init - HTTP status is not OK
2025-06-02 19:48:47.046	fod-query	I (32491) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 19:48:47.941	fod-query	I (33391) fod-query: Scheduling retry in 5 s
2025-06-02 19:48:47.952	fod-query	I (33391) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 19:48:52.962	fod-query	E (38401) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 19:48:52.967	fod-query	I (38401) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 19:48:53.974	fod-query	I (39411) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748893733] retryCount[1] retryInterval[5]
2025-06-02 19:48:54.129	fod-query	I (39561) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 19:48:54.265	fod-query	E (39721) fod-query: Init - HTTP status is not OK
2025-06-02 19:48:54.276	fod-query	I (39721) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 19:48:55.121	fod-query	I (40571) fod-query: Scheduling retry in 60 s
2025-06-02 19:48:55.132	fod-query	I (40571) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 19:49:55.132	fod-query	E (100571) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 19:49:55.140	fod-query	I (100571) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 19:49:56.145	fod-query	I (101581) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748893796] retryCount[2] retryInterval[60]
2025-06-02 19:49:56.299	fod-query	I (101731) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 19:49:56.426	fod-query	E (101881) fod-query: Init - HTTP status is not OK
2025-06-02 19:49:56.437	fod-query	I (101881) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 19:49:57.291	fod-query	I (102741) fod-query: Scheduling retry in 300 s
2025-06-02 19:49:57.303	fod-query	I (102741) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 19:54:57.315	fod-query	E (402751) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 19:54:57.323	fod-query	I (402751) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 19:54:58.328	fod-query	I (403761) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748894098] retryCount[3] retryInterval[300]
2025-06-02 19:54:58.483	fod-query	I (403911) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 19:54:58.619	fod-query	E (404071) fod-query: Init - HTTP status is not OK
2025-06-02 19:54:58.630	fod-query	I (404071) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 19:54:59.474	fod-query	I (404921) fod-query: Scheduling retry in 300 s
2025-06-02 19:54:59.486	fod-query	I (404921) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 19:59:59.508	fod-query	E (704941) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 19:59:59.515	fod-query	I (704941) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 20:00:00.520	fod-query	I (705951) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748894400] retryCount[4] retryInterval[300]
2025-06-02 20:00:00.673	fod-query	I (706101) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 20:00:00.812	fod-query	E (706261) fod-query: Init - HTTP status is not OK
2025-06-02 20:00:00.823	fod-query	I (706261) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 20:00:01.667	fod-query	I (707111) fod-query: Scheduling retry in 300 s
2025-06-02 20:00:01.678	fod-query	I (707111) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL

De volgende retry is gepland rond 20:05, dus

2025-06-02 20:04:34.855	fod-query	I (980291) fod-query: User FOD settings changed (Initiating retry[1])
2025-06-02 20:04:34.877	fod-query	E (980301) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 20:04:34.882	fod-query	I (980311) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 20:04:35.893	fod-query	I (981321) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748894675] retryCount[5] retryInterval[300]
2025-06-02 20:04:36.049	fod-query	I (981471) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 20:04:36.174	fod-query	E (981621) fod-query: Init - HTTP status is not OK
2025-06-02 20:04:36.185	fod-query	I (981621) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 20:04:37.040	fod-query	I (982481) fod-query: Scheduling retry in 3600 s
2025-06-02 20:04:37.051	fod-query	I (982481) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL

Dit heeft een nieuw poging tot aanroepen van WS_INIT gestart. Gevolg is terug een gefaalde actie met als volgende retry gepland na 3600 seconden. Als we dit nog eens herhalen krijgen we

2025-06-02 20:08:30.027	fod-query	I (1215461) fod-query: User FOD settings changed (Initiating retry[1])
2025-06-02 20:08:30.049	fod-query	E (1215471) fod-query: FOD HTTP fallback to WS_INIT required, URL[NULL] client cert valid[0] trust cert valid[0]
2025-06-02 20:08:30.055	fod-query	I (1215481) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_INIT
2025-06-02 20:08:31.066	fod-query	I (1216491) fod-query: WS_INIT: fdmLastActions[0] initInterval[720] now[1748894911] retryCount[6] retryInterval[3600]
2025-06-02 20:08:31.221	fod-query	I (1216641) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 20:08:31.367	fod-query	E (1216811) fod-query: Init - HTTP status is not OK
2025-06-02 20:08:31.377	fod-query	I (1216811) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 20:08:32.217	fod-query	I (1217651) fod-query: Scheduling retry in 10800 s
2025-06-02 20:08:32.224	fod-query	I (1217651) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL

Opnieuw werd er vervroegd een WS_INIT actie uitgevoerd. Dit moet aantonen dat de gebruiker WS_INIT request kan uitvoeren via de admin console.

WS_REG

De actieve parameter configuratie:

Init Interval: 345600
Nop Interval: 600
Max Buffer: 5
Query Interval: 1800
Retry Intervals: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Retry Intervals Init: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Max Msg Size: 3
Postpone: true
Default Max Calls: 0
Max Calls:
Footer:
  - FPS FIN Footer 1
  - ParamsVerion: 2025-04-17T13:52:05Z

Postpone - disabled

Postpone - enable

MaxDefaultCalls == 0

Uit de onderstaande logs blijkt dat de Checkbox vijf events van elk 748 bytes ontvangt. Dat zou een gebundeld WS_REG-pakket van meer dan 3 kB (=maxMsgSize) opleveren. Daarom sluit de Checkbox het laatst ontvangen event uit, zodat het pakket niet groter is dan 3 kB. De Checkbox streeft ernaar pakketten van maximaal 3 kB samen te stellen; zodra een volgend event niet meer in het pakket past, wordt het huidige pakket meteen verzonden, zonder dat extra event.

2025-06-01 23:06:41.577	fod-reg	I (35039) fod-reg: Processing unsent business event uid[3810359774] is_valid[1] len[748]
2025-06-01 23:06:41.585	fod-reg	I (35039) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-01 23:09:42.304	fod-reg	I (215769) fod-reg: Processing unsent business event uid[3992674264] is_valid[1] len[748]
2025-06-01 23:09:44.194	fod-reg	I (217659) fod-reg: Processing unsent business event uid[1484057684] is_valid[1] len[748]
2025-06-01 23:09:45.947	fod-reg	I (219409) fod-reg: Processing unsent business event uid[2036169995] is_valid[1] len[748]
2025-06-01 23:10:47.704	fod-reg	I (281159) fod-reg: Processing unsent business event uid[1484635009] is_valid[1] len[748]
2025-06-01 23:10:47.715	fod-reg	I (281169) fod-reg: Max calls condition is met (last-action[1748819201] allowed-from[1748819201] now[1748819447] bundle-size[2kB]), proceeding ...
2025-06-01 23:10:47.726	fod-reg	I (281179) fod-reg: Ready to register unsent transactions
2025-06-01 23:10:47.731	fod-reg	I (281189) fod-reg: Messages remaining in unsent queue: 5
2025-06-01 23:10:47.737	fod-reg	I (281189) fod-reg: Bundle for FOD assembled items[4] size[2/3kB]

MaxDefaultCalls > 0

maxDefaultCalls is ingesteld op 3 en er is geen tijdslot actief in maxCalls. Uit de onderstaande log blijkt dat WS_REG gedurende het 22e uur slechts drie keer wordt uitgevoerd.

2025-06-02 21:52:03.999	fod-reg	I (5448161) fod-reg: [WS_NOP] HTTP callback type[2] status[200] response[len[3]]
2025-06-02 21:56:16.370	fod-reg	I (5700531) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 21:56:17.363	fod-reg	I (5701531) fod-reg: Collecting items until 3072 bytes
2025-06-02 21:56:17.423	fod-reg	I (5701581) fod-reg: Processing unsent business event uid[787453010] is_valid[1] len[1515]
2025-06-02 21:56:17.430	fod-reg	I (5701581) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:00:42.094	fod-reg	I (5966251) fod-reg: Processing unsent business event uid[2628533689] is_valid[1] len[748]
2025-06-02 22:02:46.313	fod-reg	I (6090471) fod-reg: Processing unsent business event uid[3029040225] is_valid[1] len[1760]
2025-06-02 22:12:03.230	fod-reg	I (6647361) fod-reg: Max calls condition is met (last-action[1748901123] allowed-from[1748902323] now[1748902323] bundle-size[2kB]), proceeding ...
2025-06-02 22:12:03.230	fod-reg	I (6647371) fod-reg: Ready to register unsent transactions
2025-06-02 22:12:03.236	fod-reg	I (6647381) fod-reg: Messages remaining in unsent queue: 5
2025-06-02 22:12:03.241	fod-reg	I (6647381) fod-reg: Bundle for FOD assembled items[2] size[2/3kB]
2025-06-02 22:12:03.251	fod-reg	I (6647391) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-06-02 22:12:04.247	fod-reg	I (6648401) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-06-02 22:12:05.081	fod-reg	I (6649231) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-06-02 22:12:05.086	fod-reg	I (6649231) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-06-02 22:12:05.242	fod-reg	I (6649401) fod-reg: POS events sent, marking as sent
2025-06-02 22:12:05.487	fod-reg	I (6649631) fod-reg: State transition from FOD_REG_STATE_SENT to FOD_REG_STATE_IDLE
2025-06-02 22:12:06.476	fod-reg	I (6650631) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 22:12:07.473	fod-reg	I (6651631) fod-reg: Collecting items until 3072 bytes
2025-06-02 22:12:07.535	fod-reg	I (6651681) fod-reg: Processing unsent business event uid[3029040225] is_valid[1] len[1760]
2025-06-02 22:12:07.574	fod-reg	I (6651721) fod-reg: Processing unsent business event uid[1934520640] is_valid[1] len[748]
2025-06-02 22:12:07.613	fod-reg	I (6651761) fod-reg: Processing unsent business event uid[694854586] is_valid[1] len[748]
2025-06-02 22:12:07.620	fod-reg	I (6651761) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:12:59.648	fod-reg	I (6703791) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 22:13:03.748	fod-reg	I (6707891) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:32:05.231	fod-reg	I (7849351) fod-reg: Max calls condition is met (last-action[1748902325] allowed-from[1748903525] now[1748903525] bundle-size[2kB]), proceeding ...
2025-06-02 22:32:05.231	fod-reg	I (7849361) fod-reg: Ready to register unsent transactions
2025-06-02 22:32:05.237	fod-reg	I (7849371) fod-reg: Messages remaining in unsent queue: 5
2025-06-02 22:32:05.243	fod-reg	I (7849371) fod-reg: Bundle for FOD assembled items[2] size[2/3kB]
2025-06-02 22:32:05.252	fod-reg	I (7849381) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-06-02 22:32:06.249	fod-reg	I (7850391) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-06-02 22:32:07.082	fod-reg	I (7851221) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-06-02 22:32:07.087	fod-reg	I (7851221) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-06-02 22:32:07.244	fod-reg	I (7851391) fod-reg: POS events sent, marking as sent
2025-06-02 22:32:07.431	fod-reg	I (7851561) fod-reg: State transition from FOD_REG_STATE_SENT to FOD_REG_STATE_IDLE
2025-06-02 22:32:08.427	fod-reg	I (7852571) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 22:32:09.424	fod-reg	I (7853571) fod-reg: Collecting items until 3072 bytes
2025-06-02 22:32:09.465	fod-reg	I (7853601) fod-reg: Processing unsent business event uid[694854586] is_valid[1] len[748]
2025-06-02 22:32:09.524	fod-reg	I (7853661) fod-reg: Processing unsent business event uid[614348190] is_valid[1] len[1760]
2025-06-02 22:32:09.589	fod-reg	I (7853731) fod-reg: Processing unsent business event uid[1862688490] is_valid[1] len[1760]
2025-06-02 22:32:09.596	fod-reg	I (7853731) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:43:04.635	fod-reg	I (8508761) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 22:43:11.739	fod-reg	I (8515861) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:52:07.765	fod-reg	I (9051891) fod-reg: Max calls condition is met (last-action[1748903527] allowed-from[1748904727] now[1748904727] bundle-size[2kB]), proceeding ...
2025-06-02 22:52:07.771	fod-reg	I (9051891) fod-reg: Ready to register unsent transactions
2025-06-02 22:52:07.776	fod-reg	I (9051891) fod-reg: Messages remaining in unsent queue: 3
2025-06-02 22:52:07.782	fod-reg	I (9051901) fod-reg: Bundle for FOD assembled items[2] size[2/3kB]
2025-06-02 22:52:07.788	fod-reg	I (9051901) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-06-02 22:52:08.780	fod-reg	I (9052911) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-06-02 22:52:09.633	fod-reg	I (9053761) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-06-02 22:52:09.638	fod-reg	I (9053761) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-06-02 22:52:09.775	fod-reg	I (9053911) fod-reg: POS events sent, marking as sent
2025-06-02 22:52:09.941	fod-reg	I (9054071) fod-reg: State transition from FOD_REG_STATE_SENT to FOD_REG_STATE_IDLE
2025-06-02 22:52:10.938	fod-reg	I (9055071) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 22:52:11.935	fod-reg	I (9056071) fod-reg: Collecting items until 3072 bytes
2025-06-02 22:52:12.001	fod-reg	I (9056131) fod-reg: Processing unsent business event uid[1862688490] is_valid[1] len[1760]
2025-06-02 22:52:12.009	fod-reg	I (9056131) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 22:58:18.523	fod-reg	I (9422641) fod-reg: Processing unsent business event uid[423487718] is_valid[1] len[748]
2025-06-02 22:58:20.254	fod-reg	I (9424381) fod-reg: Processing unsent business event uid[1265394205] is_valid[1] len[748]
2025-06-02 23:12:10.006	fod-reg	I (10254121) fod-reg: Max calls condition is met (last-action[1748904729] allowed-from[1748905929] now[1748905929] bundle-size[2kB]), proceeding ...
2025-06-02 23:12:10.012	fod-reg	I (10254121) fod-reg: Ready to register unsent transactions
2025-06-02 23:12:10.017	fod-reg	I (10254121) fod-reg: Messages remaining in unsent queue: 5
2025-06-02 23:12:10.023	fod-reg	I (10254131) fod-reg: Bundle for FOD assembled items[2] size[2/3kB]
2025-06-02 23:12:10.029	fod-reg	I (10254131) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-06-02 23:12:11.021	fod-reg	I (10255141) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-06-02 23:12:11.924	fod-reg	I (10256041) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-06-02 23:12:11.930	fod-reg	I (10256041) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-06-02 23:12:12.017	fod-reg	I (10256141) fod-reg: POS events sent, marking as sent
2025-06-02 23:12:12.427	fod-reg	I (10256531) fod-reg: State transition from FOD_REG_STATE_SENT to FOD_REG_STATE_IDLE
2025-06-02 23:12:13.420	fod-reg	I (10257541) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 23:12:14.416	fod-reg	I (10258541) fod-reg: Collecting items until 3072 bytes
2025-06-02 23:12:14.456	fod-reg	I (10258571) fod-reg: Processing unsent business event uid[1265394205] is_valid[1] len[748]
2025-06-02 23:12:14.492	fod-reg	I (10258611) fod-reg: Processing unsent business event uid[2138655800] is_valid[1] len[748]
2025-06-02 23:12:14.530	fod-reg	I (10258641) fod-reg: Processing unsent business event uid[1387643511] is_valid[1] len[748]
2025-06-02 23:12:14.538	fod-reg	I (10258651) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 23:13:12.572	fod-reg	I (10316681) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 23:13:16.764	fod-reg	I (10320871) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT

1. Groen: versturen naar WS_REG gedurende het 22ste uur
2. Paars: versturen naar WS_REG gedurende het 23ste uur

MaxCalls active slot

Hier werd maxBuffer op 10 gezet

Gebruikte config:

{
   "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
   "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
   "actionId": "2025-04-17T13:52:05.123Z",
   "messageDateTimeEcho": "2025-06-01T22:12:38.747Z",
   "operationType": "SET_PARAMS",
   "executable": {
      "query": "mutation SetParams($paramsVersionObject: ParamsVersionObjectInput!) { setParams(paramsVersionObject: $paramsVersionObject) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
      "operationName": "SetParams",
      "variables": {
         "paramsVersionObject": {
            "paramsArray": [
               {
                  "params": {
                     "url": "https://www.gks2-0.be",
                     "footer": [
                        "FPS FIN Footer 1",
                        "ParamsVerion: 2025-04-07T09:33:03Z"
                     ],
                     "maxCalls": [
                        {
                           "hour": 18,
                           "dayOfWeek": "SATURDAY",
                           "maxCallsInSlot": 0
                        },
                        {
                           "hour": 13,
                           "dayOfWeek": "MONDAY",
                           "maxCallsInSlot": 2
                        },
                        {
                           "hour": 11,
                           "dayOfWeek": "MONDAY",
                           "maxCallsInSlot": 0
                        }
                     ],
                     "postpone": true,
                     "maxBuffer": 5,
                     "maxMsgSize": 3,
                     "nopInterval": 600,
                     "initInterval": 345600,
                     "queryInterval": 1800,
                     "retryIntervals": [
                        5,
                        60,
                        300,
                        300,
                        300,
                        3600,
                        10800
                     ],
                     "defaultMaxCalls": 30,
                     "retryIntervalsInit": [
                        5,
                        60,
                        300,
                        300,
                        300,
                        3600,
                        10800
                     ]
                  },
                  "fromSystemDate": "2025-04-01"
               }
            ],
            "paramsVersion": "2025-04-17T13:52:05Z"
         }
      }
   }
}

onderstaande log toont aan dat op maandag omstreeks 11 uur UTC tijd er geen niet-verzonden transaties naar FODFIN-CLOUD werden verzonden:

2025-06-02 11:14:22.851	fod-reg	I (119436) fod-reg: State transition from FOD_REG_STATE_IDLE to FOD_REG_STATE_POPULATING
2025-06-02 11:14:23.839	fod-reg	I (120436) fod-reg: Collecting items until 3072 bytes
2025-06-02 11:14:23.881	fod-reg	I (120466) fod-reg: Processing unsent business event uid[3745832586] is_valid[1] len[747]
2025-06-02 11:14:23.888	fod-reg	I (120466) fod-reg: State transition from FOD_REG_STATE_POPULATING to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 11:14:30.158	fod-reg	I (126746) fod-reg: Processing unsent business event uid[3296070621] is_valid[1] len[747]
2025-06-02 11:14:37.066	fod-reg	I (133656) fod-reg: Processing unsent business event uid[1598737180] is_valid[1] len[748]
2025-06-02 11:14:42.934	fod-reg	I (139526) fod-reg: Processing unsent business event uid[141989956] is_valid[1] len[748]
2025-06-02 11:14:46.698	fod-reg	I (143286) fod-reg: Processing unsent business event uid[1514572897] is_valid[1] len[748]
2025-06-02 11:15:49.185	fod-reg	I (205756) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 11:15:51.280	fod-reg	I (207856) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748862778] now[1748862951] elapsed[173] togo[427] next-run-time[1748863378] call-scheduled[false]
2025-06-02 11:15:51.288	fod-reg	I (207866) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 11:22:04.328	fod-reg	I (580906) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 11:22:08.433	fod-reg	I (585006) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748862778] now[1748863328] elapsed[550] togo[50] next-run-time[1748863378] call-scheduled[false]
2025-06-02 11:22:08.442	fod-reg	I (585016) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 11:22:58.432	fod-reg	I (635026) fod-reg: NOP
2025-06-02 11:22:58.438	fod-reg	I (635026) fod-reg: [NOP] Last action: 600s ago, NOP interval[600] unsentEventCount[6] do_nop[false]
2025-06-02 11:22:58.454	fod-reg	I (635026) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748863378] now[1748863378] elapsed[0] togo[600] next-run-time[1748863978] call-scheduled[true]
2025-06-02 11:32:58.448	fod-reg	I (1235036) fod-reg: NOP
2025-06-02 11:32:58.458	fod-reg	I (1235036) fod-reg: [NOP] Last action: 1200s ago, NOP interval[600] unsentEventCount[6] do_nop[false]
2025-06-02 11:32:58.470	fod-reg	I (1235036) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748863978] now[1748863978] elapsed[0] togo[600] next-run-time[1748864578] call-scheduled[true]
2025-06-02 11:42:58.463	fod-reg	I (1835046) fod-reg: NOP
2025-06-02 11:42:58.474	fod-reg	I (1835046) fod-reg: [NOP] Last action: 1800s ago, NOP interval[600] unsentEventCount[6] do_nop[false]
2025-06-02 11:42:58.485	fod-reg	I (1835046) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748864578] now[1748864578] elapsed[0] togo[600] next-run-time[1748865178] call-scheduled[true]
2025-06-02 11:52:09.514	fod-reg	I (2386066) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_PAUSED
2025-06-02 11:52:14.614	fod-reg	I (2391166) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748862778] now[1748865134] elapsed[2356] togo[0] next-run-time[1748865134] call-scheduled[false]
2025-06-02 11:52:14.625	fod-reg	I (2391186) fod-reg: State transition from FOD_REG_STATE_PAUSED to FOD_REG_STATE_QUEUE_WAIT
2025-06-02 11:52:14.625	fod-reg	I (2391186) fod-reg: NOP
2025-06-02 11:52:14.636	fod-reg	I (2391196) fod-reg: [NOP] Last action: 2356s ago, NOP interval[600] unsentEventCount[6] do_nop[false]
2025-06-02 11:52:14.649	fod-reg	I (2391196) fod-reg: Setting NOP interval: nop-interval[600] last-action[1748865134] now[1748865134] elapsed[0] togo[600] next-run-time[1748865734] call-scheduled[true]
2025-06-02 12:00:00.653	fod-reg	I (2857216) fod-reg: Max calls condition is met (last-action[1748862778] allowed-from[1748862898] now[1748865600] bundle-size[2kB]), proceeding ...
2025-06-02 12:00:00.659	fod-reg	I (2857216) fod-reg: Ready to register unsent transactions
2025-06-02 12:00:00.665	fod-reg	I (2857216) fod-reg: Messages remaining in unsent queue: 6
2025-06-02 12:00:00.670	fod-reg	I (2857226) fod-reg: Bundle for FOD assembled items[4] size[2/3kB]
2025-06-02 12:00:00.676	fod-reg	I (2857226) fod-reg: State transition from FOD_REG_STATE_QUEUE_WAIT to FOD_REG_STATE_READY
2025-06-02 12:00:01.668	fod-reg	I (2858236) fod-reg: State transition from FOD_REG_STATE_READY to FOD_REG_STATE_SENDING
2025-06-02 12:00:02.582	fod-reg	I (2859146) fod-reg: [WS_REG] HTTP callback type[1] status[200] response[len[3]]
2025-06-02 12:00:02.587	fod-reg	I (2859146) fod-reg: State transition from FOD_REG_STATE_SENDING to FOD_REG_STATE_SENT
2025-06-02 12:00:02.664	fod-reg	I (2859236) fod-reg: POS events sent, marking as sent

De transacties ontvangen in het tijdslot van 11 uur werden pas in het slot van 12u verzonden.

Hetzelfde word nu herhaalt maar in het tijdslot van 13 uur, om aan te tonen dat we slechts 2 maal WS_REG contacteren. Dit tonen we aan de de failed-requests (met inclusief geslaagde requests) te printen:

Bij aanvang van het timeslot werden 2 POS events naar de Checkbox verzonden, voldoende om een pakket van 3kB (=maxMsgSize) te vormen.

2025-06-02T14:00:01Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":6,"fdmId":"CBX01000001","events": [{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":20,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18219,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:42.025Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:42+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122406,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIBmKtYCf4ympdQYU+bvUHBvzlF3UWb6vwyGBANJ8yaPvAiBrHUOT08kyUXHyvedbYWAtx8/2ueoGTmVT6xub9CqgDg==","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":25,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18220,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:43.357Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:43+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122407,"vatNo":"BE0000000097"},"digitalSignature":"MEUCIQCiUbmPLa1CarBy6j7JArsBw9KlpEAynSOv7yHiEmEXPAIgEywd5vgaUZE5F77w3aWJavUUwbM+l7114V3U+o+s9TY=","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":30,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18221,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:44.483Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:44+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122408,"vatNo":"BE0000000097"},"digitalSignature":"MEYCIQCzd1Wn19d0yhvO1xhiHoZDPsUC/A2SY+YPYP4hWZxWVwIhAKoJCBLUeOf+yfGxM+7fPMhK+5dIMcSdNFyStTbMsyHL","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":35,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18222,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:45.814Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:45+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122409,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIF0lsvsh2iQg1PC8zpaO5ahb9OwbgC00RvUe6rbV6QkKAiAbgH+EhnYvrIpV2PGh5feONpWnxBUjlKlRf/iiAUxiCQ==","shortSignature":"","fdmLocalisation":{}}]}
Reply 200
x-amzn-RequestId:612389b1-fb09-45ea-8a32-d6fe2d6afff3x-amz-apigw-id:LigvYHOTFiAFQPg=X-Amzn-Trace-Id:Root=1-683dae62-03a95228a5829bd4bff39909content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 14:00:01 GMT
{ }

2025-06-02T13:30:38Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":3,"fdmId":"CBX01000001","events": [{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":20,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18215,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:34.959Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:34+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122402,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIH0z1LXrqmVX4N7pfou0tFixWt6BqyGhqMgFwXwkrppoAiALwgwWJP11nxvfYVzSnlX8VKHLq4TSGgvuHc1VkC/ohA==","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":25,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18216,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:36.805Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:36+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122403,"vatNo":"BE0000000097"},"digitalSignature":"MEUCIQCh6pqJSjH5N19dES7mwgmlAk6YqKv3PGQ/XCWBksJHSAIgSXjw0njO4AUa+cAgHrHDDkX7ylrDYGLcpXeZdOuL7Yw=","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":25,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18217,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:38.240Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:38+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122404,"vatNo":"BE0000000097"},"digitalSignature":"MEUCIB5vv/PhpQ/Kclt3p+0AXp/zt2kJX18BXtAaaW2FXJJQAiEArEIW5W2VO239v15/JLKzmrH9EZocw6Op1NIOMrZPOU0=","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":15,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18218,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:40.488Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:40+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122405,"vatNo":"BE0000000097"},"digitalSignature":"MEUCIQDRmv38shtdDn4mLHEUkJt62MuX9btu8cdSQQ5qoTue4AIgXyI9J8Im8YBmXRRA50IZp5yqD9lVX69iVyXhm9Tv+Dg=","shortSignature":"","fdmLocalisation":{}}]}
Reply 200
x-amzn-RequestId:ddd7ed9e-e312-4c88-971a-4a7681795510x-amz-apigw-id:Licb7GQLliAFV6w=X-Amzn-Trace-Id:Root=1-683da77f-3f71f33cde083bfc8a54c708content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 13:30:38 GMT
{ }


2025-06-02T13:00:36Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":3,"fdmId":"CBX01000001","events": [{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":40,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18211,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T12:23:39.606Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T12:23:39+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122398,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIC+lni8wd939d4wrXEDuboovMQtHZgCLh5Gg7/8mOGBbAiA43/CMbR4ZXvWPWWt6mO4e61h/gN7VAqI0AKR6vQtXiA==","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":45,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18212,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T12:23:40.732Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T12:23:40+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122399,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIGKicfRikU9/jcl6RyMEZpPNmyVTJyQD8Ycxj0ZROf0cAiA6ZoPG3SkfxdleOoQV6plWMtNk56GMkWk7P2NYTx+oKw==","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":50,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18213,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T12:23:42.061Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T12:23:42+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122400,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIF3wh3B3nOVmUu1ms738R5jtyoKwjowfNfigGreazQHXAiB/UzGx06CeJV+Yy26HvBoWT3JDab81hYgdgrKXaJXdZQ==","shortSignature":"","fdmLocalisation":{}},{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":15,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18214,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T13:00:33.697Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T13:00:33+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122401,"vatNo":"BE0000000097"},"digitalSignature":"MEQCIEz9Kuavk4odt3CvnTYlx4ee2NLlL5w7tg+xQPumV0dgAiBUGsEd36gdDWDAdG4dC+DQKGjJMQCtV5Qfogi0gRPlYw==","shortSignature":"","fdmLocalisation":{}}]}
Reply 200
x-amzn-RequestId:d9b6f70a-5711-4646-a2eb-794d2df6e0a5x-amz-apigw-id:LiYCXFLOFiAFrZA=X-Amzn-Trace-Id:Root=1-683da075-b513a58e6c8f3edda8125ea8content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 13:00:36 GMT
{ }

Bovenstaande records tonen aan dat er slechts 2 regitraties via WS_REG uitgevoerd zijn in het slot van 13 uur. Zodra het uur verstreken was werd het volgende pakket verzonden

Postpone - timeout

Wanner postpone actief en er zijn niet verzonden transacties in de buffer maar niet genoeg om een pakket met grote van maxMsgSize te maken. Dan worden deze events uiterlijk 1 uur later verstuurd, sinds de timeout dan verstreken is.

In het onderstaande bewijst stuk is te zien dat om 2025-06-02T09:37:43Z een pakket verzonden is naar WS_REG met slechts 1 event.

2025-06-02T09:47:44Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:f07afb75-ef69-40d8-988c-bd778d5ecf46x-amz-apigw-id:Lh7yRGihFiAFpNg=X-Amzn-Trace-Id:Root=1-683d7341-4f90cf1f76e3a1b3a447f6e2content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 09:47:44 GMT
{ }

2025-06-02T09:37:43Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":1,"fdmId":"CBX01000001","events": [{"enrichedEventData":{"bookingDate":"2024-10-04","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":0,"deviceId":"80:1A:A6:75:66:FC","employeeId":"80113078968","estNo":"2000000042","eventCounter":18193,"eventLabel":"T","eventOperation":"WORK_IN","fdmDateTime":"2025-06-02T08:38:06.574Z","fdmId":"CBX01000001","fdmSwVersion":"0.1.4+feat","language":"NL","posDateTime":"2025-06-02T08:38:06+00:00","posFiscalTicketNo":1010,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"POS-2-REC","ticketMedium":"NONE","totalCounter":122380,"vatNo":"BE0000000097"},"digitalSignature":"MEUCIHq9gg//deaHcny5Kvrgdjm9XorJXpGKTF+WfUvudMeDAiEA89UrGt5rX/cE8gbP3r00H1r7sXzDUMuIYNFpJPkMS74=","shortSignature":"","fdmLocalisation":{}}]}
Reply 200
x-amzn-RequestId:e52209d1-2d23-4577-8275-6a80a47c9ffax-amz-apigw-id:Lh6UTF67FiAFVxQ=X-Amzn-Trace-Id:Root=1-683d70e7-1613beff2c58ec4fd8593c25content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 09:37:43 GMT
{ }

2025-06-02T08:37:40Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:109ba499-bcf8-47b0-a2e4-724e5d18a049x-amz-apigw-id:LhxhkH2lFiAFkwQ=X-Amzn-Trace-Id:Root=1-683d62d6-e5c033a6b400484bf980da27content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 08:37:42 GMT
{ }

WS_NOP

Onderstaande activiteit op WS_NOP werd geregistreerd, met nopInterval op 600

2025-06-02T21:41:59Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:5f3a9e0e-3b96-4890-a825-11dcb2491c98x-amz-apigw-id:LjkaaHEXFiAFukg=X-Amzn-Trace-Id:Root=1-683e1aa8-dfbd22177c7aa1fa01e3f5decontent-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 21:42:02 GMT
{ }

2025-06-02T21:31:58Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:1198c205-a6b2-4f0a-b133-d5b227278ba7x-amz-apigw-id:Lji8gHE7FiAFrqQ=X-Amzn-Trace-Id:Root=1-683e184f-cd9e263126d94a0d2c22bc6acontent-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 21:31:59 GMT
{ }

2025-06-02T21:21:57Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:ecfbff49-fa26-4789-b49f-d8c9f3a8cd61x-amz-apigw-id:LjhemEbTFiAFgZg=X-Amzn-Trace-Id:Root=1-683e15f6-1b68a7b3ae3e254a93c04146content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 21:21:58 GMT
{ }

2025-06-02T21:11:56Z
Request POST https://secure.acc.gks2-0.be/business/reg
accept: application/json Content-Type: application/json
{"unsentEventCount":0,"fdmId":"CBX01000001","events":[]}
Reply 200
x-amzn-RequestId:66d8721a-b908-4edf-b474-26795c24c47ax-amz-apigw-id:LjgAqFM9FiAFZQQ=X-Amzn-Trace-Id:Root=1-683e139d-309f449bbd1fd411d4842b16content-type:application/jsoncontent-length:3date:Mon, 02 Jun 2025 21:11:56 GMT
{ }

Dit toont aan dat de NOP bij een lege buffer elke nopInterval WS_NOP aanroept.

WS_QUERY

Werking queryInterval

De actieve parameter configuratie:

Init Interval: 345600
Nop Interval: 600
Max Buffer: 5
Query Interval: 1800
Retry Intervals: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Retry Intervals Init: 7
  0: 5
  1: 60
  2: 300
  3: 300
  4: 300
  5: 3600
  6: 10800
Max Msg Size: 3
Postpone: true
Default Max Calls: 0
Max Calls:
Footer:
  - FPS FIN Footer 1
  - ParamsVerion: 2025-04-17T13:52:05Z

Met deze parameters wordt de WS_QUERY-service elke 1800 seconden (30 minuten) aangeroepen.

Om dit te bewijzen werd de failed-request buffer gebruikt, dat in deze test build alle communicatie met FODFIN-Cloud registreert:

2025-06-02T01:43:24Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 01:43:24 GMT
Reply 200
x-amzn-RequestId:232011ef-a233-4eb2-a462-48517c41b153x-amz-apigw-id:Lg01qGzRFiAFnjA=X-Amzn-Trace-Id:Root=1-683d01bd-abdcb82c2b08ddb8de05f576content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 01:43:26 GMT
[]

2025-06-02T01:13:19Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 01:13:19 GMT
Reply 200
x-amzn-RequestId:3012ee72-607b-4e9b-981d-d62b2e66b417x-amz-apigw-id:LgwbmE0MFiAFrgg=X-Amzn-Trace-Id:Root=1-683cfab0-96fa4358c28c8468675d9ff9content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 01:13:21 GMT
[]

2025-06-02T00:43:15Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 00:43:15 GMT
Reply 200
x-amzn-RequestId:15182912-8209-49be-8a1a-7b3513232060x-amz-apigw-id:LgsBrGTXliAFdZg=X-Amzn-Trace-Id:Root=1-683cf3a3-7260fe7687608a1cfa4d7cffcontent-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 00:43:16 GMT
[]

Dit toont aan, dat de Checkbox effectief elke 30 minuten de WS_QUERY service aanroept.

Updating fdmLastActions

Bij het succesvol uitvoeren van WS_INIT of WS_QUERY wordt fdmLastActions timestamp aangepast.

WS_QUERY werd laatst uitgevoerd op 2025-06-02T12:22:15Z, zie onderstaande logging:

2025-06-02T12:22:15Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 12:22:15 GMT
Reply 200
x-amzn-RequestId:197306cb-d1b9-446c-b10d-9da47c101710x-amz-apigw-id:LiSaxEnqFiAFb7A=X-Amzn-Trace-Id:Root=1-683d9777-1d62953bd6808ca36580be55content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 12:22:15 GMT
[]

Vervolgens herstarten we de Checkbox en zien op de console volgende timestamps verschijnen:

2025-06-02 12:46:36.607	fdm-config	I (4406) fdm-config: Local config loaded
2025-06-02 12:46:36.612	fdm-config	I (4406) fdm-config: NTP1: time.aws.com
2025-06-02 12:46:36.613	fdm-config	I (4406) fdm-config: NTP2: time.belnet.com
2025-06-02 12:46:36.618	fdm-config	I (4416) fdm-config: POS bearer token: Lyly0HIjourgbgFO
2025-06-02 12:46:36.623	fdm-config	I (4416) fdm-config: Status:
2025-06-02 12:46:36.623	fdm-config	I (4416) fdm-config: FDM init: false
2025-06-02 12:46:36.629	fdm-config	I (4426) fdm-config: FDM last action: 1748866937
2025-06-02 12:46:36.635	fdm-config	I (4426) fdm-config: FDM last successful transaction: 1748867251

De epoch tijd 1748866937 werd als laatste opgeslaan, dit vertaalt naar UTC is 2025-06-02T12:22:17Z (het moment dat reply ontvangen werd)

Failure

Indien WS_QUERY faalt dan zal de boodschap UPDATE_TASK_LIST_FAILED zichtbaar worden:

Simulatie van de fout, een mutatie in de code zorgt ervoor alsof WS_QUERY HTTP status code 500 teruggaf:

2025-06-02T18:42:36Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 18:42:36 GMT
Reply 500
x-amzn-RequestId:d1ac686f-a0b1-4f7a-87b2-67ae70ac717dx-amz-apigw-id:LjKIiFfiFiAFVxQ=X-Amzn-Trace-Id:Root=1-683df09c-0689b049341c4d70011b1d8ccontent-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 18:42:35 GMT
[]

Bij het sturen van volgende request:

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-02T18:50:02+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": true
   }
}

werd het volgende geantwoord

{
   "data": {
      "signWorkIn": {
         "__typename": "SignResult",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-02T18:50:02+00:00",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "fdmSwVersion": "0.1.4+feat",
         "eventOperation": "WORK_IN",
         "digitalSignature": "MEYCIQC2cllr8kUcvDyjdO/iZsLFZtdLX2P1JQKMB7zsUXH8QgIhAK1PwxNYbOEMBzVPT2kgATeJPatmje3FhkIPsq5kyzqV",
         "bufferCapacityUsed": 0,
         "fdmRef": {
            "__typename": "FdmReference",
            "fdmId": "CBX01000001",
            "fdmDateTime": "2025-06-02T18:50:02.636Z",
            "eventLabel": "T",
            "eventCounter": 18226,
            "totalCounter": 122413
         },
         "warnings": [
            {
               "__typename": "MessageItem",
               "message": "FDM kon de actieverzoeken takenlijst niet verkrijgen.",
               "locations": null,
               "extensions": {
                  "__typename": "ExtensionItem",
                  "category": "SPF_FOD",
                  "code": "UPDATE_TASK_LIST_FAILED",
                  "showPos": "OPTIONAL",
                  "data": null
               }
            }
         ],
         "informations": null,
         "footer": [
            "FPS FIN Footer 1",
            "ParamsVerion: 2025-04-17T13:52:05Z"
         ]
      }
   }
}

Dit antwoord geeft aan de de Checkbox status UPDATE_TASK_LIST_FAILED zichtbaar maakt bij het falen van WS_QUERY.

niet geldig/ontbrekend client of trust certificaat of een verkeerde url

Ter voorbereiding op WS_QUERY controleert de Checkbox-firmware eerst of zowel het client- als trustcertificaat aanwezig en geldig zijn, en of de URL niet NULL is. Is dat niet het geval, dan wordt de fout FDM_NOT_OPERATIONAL geactiveerd, gevolgd door een WS_INIT-call.

code snippit

const char *ws_query_url        = fdm_config_url_get(FDM_CONFIG_URL_QUERY);
    const bool client_cert_is_valid = fod_http_client_cert_is_valid(ctxt->http_ctxt);
    const bool trust_cert_is_valid  = fod_http_trust_cert_is_valid(ctxt->http_ctxt);
    if (!ws_query_url || !client_cert_is_valid || !trust_cert_is_valid) {
        ESP_LOGE(TAG, "FOD HTTP fallback to WS_INIT required, URL[%s] client cert valid[%d] trust cert valid[%d]",
                 STRING_SAFE_PRINT(ws_query_url), client_cert_is_valid, trust_cert_is_valid);
        fdm_config_fdm_init_set(true);
    }

Logs met emulatie van ongeldig trust certificaat:

025-06-02 14:21:30.621	fod-http	E (32444) fod-http: Trust certificate is not installed
2025-06-02 14:21:30.632	fod-query	E (32444) fod-query: FOD HTTP fallback to WS_INIT required, URL[https://secure.acc.gks2-0.be/business/query] client cert valid[1] trust cert valid[0]
2025-06-02 14:21:30.719	fod-query	I (32544) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_INIT
2025-06-02 14:21:31.721	fod-query	I (33554) fod-query: WS_INIT: fdmLastActions[1748872355] initInterval[345600] now[1748874091] retryCount[0] retryInterval[600]
2025-06-02 14:21:31.880	fod-http	W (33694) fod-http: JWT: eyJhbGciOiJFUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiJpbml0IiwiaWF0IjoxNzQ4ODc0MDkxLCJmZG1JZCI6IkNCWDAxMDAwMDAxIiwiY2xpZW50Q2VydFNuIjoiMzIzODE3Mzk5NzgzMjg0MzAwNTAxNDA0ODA0MzI0NTAyODA1NTI1MTk4Mzg5MTAzIn0.xkiRQsRezZNIDxmEvGQbUD6BP7acTunFUN3PbQIV0ahJlr4KzoKO30ssWUhzYbOFxo7RGDRXqHwmFftrdK_8Rw
2025-06-02 14:21:31.896	fod-query	I (33704) fod-query: State: FOD_QUERY_STATE_INIT -> FOD_QUERY_STATE_BUSY
2025-06-02 14:21:32.746	fod-query	I (34584) fod-query: Init - HTTP status is OK
2025-06-02 14:21:32.753	fod-query	I (34584) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_INIT_PROCESS
2025-06-02 14:21:33.233	fod-query	I (35064) fod-query: Claim certificate chain is valid
2025-06-02 14:21:33.514	fod-query	I (35344) fod-query: Digital signature verification passed
2025-06-02 14:21:33.756	fod-query	I (35584) fod-query: State: FOD_QUERY_STATE_INIT_PROCESS -> FOD_QUERY_STATE_WORK
2025-06-02 14:21:34.837	fod-query	I (36664) fod-query: Action "SET_FDM_LOCK" success
2025-06-02 14:21:35.004	fod-query	W (36834) fod-query: All init items processed successfully

Retry procedure

Hiervoor laten we WS_QUERY opzettelijk falen, door de HTTP return status code in de firmware vast te zetten op 500.

2025-06-02 18:53:12.992	fod-query	I (947114) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_QUERY
2025-06-02 18:53:13.004	fod-query	I (947114) fod-query: WS_QUERY: fdmLastActions[1748888591] queryInterval[1800] now[1748890392] retryCount[0] retryInterval[600]
2025-06-02 18:53:13.015	fod-query	I (947114) fod-query: State: FOD_QUERY_STATE_QUERY -> FOD_QUERY_STATE_BUSY
2025-06-02 18:53:13.951	fod-query	E (948074) fod-query: Query - HTTP status is not OK
2025-06-02 18:53:13.961	fod-query	I (948074) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 18:53:14.007	fod-query	I (948134) fod-query: Scheduling retry in 5 s
2025-06-02 18:53:14.017	fod-query	I (948134) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 18:53:19.012	fod-query	I (953134) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_QUERY
2025-06-02 18:53:20.013	fod-query	I (954134) fod-query: WS_QUERY: fdmLastActions[1748888591] queryInterval[1800] now[1748890399] retryCount[1] retryInterval[5]
2025-06-02 18:53:20.028	fod-query	I (954134) fod-query: State: FOD_QUERY_STATE_QUERY -> FOD_QUERY_STATE_BUSY
2025-06-02 18:53:20.811	fod-query	E (954934) fod-query: Query - HTTP status is not OK
2025-06-02 18:53:20.822	fod-query	I (954934) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 18:53:21.017	fod-query	I (955144) fod-query: Scheduling retry in 60 s
2025-06-02 18:53:21.027	fod-query	I (955144) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL
2025-06-02 18:54:21.023	fod-query	I (1015144) fod-query: State: FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL -> FOD_QUERY_STATE_QUERY
2025-06-02 18:54:22.029	fod-query	I (1016144) fod-query: WS_QUERY: fdmLastActions[1748888591] queryInterval[1800] now[1748890461] retryCount[2] retryInterval[60]
2025-06-02 18:54:22.039	fod-query	I (1016144) fod-query: State: FOD_QUERY_STATE_QUERY -> FOD_QUERY_STATE_BUSY
2025-06-02 18:54:22.801	fod-query	E (1016924) fod-query: Query - HTTP status is not OK
2025-06-02 18:54:22.812	fod-query	I (1016924) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY
2025-06-02 18:54:23.028	fod-query	I (1017154) fod-query: Scheduling retry in 300 s
2025-06-02 18:54:23.038	fod-query	I (1017154) fod-query: State: FOD_QUERY_STATE_ERROR_SCHEDULE_RETRY -> FOD_QUERY_STATE_ERROR_WAIT_RETRY_INTERVAL

Bovenstaande logs tonen aan dat bij WS_QUERY reeds 3x faalde en er vervolgens telkens een retry gepland was met de gepaste tijd.

Verwerken actie lijst

Hiervoor werd de response van WS_QUERY gestubbed met actielijst in code. Dit was nodig om een antwoord met acties te kunnen simuleren

Gebruikte actielijst:

[
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2025-04-17T13:52:05.123Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.173Z",
      "operationType": "SET_FDM_LOCK",
      "executable": {
         "query": "mutation SetFdmLock($fdmLockFromDateList: [FdmLockInput!]!) { setFdmLock(fdmLockFromDateList: $fdmLockFromDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
         "operationName": "SetFdmLock",
         "variables": {
            "fdmLockFromDateList": [
               {
                  "fdmLock": false,
                  "lockReason": null,
                  "fromSystemDate": "2025-01-01"
               }
            ]
         }
      }
   },
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2025-04-17T13:52:05.123Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.185Z",
      "operationType": "SET_PARAMS",
      "executable": {
         "query": "mutation SetParams($paramsVersionObject: ParamsVersionObjectInput!) { setParams(paramsVersionObject: $paramsVersionObject) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
         "operationName": "SetParams",
         "variables": {
            "paramsVersionObject": {
               "paramsArray": [
                  {
                     "params": {
                        "url": "https://www.gks2-0.be",
                        "footer": [
                           "FPS FIN Footer 1",
                           "ParamsVerion: 2025-04-07T09:33:03Z"
                        ],
                        "maxCalls": [
                           {
                              "hour": 18,
                              "dayOfWeek": "SATURDAY",
                              "maxCallsInSlot": 0
                           },
                           {
                              "hour": 12,
                              "dayOfWeek": "SUNDAY",
                              "maxCallsInSlot": 100
                           },
                           {
                              "hour": 17,
                              "dayOfWeek": "MONDAY",
                              "maxCallsInSlot": 0
                           }
                        ],
                        "postpone": false,
                        "maxBuffer": 5,
                        "maxMsgSize": 256,
                        "nopInterval": 21600,
                        "initInterval": 345600,
                        "queryInterval": 1800,
                        "retryIntervals": [
                           5,
                           60,
                           300,
                           300,
                           300,
                           3600,
                           10800
                        ],
                        "defaultMaxCalls": 30,
                        "retryIntervalsInit": [
                           5,
                           60,
                           300,
                           300,
                           300,
                           3600,
                           10800
                        ]
                     },
                     "fromSystemDate": "2025-04-01"
                  },
                  {
                     "params": {
                        "url": "https://www.gks2-0.be",
                        "footer": [
                           "FPS FIN Footer 1",
                           "ParamsVerion: 2025-04-17T13:52:05Z"
                        ],
                        "maxCalls": [],
                        "postpone": false,
                        "maxBuffer": 100,
                        "maxMsgSize": 256,
                        "nopInterval": 21600,
                        "initInterval": 345600,
                        "queryInterval": 1800,
                        "retryIntervals": [
                           5,
                           60,
                           300,
                           300,
                           300,
                           3600,
                           10800
                        ],
                        "defaultMaxCalls": 0,
                        "retryIntervalsInit": [
                           5,
                           60,
                           300,
                           300,
                           300,
                           3600,
                           10800
                        ]
                     },
                     "fromSystemDate": "2025-04-10"
                  }
               ],
               "paramsVersion": "2025-04-17T13:52:05Z"
            }
         }
      }
   },
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2025-04-17T13:52:05.123Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.190Z",
      "operationType": "SET_VAT_RATES",
      "executable": {
         "query": "mutation SetVatRates($vatFromBookingDateList: [VatRatesInput!]!) { setVatRates(vatFromBookingDateList: $vatFromBookingDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
         "operationName": "SetVatRates",
         "variables": {
            "vatFromBookingDateList": [
               {
                  "vatRates": [
                     {
                        "vatRate": 21,
                        "vatLabel": "A",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 12,
                        "vatLabel": "B",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 6,
                        "vatLabel": "C",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 0,
                        "vatLabel": "D",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 0,
                        "vatLabel": "X",
                        "outOfScope": true
                     }
                  ],
                  "fromBookingDate": "2020-01-01"
               },
               {
                  "vatRates": [
                     {
                        "vatRate": 24,
                        "vatLabel": "A",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 15,
                        "vatLabel": "B",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 8,
                        "vatLabel": "C",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 0,
                        "vatLabel": "D",
                        "outOfScope": false
                     },
                     {
                        "vatRate": 0,
                        "vatLabel": "X",
                        "outOfScope": true
                     }
                  ],
                  "fromBookingDate": "2026-01-01"
               }
            ]
         }
      }
   },
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2025-04-17T13:52:05.123Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.207Z",
      "operationType": "SET_POS_ALLOWLIST",
      "executable": {
         "query": "mutation SetPosAllowlist($posIdFromDateList: [PosAllowlistInput!]!) { setPosAllowlist (posIdFromDateList: $posIdFromDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } posIdFromDateList { fromSystemDate posIdList } } } }",
         "operationName": "SetPosAllowlist",
         "variables": {
            "posIdFromDateList": [
               {
                  "posIdList": [
                     "Csnpos00000001",
                     "Csnpos00000003"
                  ],
                  "fromSystemDate": "2024-01-01"
               },
               {
                  "posIdList": [
                     "Csnpos00000001",
                     "Csnpos00000003",
                     "Csnpos00000004"
                  ],
                  "fromSystemDate": "2025-01-01"
               },
               {
                  "posIdList": [
                     "CPOS0031234567",
                     "CPOS0031234568",
                     "CFOD0010000100"
                  ],
                  "fromSystemDate": "2025-04-01"
               }
            ]
         }
      }
   },
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2024-01-06T16:03:23.004Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.210Z",
      "operationType": "SET_TRUST_CERT",
      "executable": {
         "query": "mutation SetTrustCert($trustCertFromDateList: [TrustCertInput!]!) { setTrustCert(trustCertFromDateList: $trustCertFromDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
         "operationName": "SetTrustCert",
         "variables": {
            "trustCertFromDateList": [
               {
                  "fromSystemDate": "2025-06-02",
                  "trustCert": [
                     "-----BEGIN CERTIFICATE-----\r\nMIIDQTCCAimgAwIBAgITBmyfz5m/jAo54vB4ikPmljZbyjANBgkqhkiG9w0BAQsF\r\nADA5MQswCQYDVQQGEwJVUzEPMA0GA1UEChMGQW1hem9uMRkwFwYDVQQDExBBbWF6\r\nb24gUm9vdCBDQSAxMB4XDTE1MDUyNjAwMDAwMFoXDTM4MDExNzAwMDAwMFowOTEL\r\nMAkGA1UEBhMCVVMxDzANBgNVBAoTBkFtYXpvbjEZMBcGA1UEAxMQQW1hem9uIFJv\r\nb3QgQ0EgMTCCASIwDQYJKoZIhvcNAQEBBQADggEPADCCAQoCggEBALJ4gHHKeNXj\r\nca9HgFB0fW7Y14h29Jlo91ghYPl0hAEvrAIthtOgQ3pOsqTQNroBvo3bSMgHFzZM\r\n9O6II8c+6zf1tRn4SWiw3te5djgdYZ6k/oI2peVKVuRF4fn9tBb6dNqcmzU5L/qw\r\nIFAGbHrQgLKm+a/sRxmPUDgH3KKHOVj4utWp+UhnMJbulHheb4mjUcAwhmahRWa6\r\nVOujw5H5SNz/0egwLX0tdHA114gk957EWW67c4cX8jJGKLhD+rcdqsq08p8kDi1L\r\n93FcXmn/6pUCyziKrlA4b9v7LWIbxcceVOF34GfID5yHI9Y/QCB/IIDEgEw+OyQm\r\njgSubJrIqg0CAwEAAaNCMEAwDwYDVR0TAQH/BAUwAwEB/zAOBgNVHQ8BAf8EBAMC\r\nAYYwHQYDVR0OBBYEFIQYzIU07LwMlJQuCFmcx7IQTgoIMA0GCSqGSIb3DQEBCwUA\r\nA4IBAQCY8jdaQZChGsV2USggNiMOruYou6r4lK5IpDB/G/wkjUu0yKGX9rbxenDI\r\nU5PMCCjjmCXPI6T53iHTfIUJrU6adTrCC2qJeHZERxhlbI1Bjjt/msv0tadQ1wUs\r\nN+gDS63pYaACbvXy8MWy7Vu33PqUXHeeE6V/Uq2V8viTO96LXFvKWlJbYK8U90vv\r\no/ufQJVtMVT8QtPHRh8jrdkPSHCa2XV4cdFyQzR1bldZwgJcJmApzyMZFo6IQ6XU\r\n5MsI+yMRQ+hDKXJioaldXgjUkK642M4UwtBV8ob2xJNDd2ZhwLnoQdeXeGADbkpy\r\nrqXRfboQnoZsG4q5WTP468SQvvG5\r\n-----END CERTIFICATE-----\r\n",
                     "-----BEGIN CERTIFICATE-----\r\nMIIFQTCCAymgAwIBAgITBmyf0pY1hp8KD+WGePhbJruKNzANBgkqhkiG9w0BAQwF\r\nADA5MQswCQYDVQQGEwJVUzEPMA0GA1UEChMGQW1hem9uMRkwFwYDVQQDExBBbWF6\r\nb24gUm9vdCBDQSAyMB4XDTE1MDUyNjAwMDAwMFoXDTQwMDUyNjAwMDAwMFowOTEL\r\nMAkGA1UEBhMCVVMxDzANBgNVBAoTBkFtYXpvbjEZMBcGA1UEAxMQQW1hem9uIFJv\r\nb3QgQ0EgMjCCAiIwDQYJKoZIhvcNAQEBBQADggIPADCCAgoCggIBAK2Wny2cSkxK\r\ngXlRmeyKy2tgURO8TW0G/LAIjd0ZEGrHJgw12MBvIITplLGbhQPDW9tK6Mj4kHbZ\r\nW0/jTOgGNk3Mmqw9DJArktQGGWCsN0R5hYGCrVo34A3MnaZMUnbqQ523BNFQ9lXg\r\n1dKmSYXpN+nKfq5clU1Imj+uIFptiJXZNLhSGkOQsL9sBbm2eLfq0OQ6PBJTYv9K\r\n8nu+NQWpEjTj82R0Yiw9AElaKP4yRLuH3WUnAnE72kr3H9rN9yFVkE8P7K6C4Z9r\r\n2UXTu/Bfh+08LDmG2j/e7HJV63mjrdvdfLC6HM783k81ds8P+HgfajZRRidhW+me\r\nz/CiVX18JYpvL7TFz4QuK/0NURBs+18bvBt+xa47mAExkv8LV/SasrlX6avvDXbR\r\n8O70zoan4G7ptGmh32n2M8ZpLpcTnqWHsFcQgTfJU7O7f/aS0ZzQGPSSbtqDT6Zj\r\nmUyl+17vIWR6IF9sZIUVyzfpYgwLKhbcAS4y2j5L9Z469hdAlO+ekQiG+r5jqFoz\r\n7Mt0Q5X5bGlSNscpb/xVA1wf+5+9R+vnSUeVC06JIglJ4PVhHvG/LopyboBZ/1c6\r\n+XUyo05f7O0oYtlNc/LMgRdg7c3r3NunysV+Ar3yVAhU/bQtCSwXVEqY0VThUWcI\r\n0u1ufm8/0i2BWSlmy5A5lREedCf+3euvAgMBAAGjQjBAMA8GA1UdEwEB/wQFMAMB\r\nAf8wDgYDVR0PAQH/BAQDAgGGMB0GA1UdDgQWBBSwDPBMMPQFWAJI/TPlUq9LhONm\r\nUjANBgkqhkiG9w0BAQwFAAOCAgEAqqiAjw54o+Ci1M3m9Zh6O+oAA7CXDpO8Wqj2\r\nLIxyh6mx/H9z/WNxeKWHWc8w4Q0QshNabYL1auaAn6AFC2jkR2vHat+2/XcycuUY\r\n+gn0oJMsXdKMdYV2ZZAMA3m3MSNjrXiDCYZohMr/+c8mmpJ5581LxedhpxfL86kS\r\nk5Nrp+gvU5LEYFiwzAJRGFuFjWJZY7attN6a+yb3ACfAXVU3dJnJUH/jWS5E4ywl\r\n7uxMMne0nxrpS10gxdr9HIcWxkPo1LsmmkVwXqkLN1PiRnsn/eBG8om3zEK2yygm\r\nbtmlyTrIQRNg91CMFa6ybRoVGld45pIq2WWQgj9sAq+uEjonljYE1x2igGOpm/Hl\r\nurR8FLBOybEfdF849lHqm/osohHUqS0nGkWxr7JOcQ3AWEbWaQbLU8uz/mtBzUF+\r\nfUwPfHJ5elnNXkoOrJupmHN5fLT0zLm4BwyydFy4x2+IoZCn9Kr5v2c69BoVYh63\r\nn749sSmvZ6ES8lgQGVMDMBu4Gon2nL2XA46jCfMdiyHxtN/kHNGfZQIG6lzWE7OE\r\n76KlXIx3KadowGuuQNKotOrN8I1LOJwZmhsoVLiJkO/KdYE+HvJkJMcYr07/R54H\r\n9jVlpNMKVv/1F2Rs76giJUmTtt8AF9pYfl3uxRuw0dFfIRDH+fO6AgonB8Xx1sfT\r\n4PsJYGw=\r\n-----END CERTIFICATE-----\r\n",
                     "-----BEGIN CERTIFICATE-----\r\nMIIBtjCCAVugAwIBAgITBmyf1XSXNmY/Owua2eiedgPySjAKBggqhkjOPQQDAjA5\r\nMQswCQYDVQQGEwJVUzEPMA0GA1UEChMGQW1hem9uMRkwFwYDVQQDExBBbWF6b24g\r\nUm9vdCBDQSAzMB4XDTE1MDUyNjAwMDAwMFoXDTQwMDUyNjAwMDAwMFowOTELMAkG\r\nA1UEBhMCVVMxDzANBgNVBAoTBkFtYXpvbjEZMBcGA1UEAxMQQW1hem9uIFJvb3Qg\r\nQ0EgMzBZMBMGByqGSM49AgEGCCqGSM49AwEHA0IABCmXp8ZBf8ANm+gBG1bG8lKl\r\nui2yEujSLtf6ycXYqm0fc4E7O5hrOXwzpcVOho6AF2hiRVd9RFgdszflZwjrZt6j\r\nQjBAMA8GA1UdEwEB/wQFMAMBAf8wDgYDVR0PAQH/BAQDAgGGMB0GA1UdDgQWBBSr\r\nttvXBp43rDCGB5Fwx5zEGbF4wDAKBggqhkjOPQQDAgNJADBGAiEA4IWSoxe3jfkr\r\nBqWTrBqYaGFy+uGh0PsceGCmQ5nFuMQCIQCcAu/xlJyzlvnrxir4tiz+OpAUFteM\r\nYyRIHN8wfdVoOw==\r\n-----END CERTIFICATE-----",
                     "-----BEGIN CERTIFICATE-----\r\nMIIB8jCCAXigAwIBAgITBmyf18G7EEwpQ+Vxe3ssyBrBDjAKBggqhkjOPQQDAzA5\r\nMQswCQYDVQQGEwJVUzEPMA0GA1UEChMGQW1hem9uMRkwFwYDVQQDExBBbWF6b24g\r\nUm9vdCBDQSA0MB4XDTE1MDUyNjAwMDAwMFoXDTQwMDUyNjAwMDAwMFowOTELMAkG\r\nA1UEBhMCVVMxDzANBgNVBAoTBkFtYXpvbjEZMBcGA1UEAxMQQW1hem9uIFJvb3Qg\r\nQ0EgNDB2MBAGByqGSM49AgEGBSuBBAAiA2IABNKrijdPo1MN/sGKe0uoe0ZLY7Bi\r\n9i0b2whxIdIA6GO9mif78DluXeo9pcmBqqNbIJhFXRbb/egQbeOc4OO9X4Ri83Bk\r\nM6DLJC9wuoihKqB1+IGuYgbEgds5bimwHvouXKNCMEAwDwYDVR0TAQH/BAUwAwEB\r\n/zAOBgNVHQ8BAf8EBAMCAYYwHQYDVR0OBBYEFNPsxzplbszh2naaVvuc84ZtV+WB\r\nMAoGCCqGSM49BAMDA2gAMGUCMDqLIfG9fhGt0O9Yli/W651+kI0rz2ZVwyzjKKlw\r\nCkcO8DdZEv8tmZQoTipPNU0zWgIxAOp1AE47xDqUEpHJWEadIRNyp4iciuRMStuW\r\n1KyLa2tJElMzrdfkviT8tQp21KW8EA==\r\n-----END CERTIFICATE-----\r\n",
                     "-----BEGIN CERTIFICATE-----\r\nMIID7zCCAtegAwIBAgIBADANBgkqhkiG9w0BAQsFADCBmDELMAkGA1UEBhMCVVMx\r\nEDAOBgNVBAgTB0FyaXpvbmExEzARBgNVBAcTClNjb3R0c2RhbGUxJTAjBgNVBAoT\r\nHFN0YXJmaWVsZCBUZWNobm9sb2dpZXMsIEluYy4xOzA5BgNVBAMTMlN0YXJmaWVs\r\nZCBTZXJ2aWNlcyBSb290IENlcnRpZmljYXRlIEF1dGhvcml0eSAtIEcyMB4XDTA5\r\nMDkwMTAwMDAwMFoXDTM3MTIzMTIzNTk1OVowgZgxCzAJBgNVBAYTAlVTMRAwDgYD\r\nVQQIEwdBcml6b25hMRMwEQYDVQQHEwpTY290dHNkYWxlMSUwIwYDVQQKExxTdGFy\r\nZmllbGQgVGVjaG5vbG9naWVzLCBJbmMuMTswOQYDVQQDEzJTdGFyZmllbGQgU2Vy\r\ndmljZXMgUm9vdCBDZXJ0aWZpY2F0ZSBBdXRob3JpdHkgLSBHMjCCASIwDQYJKoZI\r\nhvcNAQEBBQADggEPADCCAQoCggEBANUMOsQq+U7i9b4Zl1+OiFOxHz/Lz58gE20p\r\nOsgPfTz3a3Y4Y9k2YKibXlwAgLIvWX/2h/klQ4bnaRtSmpDhcePYLQ1Ob/bISdm2\r\n8xpWriu2dBTrz/sm4xq6HZYuajtYlIlHVv8loJNwU4PahHQUw2eeBGg6345AWh1K\r\nTs9DkTvnVtYAcMtS7nt9rjrnvDH5RfbCYM8TWQIrgMw0R9+53pBlbQLPLJGmpufe\r\nhRhJfGZOozptqbXuNC66DQO4M99H67FrjSXZm86B0UVGMpZwh94CDklDhbZsc7tk\r\n6mFBrMnUVN+HL8cisibMn1lUaJ/8viovxFUcdUBgF4UCVTmLfwUCAwEAAaNCMEAw\r\nDwYDVR0TAQH/BAUwAwEB/zAOBgNVHQ8BAf8EBAMCAQYwHQYDVR0OBBYEFJxfAN+q\r\nAdcwKziIorhtSpzyEZGDMA0GCSqGSIb3DQEBCwUAA4IBAQBLNqaEd2ndOxmfZyMI\r\nbw5hyf2E3F/YNoHN2BtBLZ9g3ccaaNnRbobhiCPPE95Dz+I0swSdHynVv/heyNXB\r\nve6SbzJ08pGCL72CQnqtKrcgfU28elUSwhXqvfdqlS5sdJ/PHLTyxQGjhdByPq1z\r\nqwubdQxtRbeOlKyWN7Wg0I8VRw7j6IPdj/3vQQF3zCepYoUz8jcI73HPdwbeyBkd\r\niEDPfUYd/x7H4c7/I9vG+o1VTqkC50cRRj70/b17KSa7qWFiNyi2LSr2EIZkyXCn\r\n0q23KXB56jzaYyWf/Wi3MOxw+3WKt21gZ7IeyLnp2KhvAotnDU0mV3HaIPzBSlCN\r\nsSi6\r\n-----END CERTIFICATE-----\r\n"
                  ]
               }
            ]
         }
      }
   },
   {
      "dataResultUrl": "https://secure.acc.gks2-0.be/business/query/success",
      "errorResultUrl": "https://secure.acc.gks2-0.be/business/query/error",
      "actionId": "2025-05-05T09:11:06.392Z",
      "messageDateTimeEcho": "2025-06-02T14:52:01.212Z",
      "operationType": "SET_URLS",
      "executable": {
         "query": "mutation SetUrls($urlsFromDateList: [UrlInput!]!) { setUrls(urlsFromDateList: $urlsFromDateList) { device { fdmId fdmDateTime bufferCapacityUsed } configuration { paramsVersionObject { paramsVersion } fdmLockFromDateList { fromSystemDate fdmLock lockReason { language message } } } } }",
         "operationName": "SetUrls",
         "variables": {
            "urlsFromDateList": [
               {
                  "urls": [
                     {
                        "key": "ws_reg",
                        "value": "https://secure.acc.gks2-0.be/business/reg"
                     },
                     {
                        "key": "ws_nop",
                        "value": "https://secure.acc.gks2-0.be/business/reg"
                     },
                     {
                        "key": "ws_query",
                        "value": "https://secure.acc.gks2-0.be/business/query"
                     },
                     {
                        "key": "ws_init",
                        "value": "https://acc.gks2-0.be/public/init"
                     },
                     {
                        "key": "ws_ntp1",
                        "value": "time.aws.com"
                     },
                     {
                        "key": "ws_ntp2",
                        "value": "time.belnet.com"
                     }
                  ],
                  "fromSystemDate": "2025-01-01"
               },
               {
                  "urls": [
                     {
                        "key": "ws_reg",
                        "value": "https://secure.acc.gks2-0.be/business/reg"
                     },
                     {
                        "key": "ws_nop",
                        "value": "https://secure.acc.gks2-0.be/business/reg"
                     },
                     {
                        "key": "ws_query",
                        "value": "https://secure.acc.gks2-0.be/business/query"
                     },
                     {
                        "key": "ws_init",
                        "value": "https://acc.gks2-0.be/public/init"
                     },
                     {
                        "key": "ws_ntp1",
                        "value": "time.aws.com"
                     },
                     {
                        "key": "ws_ntp2",
                        "value": "ntp.belnet.com"
                     }
                  ],
                  "fromSystemDate": "2026-01-01"
               }
            ]
         }
      }
   }
]

2025-06-02 16:52:18.059	fod-query	I (3665870) fod-query: State: FOD_QUERY_STATE_IDLE -> FOD_QUERY_STATE_QUERY
2025-06-02 16:52:18.070	fod-query	I (3665870) fod-query: WS_QUERY: fdmLastActions[1748881337] queryInterval[1800] now[1748883138] retryCount[0] retryInterval[600]
2025-06-02 16:52:18.076	fod-query	I (3665870) fod-query: State: FOD_QUERY_STATE_QUERY -> FOD_QUERY_STATE_BUSY
2025-06-02 16:52:22.977	fod-query	I (3670790) fod-query: Query - HTTP status is OK
2025-06-02 16:52:22.988	fod-query	I (3670790) fod-query: State: FOD_QUERY_STATE_BUSY -> FOD_QUERY_STATE_QUERY_PROCESS
2025-06-02 16:52:23.083	fod-query	I (3670890) fod-query: Processing 6 actions
2025-06-02 16:52:23.090	fod-query	I (3670900) fod-query: State: FOD_QUERY_STATE_QUERY_PROCESS -> FOD_QUERY_STATE_WORK
2025-06-02 16:52:24.092	fdm-config	W (3671900) fdm-config: FDM lock: false
2025-06-02 16:52:24.096	fod-query	I (3671900) fod-query: Action "SET_FDM_LOCK" success
2025-06-02 16:52:25.181	fdm-config	I (3672990) fdm-config: FDM configuration parameters set
2025-06-02 16:52:25.187	fdm-config	I (3672990) fdm-config: Version: 2025-04-17T13:52:05Z
2025-06-02 16:52:25.192	fdm-config	I (3672990) fdm-config: Init Interval: 345600
2025-06-02 16:52:25.198	fdm-config	I (3673000) fdm-config: Nop Interval: 21600
2025-06-02 16:52:25.198	fdm-config	I (3673000) fdm-config: Max Buffer: 100
2025-06-02 16:52:25.203	fdm-config	I (3673000) fdm-config: Query Interval: 1800
2025-06-02 16:52:25.209	fdm-config	I (3673010) fdm-config: Retry Intervals: 7
2025-06-02 16:52:25.209	fdm-config	I (3673010) fdm-config: 0: 5
2025-06-02 16:52:25.214	fdm-config	I (3673020) fdm-config: 1: 60
2025-06-02 16:52:25.220	fdm-config	I (3673020) fdm-config: 2: 300
2025-06-02 16:52:25.220	fdm-config	I (3673020) fdm-config: 3: 300
2025-06-02 16:52:25.225	fdm-config	I (3673020) fdm-config: 4: 300
2025-06-02 16:52:25.225	fdm-config	I (3673030) fdm-config: 5: 3600
2025-06-02 16:52:25.231	fdm-config	I (3673030) fdm-config: 6: 10800
2025-06-02 16:52:25.237	fdm-config	I (3673030) fdm-config: Retry Intervals Init: 7
2025-06-02 16:52:25.237	fdm-config	I (3673040) fdm-config: 0: 5
2025-06-02 16:52:25.242	fdm-config	I (3673040) fdm-config: 1: 60
2025-06-02 16:52:25.242	fdm-config	I (3673040) fdm-config: 2: 300
2025-06-02 16:52:25.248	fdm-config	I (3673050) fdm-config: 3: 300
2025-06-02 16:52:25.248	fdm-config	I (3673050) fdm-config: 4: 300
2025-06-02 16:52:25.253	fdm-config	I (3673050) fdm-config: 5: 3600
2025-06-02 16:52:25.259	fdm-config	I (3673060) fdm-config: 6: 10800
2025-06-02 16:52:25.259	fdm-config	I (3673060) fdm-config: Max Msg Size: 256
2025-06-02 16:52:25.264	fdm-config	I (3673060) fdm-config: Postpone: false
2025-06-02 16:52:25.270	fdm-config	I (3673070) fdm-config: Default Max Calls: 0
2025-06-02 16:52:25.270	fdm-config	I (3673070) fdm-config: Max Calls:
2025-06-02 16:52:25.275	fdm-config	I (3673080) fdm-config: Footer:
2025-06-02 16:52:25.281	fdm-config	I (3673080) fdm-config: - FPS FIN Footer 1
2025-06-02 16:52:25.288	fdm-config	I (3673080) fdm-config: - ParamsVerion: 2025-04-17T13:52:05Z
2025-06-02 16:52:25.288	fod-query	I (3673090) fod-query: Action "SET_PARAMS" success
2025-06-02 16:52:26.373	fdm-config	I (3674180) fdm-config: VAT rates set:
2025-06-02 16:52:26.378	fdm-config	I (3674180) fdm-config: - 0: 21.000000, 0
2025-06-02 16:52:26.384	fdm-config	I (3674190) fdm-config: - 1: 12.000000, 0
2025-06-02 16:52:26.384	fdm-config	I (3674190) fdm-config: - 2: 6.000000, 0
2025-06-02 16:52:26.389	fdm-config	I (3674190) fdm-config: - 3: 0.000000, 0
2025-06-02 16:52:26.396	fdm-config	I (3674190) fdm-config: - 4: 0.000000, 1
2025-06-02 16:52:26.397	fod-query	I (3674200) fod-query: Action "SET_VAT_RATES" success
2025-06-02 16:52:27.518	fdm-config	I (3675330) fdm-config: Pos allowlist set to:
2025-06-02 16:52:27.524	fdm-config	I (3675330) fdm-config: -CPOS0031234567
2025-06-02 16:52:27.529	fdm-config	I (3675330) fdm-config: -CPOS0031234568
2025-06-02 16:52:27.529	fdm-config	I (3675330) fdm-config: -CFOD0010000100
2025-06-02 16:52:27.535	fod-query	I (3675340) fod-query: Action "SET_POS_ALLOWLIST" success
2025-06-02 16:52:28.721	fod-query	I (3676530) fod-query: Action "SET_TRUST_CERT" success
2025-06-02 16:52:29.900	fdm-config	I (3677710) fdm-config: New URLs set:
2025-06-02 16:52:29.905	fdm-config	I (3677710) fdm-config: REG: https://secure.acc.gks2-0.be/business/reg
2025-06-02 16:52:29.911	fdm-config	I (3677710) fdm-config: NOP: https://secure.acc.gks2-0.be/business/reg
2025-06-02 16:52:29.917	fdm-config	I (3677720) fdm-config: INIT: https://acc.gks2-0.be/public/init
2025-06-02 16:52:29.928	fdm-config	I (3677720) fdm-config: QUERY: https://secure.acc.gks2-0.be/business/query
2025-06-02 16:52:29.928	fdm-config	I (3677730) fdm-config: NTP1: time.aws.com
2025-06-02 16:52:29.933	fdm-config	I (3677730) fdm-config: NTP2: time.belnet.com
2025-06-02 16:52:29.938	fod-query	I (3677740) fod-query: Action "SET_URLS" success
2025-06-02 16:52:30.314	fod-query	W (3678130) fod-query: All init items processed successfully
2025-06-02 16:52:30.325	fod-query	I (3678130) fod-query: State: FOD_QUERY_STATE_WORK -> FOD_QUERY_STATE_IDLE

De geprinte geconfiguratie door fdm-config, is enkel de actieve configuratie voor de dataum 02/06.

Uit de log kunnen we besluiten dat alle acties correct verwerkt werden.

User WS_QUERY request

Via de admin console is mogelijk om een op vraag van de gebruike WS_QUERY service aan te roepen.

onderstaand werd 3 maal een WS_QUERY gevraagd via de admin console:

2025-06-02T19:14:15Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 19:14:15 GMT
Reply 200
x-amzn-RequestId:9546b430-464f-499a-b3d7-3cd806edd3fcx-amz-apigw-id:LjOxVFv5FiAFmyw=X-Amzn-Trace-Id:Root=1-683df808-93f6758a418003f5821cc6d8content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 19:14:15 GMT
[]

2025-06-02T19:14:10Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 19:14:10 GMT
Reply 200
x-amzn-RequestId:58a91fff-9422-4ed1-9c1d-1a1b3bdd583fx-amz-apigw-id:LjOwhEyiFiAFpNg=X-Amzn-Trace-Id:Root=1-683df802-019032738b563bfdabfb11e0content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 19:14:10 GMT
[]

2025-06-02T19:14:05Z
Request GET https://secure.acc.gks2-0.be/business/query
accept: application/json Date: Mon, 02 Jun 2025 19:14:05 GMT
Reply 200
x-amzn-RequestId:c31abba2-f3cb-4e8c-9096-6d62c419e99dx-amz-apigw-id:LjOvuG4kFiAFtfw=X-Amzn-Trace-Id:Root=1-683df7fd-52d764ee09c829eb34591a51content-type:application/jsoncontent-length:2date:Mon, 02 Jun 2025 19:14:05 GMT
[]

Beveiliging

Alle communicatie met de FODFIN-Cloud server gebeurt over een beveiligde mTLS verbinding gebruikmakend van het ontvangen client certificaat en Trust certificaat.

WS_NTP1/2/3

Dit werd besproken in FODFIN-Cloud/Systeemklok

POS - FDM Connectie

Connectie mogelijkheden

LAN

Wanneer de POS en de FDM zich in het zelfde netwerk bevinden, dan kan een directe Http connectie worden opgezet tussen de apparaten.

Weliswaar is er verder nog een Bearer token nodig om de communicatie mogelijk te maken. Bij elke request moet deze bearer token in de headers worden meegegeven.

Binnen een lokaal netwerk kan het adres op de Backend Tools worden gevonden.

Een andere mogelijkheid is via een Bonjour monitor tool.

Er is geen https voorhanden direct op de checkbox

WAN

Deze kan ingesteld worden in de Backoffice Tools

Dit zorgt er niet voor dat er instellingen worden gewijzigd aan enig toestel. De verantwoordelijkheid om deze reverse proxy op te zetten ligt volledig bij de installateur. dit kan Http, Https worden, alles hangt af van de instellingen van deze reverse proxy.

Deze url die men in de backoffice kan instellen heeft enkel maar nu indien men de SDK gaat gebruiken

Checkbox Bridge

De bridge kan gezien worden als een gewoon adres van de checkbox, maar dan geen lokaal ip adres, maar wel een van overal toegankelijk adres zodat dit van eender waar aanspreekbaar wordt.

Basis adres voor de POS interface is: https://api.checkbox.be/bridge/v1/pos/graphql
Basis adres voor de AC interface is: https://api.checkbox.be/bridge/v1/ac/graphql

Een gebruiker van een Checkbox kan in hun Backoffice Tools een API Key terugvinden waarmee ze al dan niet rechten hebben om de bridge te gaan gebruiken. Deze API key moet bij elke GraphQl request in de header worden meegestuurd
Verder is er een twede header nodig die zegt welke checkbox moet worden aangesproken om deze GraphQl mutatie uit te voeren.

checkbox-client-key: 0a553a5b-09f9-4182-bee7-caaef31990b0
checkbox-id: CBX01000003

Indien zowel de API Key rechten heeft alsook de Checkbox rechten heeft dan kan de kassa software hun mutaties gaan doorsturen naar de FDM.

GraphQl Pos

De Fdm is uitgerust met een verplichte GraphQl endpoint die alle opgelegde mutaties kan behandelen en uitvoeren.
Via introspectie query kunnen we alle ondersteunde queries en mutaties terugvinden

Het aders van de endpoint

http://<IP-ADDRESS>/graphql

{"query":"
    query IntrospectionQuery {
      __schema {

        queryType { name }
        mutationType { name }
        subscriptionType { name }
        types {
          ...FullType
        }
        directives {
          name
          description

          locations
          args {
            ...InputValue
          }
        }
      }
    }

    fragment FullType on __Type {
      kind
      name
      description

      fields(includeDeprecated: true) {
        name
        description
        args {
          ...InputValue
        }
        type {
          ...TypeRef
        }
        isDeprecated
        deprecationReason
      }
      inputFields {
        ...InputValue
      }
      interfaces {
        ...TypeRef
      }
      enumValues(includeDeprecated: true) {
        name
        description
        isDeprecated
        deprecationReason
      }
      possibleTypes {
        ...TypeRef
      }
    }

    fragment InputValue on __InputValue {
      name
      description
      type { ...TypeRef }
      defaultValue


    }

    fragment TypeRef on __Type {
      kind
      name
      ofType {
        kind
        name
        ofType {
          kind
          name
          ofType {
            kind
            name
            ofType {
              kind
              name
              ofType {
                kind
                name
                ofType {
                  kind
                  name
                  ofType {
                    kind
                    name
                  }
                }
              }
            }
          }
        }
      }
    }
  ","variables":{}}

Als je deze query naar bovenstaand endpoint stuurt, dan krij je alle geimplementeerde queries en mutaties. In de attachments folder kun je het resultaat terugvinden in onderstaande file.

POS_GraphQl_Introspection_Result.json

GraphQl Ac

De Fdm is uitgerust met een optionele GraphQl endpoint die de Admin Console bewerkingen en alle opgelegde mutaties kan behandelen en uitvoeren. Via introspectie query kunnen we alle ondersteunde queries en mutaties terugvinden

Het adres van de Endpoint

http://<IP-ADDRESS>/ac/graphql

{"query":"
    query IntrospectionQuery {
      __schema {

        queryType { name }
        mutationType { name }
        subscriptionType { name }
        types {
          ...FullType
        }
        directives {
          name
          description

          locations
          args {
            ...InputValue
          }
        }
      }
    }

    fragment FullType on __Type {
      kind
      name
      description

      fields(includeDeprecated: true) {
        name
        description
        args {
          ...InputValue
        }
        type {
          ...TypeRef
        }
        isDeprecated
        deprecationReason
      }
      inputFields {
        ...InputValue
      }
      interfaces {
        ...TypeRef
      }
      enumValues(includeDeprecated: true) {
        name
        description
        isDeprecated
        deprecationReason
      }
      possibleTypes {
        ...TypeRef
      }
    }

    fragment InputValue on __InputValue {
      name
      description
      type { ...TypeRef }
      defaultValue


    }

    fragment TypeRef on __Type {
      kind
      name
      ofType {
        kind
        name
        ofType {
          kind
          name
          ofType {
            kind
            name
            ofType {
              kind
              name
              ofType {
                kind
                name
                ofType {
                  kind
                  name
                  ofType {
                    kind
                    name
                  }
                }
              }
            }
          }
        }
      }
    }
  ","variables":{}}

Als je deze query naar bovenstaand endpoint stuurt, dan krij je alle geimplementeerde queries en mutaties. In de attachments folder kun je het resultaat terugvinden in onderstaande file.

AC_GraphQl_Introspection_Result.json

GraphQl Berekeningen

SignSale Mutation

Voor alle volgende testen gaan we deze Sale mutatie gebruiken.

mutation UC225A_PriceChange_IndirectSale_3_Sale($data: SaleInput!, $training: Boolean! = false) {
  signSale(data: $data, isTraining: $training) {
    posId
    posFiscalTicketNo
    posDateTime
    terminalId
    deviceId
    fdmSwVersion
    eventOperation
    digitalSignature
    shortSignature
    verificationUrl
    bufferCapacityUsed
    fdmRef {
      fdmId
      fdmDateTime
      eventLabel
      eventCounter
      totalCounter
    }
    vatCalc {
      label
      rate
      taxableAmount
      vatAmount
      totalAmount
      outOfScope
    }
    warnings {
      message
      locations {
        line
        column
      }
      extensions {
        category
        code
        data {
          name
          value
        }
        showPos
      }
    }
    informations {
      message
      locations {
        line
        column
      }
      extensions {
        category
        code
        data {
          name
          value
        }
        showPos
      }
    }
  }
}

The first request is with all Valid Data

{
  "data": {
    "language": "NL",
    "vatNo": "BE0000000097",
    "estNo": "2000000042",
    "posId": "PBX01000003",
    "posFiscalTicketNo": 5004,
    "posDateTime": "2025-05-31T11:27:49.377Z",
    "posSwVersion": "1.8.3",
    "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
    "terminalId": "TER-2-DIN",
    "bookingPeriodId": "defcd829-a0e5-41ca-a0ae-9eb887f95637",
    "bookingDate": "2024-09-02",
    "ticketMedium": "PAPER",
    "employeeId": "84022899837",
    "costCenter": {
      "id": "1",
      "type": "TABLE",
      "reference": "O158"
    },
    "transaction": {
      "transactionLines": [
        {
          "lineType": "SINGLE_PRODUCT",
          "mainProduct": {
            "productId": "20001",
            "productName": "Carpaccio Beef",
            "departmentId": "20",
            "departmentName": "Starters",
            "quantity": 2,
            "quantityType": "PIECE",
            "unitPrice": 20,
            "vats": [
              {
                "label": "B",
                "price": 40,
                "priceChanges": [
                  {
                    "id": "1",
                    "groupingId": 1,
                    "name": "DISCOUNT20P",
                    "scope": "LINE",
                    "type": "PUBLIC",
                    "amount": -8
                  }
                ]
              }
            ]
          },
          "lineTotal": 32
        }
      ],
      "transactionTotal": 32
    },
    "financials": [
      {
        "id": "1",
        "name": "CONTANT",
        "type": "CASH",
        "inputMethod": "MANUAL",
        "amount": 32,
        "amountType": "PAYMENT",
        "drawer": {
          "id": "1",
          "name": "Drawer 1"
        }
      }
    ]
  }
}

Dit geeft ons volgende geldig resultaat terug

{
    "data": {
        "signSale": {
            "posId": "PBX01000003",
            "posFiscalTicketNo": 5004,
            "posDateTime": "2025-05-31T11:27:49.377Z",
            "terminalId": "TER-2-DIN",
            "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
            "fdmSwVersion": "0.1.5-rc.2",
            "eventOperation": "SALE",
            "digitalSignature": "MEYCIQCruQGz3UZPS5nZ6bFVC9jvxM0tvytr0UoumtV5EH8E4QIhALZDQbSr/n32cHaNWAU77vxm/Pahw/0MbxsbnT7TI82M",
            "shortSignature": "7230dbceb56881f44db2a1fdcc49c4d4edd4edcf",
            "verificationUrl": "https://www.gks2-0.be/qr5MKD9fbCJvCgSYtPI",
            "bufferCapacityUsed": 0,
            "fdmRef": {
                "fdmId": "CBX01000003",
                "fdmDateTime": "2025-05-31T11:27:46.788Z",
                "eventLabel": "N",
                "eventCounter": 879,
                "totalCounter": 2451
            },
            "vatCalc": [
                {
                    "label": "B",
                    "rate": 12,
                    "taxableAmount": 28.57,
                    "vatAmount": 3.43,
                    "totalAmount": 32,
                    "outOfScope": false
                }
            ],
            "warnings": null,
            "informations": null
        }
    }
}

Ongeldig Pos Id, niet toegestaan in de lijst

We hebben de Pos Id zodanig gewijzigd dat deze niet in de lijst staat die deze FDM mag gebruiken.

{
    "errors": [
        {
            "message": "POS is niet geregistreerd voor gebruik met deze FDM",
            "extensions": {
                "category": "FDM",
                "code": "UNKNOWN_POS",
                "showPos": "MANDATORY"
            }
        }
    ]
}

Ongeldig Employee Id, geen MOD97

De waarde die we hebben gebruikt om te testen is 8422899836 which is not a valid Mod97 value.

{
    "errors": [
        {
            "message": "Ongeldige aanvraag",
            "extensions": {
                "category": "FDM",
                "code": "INVALID_REQUEST",
                "showPos": "OPTIONAL"
            }
        }
    ]
}

Ongeldig vatNo, geen MOD97

De waarde die we hebben gebruikt om te testen is BE0000000096 which is not a valid Mod97 value.

{
    "errors": [
        {
            "message": "Ongeldige aanvraag",
            "extensions": {
                "category": "FDM",
                "code": "INVALID_REQUEST",
                "showPos": "OPTIONAL"
            }
        }
    ]
}

Ongeldig establishmentNo, geen MOD97

De waarde die we hebben gebruikt om te testen is 2000000041, deze waarde is geen geldige MOD97.

{
    "errors": [
        {
            "message": "Ongeldige aanvraag",
            "extensions": {
                "category": "FDM",
                "code": "INVALID_REQUEST",
                "showPos": "OPTIONAL"
            }
        }
    ]
}

BTW Berekening

In dit voorbeeld zien we een item die 40€ kost aan de consument. Daarop werd een korting toegepast van 8€, het verkochte product valt onder de 12% BTW regel.
De FDM geeft dit resultaat, net zoals we verwachten.

"vatCalc": [
    {
        "label": "B",
        "rate": 12,
        "taxableAmount": 28.57,
        "vatAmount": 3.43,
        "totalAmount": 32,
        "outOfScope": false
    }
],

Updaten van de tellers

De tellers kunnen worden aangetoond door meermaals een mutatie te sturen, en te zien dat de geldige teller aangepast wordt.
Dit kan je zien in zowel het antwoord van de FDM, maar evengoed kan dit via de Admin Console worden opgevraagd, als laatste kun je deze teller ook zien op de Backoffice.

Volgende test is telkens de zelfde mutatie herhalen (mits een update van de timestamp, zo zien we dat de overeenkomstige teller en totaalteller zullen omhoog gaan

"fdmRef": {
    "fdmId": "CBX01000003",
    "fdmDateTime": "2025-05-31T11:44:40.548Z",
    "eventLabel": "N",
    "eventCounter": 880,
    "totalCounter": 2454
},
"fdmRef": {
    "fdmId": "CBX01000003",
    "fdmDateTime": "2025-05-31T12:01:47.875Z",
    "eventLabel": "N",
    "eventCounter": 881,
    "totalCounter": 2455
},
"fdmRef": {
    "fdmId": "CBX01000003",
    "fdmDateTime": "2025-05-31T12:02:18.619Z",
    "eventLabel": "N",
    "eventCounter": 882,
    "totalCounter": 2456
},

Hier zie je telkens het stukje fdmRef uit het antwoord. Met de teller die telkens mooi omhoog gaat.

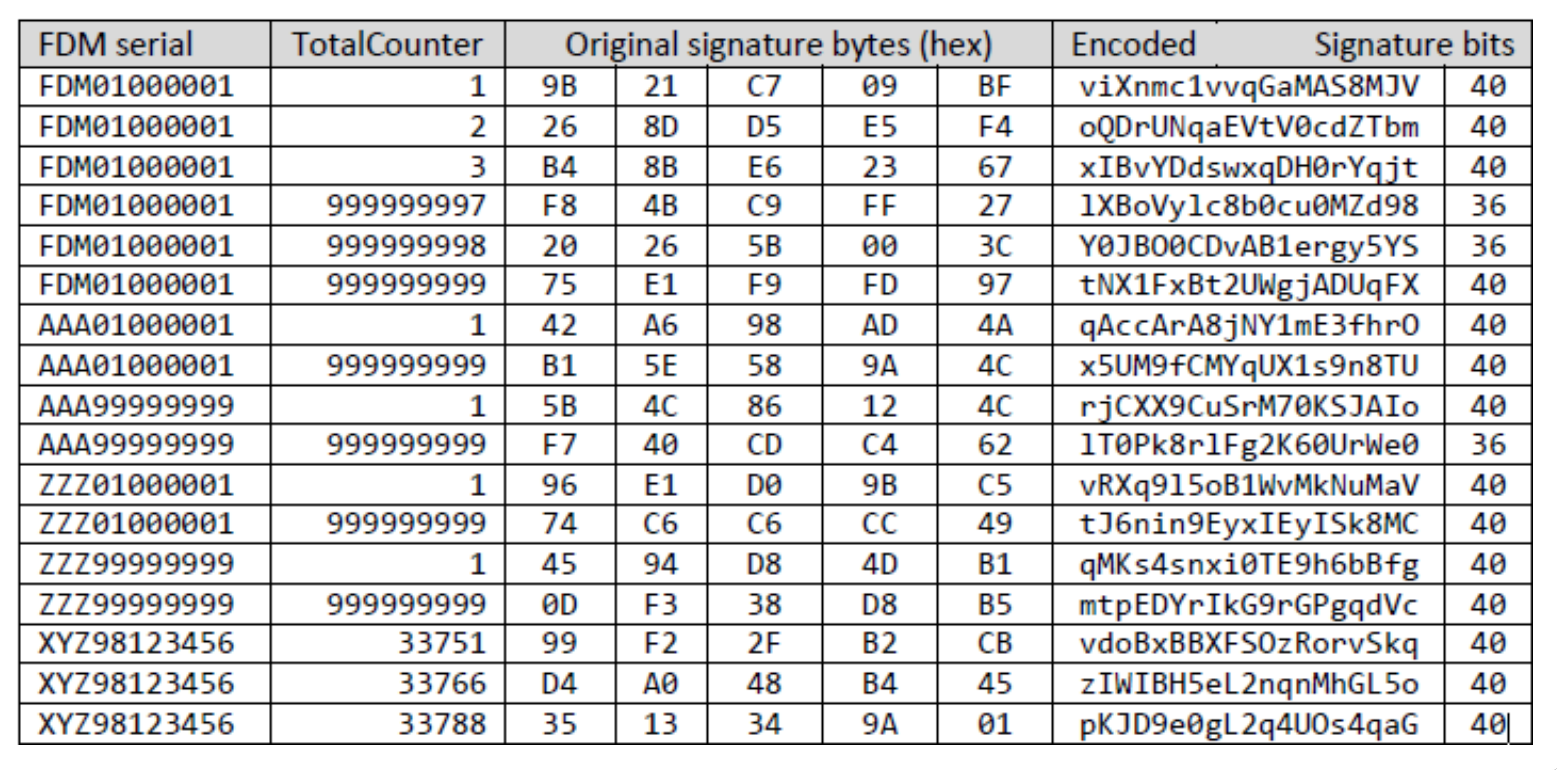

Signature, Short Signature and QR Code Url

Bij het antwoord van een sale moeten deze waarden in het antwoord staan.

"digitalSignature": "MEYCIQCruQGz3UZPS5nZ6bFVC9jvxM0tvytr0UoumtV5EH8E4QIhALZDQbSr/n32cHaNWAU77vxm/Pahw/0MbxsbnT7TI82M",
"shortSignature": "7230dbceb56881f44db2a1fdcc49c4d4edd4edcf",
"verificationUrl": "https://www.gks2-0.be/qr5MKD9fbCJvCgSYtPI",

Speciale gevallen

Nullable velden bij het antwoord

Bij het voorbeeld die we hebben gebruikt zien we dat de verwachte waarden aanwezig zijn. Wanneer we de zelfde mutatie naar de FDM sturen als Training, dan mogen deze velden niet worden ingevuld.

mutation UC225A_PriceChange_IndirectSale_3_Sale($data: SaleInput!, $training: Boolean! = true) {
  signSale(data: $data, isTraining: $training) {
  ...

Dit is vervolgens het antwoord die we van de FDM terugkrijen.

{
    "data": {
        "signSale": {
            "posId": "PBX01000003",
            "posFiscalTicketNo": 5004,
            "posDateTime": "2025-05-31T12:08:36.125Z",
            "terminalId": "TER-2-DIN",
            "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
            "fdmSwVersion": "0.1.5-rc.2",
            "eventOperation": "SALE",
            "digitalSignature": "MEQCIEhpJL1fe7J/4qP5b2C2FT2dIqTgMjvvkn18DFFxSUQcAiAV+WAjrvVFTs8GehwTrR87xHp15HB2hTdCKaHDYOBWLA==",
            "shortSignature": null,
            "verificationUrl": null,
            "bufferCapacityUsed": 0,
            "fdmRef": {
                "fdmId": "CBX01000003",
                "fdmDateTime": "2025-05-31T12:08:33.495Z",
                "eventLabel": "T",
                "eventCounter": 271,
                "totalCounter": 2457
            },
            "vatCalc": null,
            "warnings": null,
            "informations": null
        }
    }
}

Hier zien we zowel shortSignature, verificationUrl en vatCalc op null staan zoals verwacht.

Duplicate exact hetzelfde request

Wanneer we een geldige mutatie sturen, maar we sturen deze binnen de 10 minuten opnieuw, dan moet de FDM in staat zijn dit als een duplicate te aanzien. Het antwoord komt met alle geldige data, maar er is een warning die aangeeft dat het om een duplicate gaat.

Hieronder zie je 2 antwoorden van het zelfde request, de eerste keer en de tweede keer.

Eerste aanvraag

{
    "data": {
        "signSale": {
            "posId": "PBX01000003",
            "posFiscalTicketNo": 5004,
            "posDateTime": "2025-05-31T13:08:36.125Z",
            "terminalId": "TER-2-DIN",
            "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
            "fdmSwVersion": "0.1.4+dev+",
            "eventOperation": "SALE",
            "digitalSignature": "MEYCIQCsRTnlw+MQiEtt7Ceuzl8HVuqGxdjuKtqtdyfy939JNgIhAKCv5ZNbepCz3g+GgdRVtqMmN1YRGHX7TNcjpA+7QiOR",
            "shortSignature": "1fc449ca62754b54ad05898a9f00ee127e141f9d",
            "verificationUrl": "https://www.gks2-0.be/qr5MKD9fbCJvCgSYtP8",
            "bufferCapacityUsed": 0,
            "fdmRef": {
                "fdmId": "CBX01000003",
                "fdmDateTime": "2025-06-02T07:43:01.052Z",
                "eventLabel": "N",
                "eventCounter": 887,
                "totalCounter": 2462
            },
            "vatCalc": [
                {
                    "label": "B",
                    "rate": 12,
                    "taxableAmount": 28.57,
                    "vatAmount": 3.43,
                    "totalAmount": 32,
                    "outOfScope": false
                }
            ],
            "warnings": null,
            "informations": null
        }
    }
}

Tweede aanvraag

{
    "data": {
        "signSale": {
            "posId": "PBX01000003",
            "posFiscalTicketNo": 5004,
            "posDateTime": "2025-05-31T13:08:36.125Z",
            "terminalId": "TER-2-DIN",
            "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
            "fdmSwVersion": "0.1.4+dev+",
            "eventOperation": "SALE",
            "digitalSignature": "MEYCIQCsRTnlw+MQiEtt7Ceuzl8HVuqGxdjuKtqtdyfy939JNgIhAKCv5ZNbepCz3g+GgdRVtqMmN1YRGHX7TNcjpA+7QiOR",
            "shortSignature": "1fc449ca62754b54ad05898a9f00ee127e141f9d",
            "verificationUrl": "https://www.gks2-0.be/qr5MKD9fbCJvCgSYtP8",
            "bufferCapacityUsed": 0,
            "fdmRef": {
                "fdmId": "CBX01000003",
                "fdmDateTime": "2025-06-02T07:43:01.052Z",
                "eventLabel": "N",
                "eventCounter": 887,
                "totalCounter": 2462
            },
            "vatCalc": [
                {
                    "label": "B",
                    "rate": 12,
                    "taxableAmount": 28.57,
                    "vatAmount": 3.43,
                    "totalAmount": 32,
                    "outOfScope": false
                }
            ],
            "warnings": [
                {
                    "message": "Dubbele aanvraag",
                    "locations": null,
                    "extensions": {
                        "category": "FDM",
                        "code": "DUPLICATE_REQUEST",
                        "data": null,
                        "showPos": "NEVER"
                    }
                }
            ],
            "informations": null
        }
    }
}

Bij de tweede aanvraag zien we een warning die aangeeft dat dit om een duplicate_request gaat, we zien ook dat het antwoord de tellers niet heeft aangepast, maar wel alle zelfde data terugstuurt.

Duplicate Request, zelfde keyvalues maar ander request

Wanneer dit gebeurt negeert de FDM het request, maar geeft ons een error terug.

{
    "errors": [
        {
            "message": "Dubbele aanvraag",
            "extensions": {
                "category": "FDM",
                "code": "DUPLICATE_REQUEST",
                "showPos": "NEVER"
            }
        }
    ]
}

Updaten van de Parameters

Via de GraphQl AC endpoint is het mogelijk om zowel de WS Init url te gaan updaten alsook de NTP3 server in te stellen.

We kunnen dit aantonen via een combinatie van de Checkbox.Admin-Console tool, de Tools backend en een Checkbox.

Ws-Init url aanpassen

Via de tool Checkbox.Admin-Console gaan we de url aanpassen.

A: Get Admin Info
B: Get Buffered Messages
C: Get Sent Messages
D: Get Failed Requests
E: Set Network Configuration
F: Set Ws Init Url
G: Set Ntp3 Url
H: Call Ws Init
I: Sync Ntp
J: Do Reboot
Q: QUIT
---------------------------------------------------------------
-- Set Ws Init Url                                           --
---------------------------------------------------------------
Enter the custom WS Init url to configure:
https://acc.gks2-0.be/public/initDummy

Vervolgens kun je via de Tools website deze update zien.

NTP3 url aanpassen

Via de tool Checkbox.Admin-Console gaan we de url aanpassen

A: Get Admin Info
B: Get Buffered Messages
C: Get Sent Messages
D: Get Failed Requests
E: Set Network Configuration
F: Set Ws Init Url
G: Set Ntp3 Url
H: Call Ws Init
I: Sync Ntp
J: Do Reboot
Q: QUIT
---------------------------------------------------------------
-- Set Ntp 3 Url                                             --
---------------------------------------------------------------
Enter the custom NTP url to configure:
debian.pool.ntp.orgDummy

Vervolgens kun je via de Tools website deze update zien

Firmware

Usecases

Om aan te tonen dat data van de POS op een correcte wijze ontvangen en verwerkt wordt werd er een functionele test gemaakt dat alle usecases uitvoert en de response vergelijkt met het verwachte resultaat.

Deze test werd gemaakt, gebruikmakend van het python based test framework genaamd "Robot Framwork"

De test zal de volledige JSON vergelijken behalve FDM specifiek velden.

Het is echter zo dat niet alle usecases na elkaar kunnen uitgevoerd worden vermits ze duplicate requests triggeren

Gefaalde usecases met duplicate requests worden dus voorlopig genegeerd tot deze upgedate worden, dit werd gemeld op 23/05/2025.

Een Gefaalde test met *_response.json file niet gevonden, betekend dat er geen referentie gevonden was.

De actie werd ondernomen om de gefaalde testen te valideren en daar werden geen foutern teruggevonden

20250523_UC_BasicSet_POS_FDM_1.6

Name	Status	×Message	×Elapsed	×Start / End
BasicSet . Test M110 Sign Sale	PASS		00:00:00.257	20250602 23:04:42.394 20250602 23:04:42.651
BasicSet . Test M111 Sign Sale Refund	PASS		00:00:00.248	20250602 23:04:42.652 20250602 23:04:42.900
BasicSet . Test M112A_1 Original Sale	FAIL	FileNotFoundError: No *_response.json file found in 'usecases/20250523_UC_BasicSet_POS_FDM_1.6/M112A_signSale_RefundPartial/M112A_1_OriginalSale'.	00:00:00.305	20250602 23:04:42.900 20250602 23:04:43.205
BasicSet . Test M112A_2 Partial Refund	FAIL	FileNotFoundError: No *_response.json file found in 'usecases/20250523_UC_BasicSet_POS_FDM_1.6/M112A_signSale_RefundPartial/M112A_2_PartialRefund'.	00:00:00.307	20250602 23:04:43.205 20250602 23:04:43.512
BasicSet . Test M112B_1 Original Sale	FAIL	FileNotFoundError: No *_response.json file found in 'usecases/20250523_UC_BasicSet_POS_FDM_1.6/M112B_signSale_RefundPartial/M112B_1_OriginalSale'.	00:00:00.098	20250602 23:04:43.513 20250602 23:04:43.611
BasicSet . Test M112B_2 Partial Refund	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.101	20250602 23:04:43.611 20250602 23:04:43.712
BasicSet . Test M121 Sign Order	FAIL	JSON mismatch after ignoring fields: Value mismatch at data.signOrder.terminalId: expected 'TER-1-BAR ', got 'TER-1-BAR'   De verzonden Qeury bevat een trailing spatie op het einde van terminalId terwijl in de response file dit niet het geval is	00:00:00.315	20250602 23:04:43.713 20250602 23:04:44.028
BasicSet . Test M122 Sign Cost Center Change	PASS		00:00:00.304	20250602 23:04:44.028 20250602 23:04:44.332
BasicSet . Test M123 Sign Prebill	PASS		00:00:00.203	20250602 23:04:44.332 20250602 23:04:44.535
BasicSet . Test M130 Sign Money In Out	PASS		00:00:00.208	20250602 23:04:44.536 20250602 23:04:44.744
BasicSet . Test M131 Sign Drawer Open	PASS		00:00:00.305	20250602 23:04:44.744 20250602 23:04:45.049
BasicSet . Test M132 Sign Payment Correction	PASS		00:00:00.203	20250602 23:04:45.049 20250602 23:04:45.252
BasicSet . Test M133 Sign Money In Out Drawer Declaration	PASS		00:00:00.207	20250602 23:04:45.252 20250602 23:04:45.459
BasicSet . Test M140 Sign Work In	PASS		00:00:00.202	20250602 23:04:45.459 20250602 23:04:45.661
BasicSet . Test M141 Sign Work Out	PASS		00:00:00.203	20250602 23:04:45.661 20250602 23:04:45.864
BasicSet . Test M150 Sign Invoice	PASS		00:00:00.174	20250602 23:04:45.863 20250602 23:04:46.037
BasicSet . Test M160 Sign Copy Sale	PASS		00:00:00.164	20250602 23:04:46.037 20250602 23:04:46.201
BasicSet . Test M161 Sign Copy Order	PASS		00:00:00.281	20250602 23:04:46.201 20250602 23:04:46.482
BasicSet . Test M170 Sign Work In Training	PASS		00:00:00.164	20250602 23:04:46.482 20250602 23:04:46.646
BasicSet . Test M171 Sign Sale Training	PASS		00:00:00.243	20250602 23:04:46.647 20250602 23:04:46.890
BasicSet . Test M172 Sign Copy Training	PASS		00:00:00.202	20250602 23:04:46.890 20250602 23:04:47.092

20250523_UC_Reports_1.2

Name	Status	×Message	×Elapsed	×Start / End
ReportSet . Test Input Report T1	PASS		00:00:00.252	20250602 23:08:22.052 20250602 23:08:22.304
ReportSet . Test Input Report T2	PASS		00:00:00.349	20250602 23:08:22.304 20250602 23:08:22.653
ReportSet . Test Input Report T3	PASS		00:00:00.309	20250602 23:08:22.654 20250602 23:08:22.963
ReportSet . Test Input Report T4	PASS		00:00:00.306	20250602 23:08:22.963 20250602 23:08:23.269
ReportSet . Test Input Report T5	PASS		00:00:00.203	20250602 23:08:23.269 20250602 23:08:23.472
ReportSet . Test Input Report T6	PASS		00:00:00.305	20250602 23:08:23.473 20250602 23:08:23.778
ReportSet . Test Input Report T7	PASS		00:00:00.204	20250602 23:08:23.778 20250602 23:08:23.982
ReportSet . Test Input Report T8	PASS		00:00:00.308	20250602 23:08:23.982 20250602 23:08:24.290
ReportSet . Test M180 Sign Report Tunover X	PASS		00:00:00.310	20250602 23:08:24.290 20250602 23:08:24.600
ReportSet . Test M180 Sign Report Tunover X T1	PASS		00:00:00.093	20250602 23:08:24.600 20250602 23:08:24.693
ReportSet . Test M180 Sign Report Tunover X T2	PASS		00:00:00.116	20250602 23:08:24.694 20250602 23:08:24.810
ReportSet . Test M180 Sign Report Tunover X T3	PASS		00:00:00.107	20250602 23:08:24.810 20250602 23:08:24.917
ReportSet . Test M180 Sign Report Tunover X T4	PASS		00:00:00.090	20250602 23:08:24.917 20250602 23:08:25.007
ReportSet . Test M180 Sign Report Tunover X T5	PASS		00:00:00.088	20250602 23:08:25.007 20250602 23:08:25.095
ReportSet . Test M180 Sign Report Tunover X T6	PASS		00:00:00.118	20250602 23:08:25.096 20250602 23:08:25.214
ReportSet . Test M180 Sign Report Tunover X T7	PASS		00:00:00.087	20250602 23:08:25.214 20250602 23:08:25.301
ReportSet . Test M180 Sign Report Tunover X T8	PASS		00:00:00.106	20250602 23:08:25.301 20250602 23:08:25.407
ReportSet . Test M181 Sign Report Tunover Z	FAIL	'{'errors': [{'message': "Field 'category' is not valid", 'locations': [{'line': 20, 'column': 7}]}]}' does not contain 'data'   De GraphQL query is niet correct	00:00:00.317	20250602 23:08:25.407 20250602 23:08:25.724
ReportSet . Test M182 Sign Report User	PASS		00:00:00.309	20250602 23:08:25.724 20250602 23:08:26.033
ReportSet . Test M183 Sign Report User	FAIL	'{'errors': [{'message': 'Invalid value for argument field [lastFdmDateTime: 2024-07-30T11:10:42]', 'locations': []}]}' does not contain 'data'   lastFdmDateTime is geen UTC formaat (eindigt niet op Z)	00:00:00.303	20250602 23:08:26.033 20250602 23:08:26.336

20250523_UC_AdvancedSet_POS_FDM_1.4

AdvancedSet . Test UC200 Composite Product	PASS		00:00:00.301	20250604 00:39:01.880 20250604 00:39:02.181
AdvancedSet . Test UC201 Sign Sale Rounding	PASS		00:00:00.394	20250604 00:39:02.181 20250604 00:39:02.575
AdvancedSet . Test UC220 Line Price Change	FAIL	FileNotFoundError: No *_response.json file found in 'usecases/20250523_UC_AdvancedSet_POS_FDM_1.4/UC220_signSale_LinePriceChange'.	00:00:00.361	20250604 00:39:02.576 20250604 00:39:02.937
AdvancedSet . Test UC221A Line Price Change	PASS		00:00:00.428	20250604 00:39:02.937 20250604 00:39:03.365
AdvancedSet . Test UC221B Line Price Change	PASS		00:00:00.332	20250604 00:39:03.366 20250604 00:39:03.698
AdvancedSet . Test UC222 Price Change Composite	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.151	20250604 00:39:03.699 20250604 00:39:03.850
AdvancedSet . Test UC223 Event Price Change	PASS		00:00:00.328	20250604 00:39:03.850 20250604 00:39:04.178
AdvancedSet . Test UC224 Multiple Price Change	PASS		00:00:00.337	20250604 00:39:04.179 20250604 00:39:04.516
AdvancedSet . Test UC225A Step 1 Order	PASS		00:00:00.296	20250604 00:39:04.516 20250604 00:39:04.812
AdvancedSet . Test UC225A Step 2 Order	PASS		00:00:00.341	20250604 00:39:04.812 20250604 00:39:05.153
AdvancedSet . Test UC225A Step 3 Sale	PASS		00:00:00.375	20250604 00:39:05.153 20250604 00:39:05.528
AdvancedSet . Test UC225B Step 1 Order	PASS		00:00:00.093	20250604 00:39:05.529 20250604 00:39:05.622
AdvancedSet . Test UC225B Step 2 Sale	PASS		00:00:01.207	20250604 00:39:05.622 20250604 00:39:06.829
AdvancedSet . Test UC226 Order	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.162	20250604 00:39:06.829 20250604 00:39:06.991
AdvancedSet . Test UC226 Correction	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.145	20250604 00:39:06.991 20250604 00:39:07.136
AdvancedSet . Test UC229B Free Article Direct Sale	PASS		00:00:00.360	20250604 00:39:07.136 20250604 00:39:07.496
AdvancedSet . Test UC230 Correction	PASS		00:00:00.379	20250604 00:39:07.496 20250604 00:39:07.875
AdvancedSet . Test UC240 Step 1 Order	PASS		00:00:00.415	20250604 00:39:07.876 20250604 00:39:08.291
AdvancedSet . Test UC240 Step 2 CostCenterChange	PASS		00:00:00.420	20250604 00:39:08.291 20250604 00:39:08.711
AdvancedSet . Test UC240 Step 3 Prebill T1	PASS		00:00:00.356	20250604 00:39:08.711 20250604 00:39:09.067
AdvancedSet . Test UC240 Step 4 Prebill T2	PASS		00:00:00.383	20250604 00:39:09.068 20250604 00:39:09.451
AdvancedSet . Test UC240 Step 5 Sale T1	PASS		00:00:00.426	20250604 00:39:09.451 20250604 00:39:09.877
AdvancedSet . Test UC240 Step 6 Sale T2	PASS		00:00:00.518	20250604 00:39:09.877 20250604 00:39:10.395
AdvancedSet . Test UC241 Table Split To Existing - Order T1	PASS		00:00:00.918	20250604 00:39:10.396 20250604 00:39:11.314
AdvancedSet . Test UC241 Table Split To Existing - Order T2	PASS		00:00:00.395	20250604 00:39:11.314 20250604 00:39:11.709
AdvancedSet . Test UC241 Table Split To Existing - Cost Center Change	PASS		00:00:00.468	20250604 00:39:11.709 20250604 00:39:12.177
AdvancedSet . Test UC241 Table Split To Existing - Sale T1	PASS		00:00:00.511	20250604 00:39:12.178 20250604 00:39:12.689
AdvancedSet . Test UC241 Table Split To Existing - Sale T2	PASS		00:00:00.498	20250604 00:39:12.689 20250604 00:39:13.187
AdvancedSet . Test UC242 Table Split To 2 New - Order T1	PASS		00:00:00.357	20250604 00:39:13.186 20250604 00:39:13.543
AdvancedSet . Test UC242 Table Split To 2 New - Cost Center Change	PASS		00:00:00.357	20250604 00:39:13.544 20250604 00:39:13.901
AdvancedSet . Test UC242 Table Split To 2 New - Sale T35	PASS		00:00:00.324	20250604 00:39:13.901 20250604 00:39:14.225
AdvancedSet . Test UC242 Table Split To 2 New - Sale T2	PASS		00:00:00.391	20250604 00:39:14.226 20250604 00:39:14.617
AdvancedSet . Test UC243 Table Split Discount - Order T1	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.141	20250604 00:39:14.618 20250604 00:39:14.759
AdvancedSet . Test UC243 Table Split Discount - Cost Center Change	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.141	20250604 00:39:14.759 20250604 00:39:14.900
AdvancedSet . Test UC243 Table Split Discount - Prebill T1	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.156	20250604 00:39:14.900 20250604 00:39:15.056
AdvancedSet . Test UC243 Table Split Discount - Prebill T2	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.136	20250604 00:39:15.056 20250604 00:39:15.192
AdvancedSet . Test UC243 Table Split Discount - Sale T1	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.158	20250604 00:39:15.193 20250604 00:39:15.351
AdvancedSet . Test UC243 Table Split Discount - Sale T2	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.145	20250604 00:39:15.351 20250604 00:39:15.496
AdvancedSet . Test UC250 Table Merge - Order T1	PASS		00:00:00.466	20250604 00:39:15.496 20250604 00:39:15.962
AdvancedSet . Test UC250 Table Merge - Order T2	PASS		00:00:00.457	20250604 00:39:15.962 20250604 00:39:16.419
AdvancedSet . Test UC250 Table Merge - Cost Center Change	PASS		00:00:00.633	20250604 00:39:16.419 20250604 00:39:17.052
AdvancedSet . Test UC250 Table Merge - Sale	PASS		00:00:00.510	20250604 00:39:17.052 20250604 00:39:17.562
AdvancedSet . Test UC251 Table Merge - Order T1	PASS		00:00:00.490	20250604 00:39:17.562 20250604 00:39:18.052
AdvancedSet . Test UC251 Table Merge - Order T2	PASS		00:00:00.924	20250604 00:39:18.052 20250604 00:39:18.976
AdvancedSet . Test UC251 Table Merge - Cost Center Change	PASS		00:00:00.638	20250604 00:39:18.976 20250604 00:39:19.614
AdvancedSet . Test UC251 Table Merge - Sale	PASS		00:00:00.510	20250604 00:39:19.615 20250604 00:39:20.125
AdvancedSet . Test UC252 Table Merge Discount - Order T1	PASS		00:00:00.148	20250604 00:39:20.125 20250604 00:39:20.273
AdvancedSet . Test UC252 Table Merge Discount - Order T2	FAIL	'{'errors': [{'message': 'Demande en double', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.181	20250604 00:39:20.273 20250604 00:39:20.454
AdvancedSet . Test UC252 Table Merge Discount - Cost Center Change	FAIL	'{'errors': [{'message': 'Demande en double', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.201	20250604 00:39:20.453 20250604 00:39:20.654
AdvancedSet . Test UC252 Table Merge Discount - Sale	FAIL	'{'errors': [{'message': 'Demande en double', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.190	20250604 00:39:20.655 20250604 00:39:20.845
AdvancedSet . Test UC261 MPV Use - Order	PASS		00:00:00.584	20250604 00:39:20.845 20250604 00:39:21.429
AdvancedSet . Test UC261 MPV Use - Sale	PASS		00:00:00.394	20250604 00:39:21.429 20250604 00:39:21.823
AdvancedSet . Test UC262 MPV Use	PASS		00:00:00.367	20250604 00:39:21.824 20250604 00:39:22.191
AdvancedSet . Test UC270 SPV Sale	PASS		00:00:00.380	20250604 00:39:22.191 20250604 00:39:22.571
AdvancedSet . Test UC271 SPV Use - Order 1	PASS		00:00:00.486	20250604 00:39:22.572 20250604 00:39:23.058
AdvancedSet . Test UC271 SPV Use - Order 2	PASS		00:00:00.366	20250604 00:39:23.058 20250604 00:39:23.424
AdvancedSet . Test UC271 SPV Use - Prebill	PASS		00:00:00.435	20250604 00:39:23.424 20250604 00:39:23.859
AdvancedSet . Test UC271 SPV Use - Sale	PASS		00:00:00.931	20250604 00:39:23.860 20250604 00:39:24.791
AdvancedSet . Test UC280 Composite Product	PASS		00:00:01.044	20250604 00:39:24.791 20250604 00:39:25.835
AdvancedSet . Test UC290 Payment Foreign Currency Mix	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.146	20250604 00:39:25.835 20250604 00:39:25.981
AdvancedSet . Test UC291 Payment Foreign Currency	PASS		00:00:00.867	20250604 00:39:25.982 20250604 00:39:26.849
AdvancedSet . Test UC292 Tip	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.141	20250604 00:39:26.849 20250604 00:39:26.990
AdvancedSet . Test UC294 Payment Foreign Currency	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.130	20250604 00:39:26.990 20250604 00:39:27.120
AdvancedSet . Test UC295 Payment Foreign Currency	PASS		00:00:00.942	20250604 00:39:27.121 20250604 00:39:28.063
AdvancedSet . Test UC296 Payment Foreign Currency with Tip	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.158	20250604 00:39:28.062 20250604 00:39:28.220
AdvancedSet . Test UC4100 Customer Account - Step 1 Money In	PASS		00:00:01.307	20250604 00:39:28.221 20250604 00:39:29.528
AdvancedSet . Test UC4100 Customer Account - Step 2 Sale	FAIL	'{'errors': [{'message': 'Invalid value for argument field [employeeId: 75061189731]', 'locations': []}]}' does not contain 'data'     Invalid EmployeeId	00:00:00.132	20250604 00:39:29.528 20250604 00:39:29.660
AdvancedSet . Test UC4101 Cost Center Change Table to Room - Order	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.138	20250604 00:39:29.661 20250604 00:39:29.799
AdvancedSet . Test UC4101 Cost Center Change Table to Room - Change	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.127	20250604 00:39:29.799 20250604 00:39:29.926
AdvancedSet . Test UC4102 Full Flow - Sign Order 1	PASS		00:00:00.926	20250604 00:39:29.926 20250604 00:39:30.852
AdvancedSet . Test UC4102 Full Flow - Sign Order 2	PASS		00:00:00.399	20250604 00:39:30.853 20250604 00:39:31.252
AdvancedSet . Test UC4102 Full Flow - Sign Prebill	PASS		00:00:00.462	20250604 00:39:31.252 20250604 00:39:31.714
AdvancedSet . Test UC4102 Full Flow - Sign Sale	PASS		00:00:00.491	20250604 00:39:31.714 20250604 00:39:32.205
AdvancedSet . Test UC4102 Full Flow - Copy Bill	PASS		00:00:01.133	20250604 00:39:32.205 20250604 00:39:33.338
AdvancedSet . Test UC4102 Full Flow - Invoice	PASS		00:00:00.333	20250604 00:39:33.338 20250604 00:39:33.671
AdvancedSet . Test UC4103bis Split Bill - Order	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.129	20250604 00:39:33.672 20250604 00:39:33.801
AdvancedSet . Test UC4103bis Split Bill - Bill 1	PASS		00:00:00.923	20250604 00:39:33.801 20250604 00:39:34.724
AdvancedSet . Test UC4103bis Split Bill - Bill 2	PASS		00:00:00.399	20250604 00:39:34.724 20250604 00:39:35.123
AdvancedSet . Test UC4103 Cost Center Change Split - Order	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.146	20250604 00:39:35.123 20250604 00:39:35.269
AdvancedSet . Test UC4103 Cost Center Change Split - Cost Center Change	PASS		00:00:00.745	20250604 00:39:35.269 20250604 00:39:36.014
AdvancedSet . Test UC4103 Cost Center Change Split - Bill 1	PASS		00:00:00.503	20250604 00:39:36.014 20250604 00:39:36.517
AdvancedSet . Test UC4103 Cost Center Change Split - Bill 2	PASS		00:00:01.331	20250604 00:39:36.517 20250604 00:39:37.848
AdvancedSet . Test UC4104 Full Flow - Step 1 Order	PASS		00:00:00.343	20250604 00:39:37.848 20250604 00:39:38.191
AdvancedSet . Test UC4104 Full Flow - Step 2 Order	PASS		00:00:00.919	20250604 00:39:38.191 20250604 00:39:39.110
AdvancedSet . Test UC4104 Full Flow - Step 3 Order	PASS		00:00:00.406	20250604 00:39:39.111 20250604 00:39:39.517
AdvancedSet . Test UC4104 Full Flow - Step 4 Bill 1	PASS		00:00:00.462	20250604 00:39:39.518 20250604 00:39:39.980
AdvancedSet . Test UC4104 Full Flow - Step 5 Price Change	PASS		00:00:00.520	20250604 00:39:39.980 20250604 00:39:40.500
AdvancedSet . Test UC4104 Full Flow - Step 6 Prebill	PASS		00:00:01.100	20250604 00:39:40.501 20250604 00:39:41.601
AdvancedSet . Test UC4104 Full Flow - Step 7 Bill 2	PASS		00:00:00.475	20250604 00:39:41.601 20250604 00:39:42.076
AdvancedSet . Test UC4104 Full Flow - Step 8 Bill 3	PASS		00:00:00.945	20250604 00:39:42.077 20250604 00:39:43.022
AdvancedSet . Test UC4104 Full Flow - Step 9 Payment Correction	PASS		00:00:01.028	20250604 00:39:43.022 20250604 00:39:44.050
AdvancedSet . Test UC4104 Full Flow - Step 10 Copy Bill 2	PASS		00:00:00.332	20250604 00:39:44.050 20250604 00:39:44.382
AdvancedSet . Test UC4104 Full Flow - Step 11 Invoice Bill 3	FAIL	'{'errors': [{'message': "Mutation 'signInvoice' processing error", 'locations': []}]}' does not contain 'data'	00:00:00.138	20250604 00:39:44.382 20250604 00:39:44.520
AdvancedSet . Test UC4105 MPV to Cash	PASS		00:00:01.273	20250604 00:39:44.520 20250604 00:39:45.793
AdvancedSet . Test UC4106 Menu All-In Price Change	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.139	20250604 00:39:45.793 20250604 00:39:45.932
AdvancedSet . Test UC4107 Vat Labels ABC - Order	PASS		00:00:00.313	20250604 00:39:45.932 20250604 00:39:46.245
AdvancedSet . Test UC4107 Vat Labels ABC - Price Change	PASS		00:00:00.350	20250604 00:39:46.245 20250604 00:39:46.595
AdvancedSet . Test UC4107 Vat Labels ABC - Prebill	PASS		00:00:00.319	20250604 00:39:46.595 20250604 00:39:46.914
AdvancedSet . Test UC4107 Vat Labels ABC - Order Takeaway	PASS		00:00:00.434	20250604 00:39:46.915 20250604 00:39:47.349
AdvancedSet . Test UC4107 Vat Labels ABC - Sale	PASS		00:00:00.461	20250604 00:39:47.349 20250604 00:39:47.810
AdvancedSet . Test UC4108 Vat Label X Sale	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.147	20250604 00:39:47.810 20250604 00:39:47.957
AdvancedSet . Test UC4109 No Payment - Order	PASS		00:00:01.076	20250604 00:39:47.957 20250604 00:39:49.033
AdvancedSet . Test UC4109 No Payment - Sale	PASS		00:00:01.091	20250604 00:39:49.033 20250604 00:39:50.124
AdvancedSet . Test UC4110 Advanced Payment - Prepayment	PASS		00:00:01.122	20250604 00:39:50.124 20250604 00:39:51.246
AdvancedSet . Test UC4110 Advanced Payment - Order	PASS		00:00:00.338	20250604 00:39:51.247 20250604 00:39:51.585
AdvancedSet . Test UC4110 Advanced Payment - Sale	PASS		00:00:01.130	20250604 00:39:51.586 20250604 00:39:52.716
AdvancedSet . Test UC4111 Advanced Payment % of Price - Prepayment	PASS		00:00:01.028	20250604 00:39:52.716 20250604 00:39:53.744
AdvancedSet . Test UC4111 Advanced Payment % of Price - Order	PASS		00:00:00.303	20250604 00:39:53.744 20250604 00:39:54.047
AdvancedSet . Test UC4111 Advanced Payment % of Price - Sale	PASS		00:00:00.341	20250604 00:39:54.048 20250604 00:39:54.389
AdvancedSet . Test UC4112 Weighted Product	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.133	20250604 00:39:54.389 20250604 00:39:54.522
AdvancedSet . Test UC4113 Prepayment Reservation - Sale	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.147	20250604 00:39:54.522 20250604 00:39:54.669
AdvancedSet . Test UC4113 Prepayment Reservation - Order	PASS		00:00:00.392	20250604 00:39:54.670 20250604 00:39:55.062
AdvancedSet . Test UC4113 Prepayment Reservation - Order 2	PASS		00:00:00.370	20250604 00:39:55.062 20250604 00:39:55.432
AdvancedSet . Test UC4113 Prepayment Reservation - Prebill	PASS		00:00:01.188	20250604 00:39:55.433 20250604 00:39:56.621
AdvancedSet . Test UC4113 Prepayment Reservation - Sale Final	PASS		00:00:00.584	20250604 00:39:56.621 20250604 00:39:57.205
AdvancedSet . Test UC4114 Festival Deposit - Sale	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.134	20250604 00:39:57.205 20250604 00:39:57.339
AdvancedSet . Test UC4114 Festival Deposit - Refund	PASS		00:00:00.695	20250604 00:39:57.339 20250604 00:39:58.034
AdvancedSet . Test UC4116 Correction Price Change - Step 1	PASS		00:00:00.414	20250604 00:39:58.035 20250604 00:39:58.449
AdvancedSet . Test UC4116 Correction Price Change - Step 2	PASS		00:00:01.322	20250604 00:39:58.449 20250604 00:39:59.771
AdvancedSet . Test UC4117 GTIN	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.131	20250604 00:39:59.772 20250604 00:39:59.903
AdvancedSet . Test UC4118 Payment Correction - Sale	PASS		00:00:00.335	20250604 00:39:59.903 20250604 00:40:00.238
AdvancedSet . Test UC4118 Payment Correction - Correction	PASS		00:00:00.300	20250604 00:40:00.238 20250604 00:40:00.538
AdvancedSet . Test UC4119bis Split Bill - Order	PASS		00:00:00.317	20250604 00:40:00.539 20250604 00:40:00.856
AdvancedSet . Test UC4119bis Split Bill - Sale 1	PASS		00:00:00.415	20250604 00:40:00.856 20250604 00:40:01.271
AdvancedSet . Test UC4119bis Split Bill - Sale 2	PASS		00:00:00.394	20250604 00:40:01.271 20250604 00:40:01.665
AdvancedSet . Test UC4119bis Split Bill - Sale 3	PASS		00:00:00.409	20250604 00:40:01.665 20250604 00:40:02.074
AdvancedSet . Test UC4119 Split Payment - Order	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.132	20250604 00:40:02.074 20250604 00:40:02.206
AdvancedSet . Test UC4119 Split Payment - Sale	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.159	20250604 00:40:02.206 20250604 00:40:02.365
AdvancedSet . Test UC4120bis Supplement Transaction Line	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.135	20250604 00:40:02.366 20250604 00:40:02.501
AdvancedSet . Test UC4120 Supplement Price Change	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.140	20250604 00:40:02.502 20250604 00:40:02.642
AdvancedSet . Test UC4121 Customer Invoice - Sale 1	PASS		00:00:00.400	20250604 00:40:02.641 20250604 00:40:03.041
AdvancedSet . Test UC4121 Customer Invoice - Sale 2	PASS		00:00:01.047	20250604 00:40:03.042 20250604 00:40:04.089
AdvancedSet . Test UC4121 Customer Invoice - Sale 3	PASS		00:00:00.112	20250604 00:40:04.089 20250604 00:40:04.201
AdvancedSet . Test UC4121 Customer Invoice - Invoice	PASS		00:00:01.117	20250604 00:40:04.202 20250604 00:40:05.319
AdvancedSet . Test UC4122 Credit Note - Step 1	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.133	20250604 00:40:05.320 20250604 00:40:05.453
AdvancedSet . Test UC4122 Credit Note - Step 2	PASS		00:00:01.314	20250604 00:40:05.453 20250604 00:40:06.767
AdvancedSet . Test UC4122 Credit Note - Step 3	PASS		00:00:00.331	20250604 00:40:06.767 20250604 00:40:07.098
AdvancedSet . Test UC4122 Credit Note - Step 4	PASS		00:00:00.322	20250604 00:40:07.099 20250604 00:40:07.421
AdvancedSet . Test UC4123 Cost Center Chair	FAIL	'{'errors': [{'message': 'Dubbele aanvraag', 'extensions': {'category': 'FDM', 'code': 'DUPLICATE_REQUEST', 'showPos': 'NEVER'}}]}' does not contain 'data'	00:00:00.147	20250604 00:40:07.421 20250604 00:40:07.568

Canonical JSON

Onderstaande Python script werd gebruikt om te valideren indien het Enriched object Canonical JSON is:

from canonicaljson import encode_canonical_json

obj = {
      "enrichedEventData": {
         "bookingDate": "2024-07-30",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bufferCapacityUsed": 1.9,
         "deviceId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c",
         "employeeId": "75061189702",
         "estNo": "2000000042",
         "eventCounter": 1,
         "eventLabel": "R",
         "eventOperation": "REPORT_TURNOVER_X",
         "fdmDateTime": "2025-05-26T23:03:50.250Z",
         "fdmDevices": [
            {
               "fdmId": "FOD01000001",
               "firstFdmDateTime": "2023-12-31T23:00:00Z",
               "firstTotalCounter": 49,
               "lastFdmDateTime": "2023-12-31T23:00:00Z",
               "lastTotalCounter": 50
            }
         ],
         "fdmId": "CBX01000019",
         "fdmSwVersion": "0.1.5-rc.2",
         "language": "NL",
         "posDateTime": "2025-05-26T23:03:50Z",
         "posDevices": [
            {
               "firstPosDateTime": "2023-12-31T23:00:00Z",
               "lastPosDateTime": "2023-12-31T23:00:00Z",
               "posId": "CPOS0031234567",
               "terminalId": "b54a614f-39cc-4a7b-bd9f-aa6b693d769c"
            }
         ],
         "posFiscalTicketNo": 1017,
         "posId": "CPOS0031234567",
         "posSwVersion": "1.8.3",
         "terminalId": "TER-1-BAR",
         "ticketMedium": "NONE",
         "totalCounter": 20,
         "turnover": {
            "departments": [],
            "drawersOpenCount": 0,
            "invoices": [],
            "negQuantities": [],
            "payments": [],
            "priceChanges": [],
            "transactions": [],
            "vats": []
         },
         "vatNo": "BE0000000097"
      },
      "digitalSignature": "YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==",
      "shortSignature": "",
      "fdmLocalisation": {}
}

# Returns a `bytes` object containing the UTF-8–encoded canonical JSON.
canon_bytes = encode_canonical_json(obj)
print(canon_bytes.decode("utf-8"))

Het resultaat is

{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":1.9,"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","employeeId":"75061189702","estNo":"2000000042","eventCounter":1,"eventLabel":"R","eventOperation":"REPORT_TURNOVER_X","fdmDateTime":"2025-05-26T23:03:50.250Z","fdmDevices":[{"fdmId":"FOD01000001","firstFdmDateTime":"2023-12-31T23:00:00Z","firstTotalCounter":49,"lastFdmDateTime":"2023-12-31T23:00:00Z","lastTotalCounter":50}],"fdmId":"CBX01000019","fdmSwVersion":"0.1.5-rc.2","language":"NL","posDateTime":"2025-05-26T23:03:50Z","posDevices":[{"firstPosDateTime":"2023-12-31T23:00:00Z","lastPosDateTime":"2023-12-31T23:00:00Z","posId":"CPOS0031234567","terminalId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c"}],"posFiscalTicketNo":1017,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","ticketMedium":"NONE","totalCounter":20,"turnover":{"departments":[],"drawersOpenCount":0,"invoices":[],"negQuantities":[],"payments":[],"priceChanges":[],"transactions":[],"vats":[]},"vatNo":"BE0000000097"}

Het enriched object geëxtraheerd van de Checkbox:

{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":1.9,"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","employeeId":"75061189702","estNo":"2000000042","eventCounter":1,"eventLabel":"R","eventOperation":"REPORT_TURNOVER_X","fdmDateTime":"2025-05-26T23:03:50.250Z","fdmDevices":[{"fdmId":"FOD01000001","firstFdmDateTime":"2023-12-31T23:00:00Z","firstTotalCounter":49,"lastFdmDateTime":"2023-12-31T23:00:00Z","lastTotalCounter":50}],"fdmId":"CBX01000019","fdmSwVersion":"0.1.5-rc.2","language":"NL","posDateTime":"2025-05-26T23:03:50Z","posDevices":[{"firstPosDateTime":"2023-12-31T23:00:00Z","lastPosDateTime":"2023-12-31T23:00:00Z","posId":"CPOS0031234567","terminalId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c"}],"posFiscalTicketNo":1017,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","ticketMedium":"NONE","totalCounter":20,"turnover":{"departments":[],"drawersOpenCount":0,"invoices":[],"negQuantities":[],"payments":[],"priceChanges":[],"transactions":[],"vats":[]},"vatNo":"BE0000000097"}

Deze zijn identiek.

Dit wordt als volgt opgeslaan in de event buffer:

{"keyHash":"c75ca17fcdaea092f9517d0617e86dcc", "dataInHash":"b7a3eb1563fdd926c8343c5a9272443d", "eventOperation":11, "requestTime":"2025-05-26T23:03:50.250Z", "requestData":{"query":"mutation SignReportTurnoverX($data: ReportTurnoverXInput!, $training: Boolean! = false) { signReportTurnoverX(data: $data, isTraining: $training) { __typename bufferCapacityUsed deviceId digitalSignature eventOperation fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } fdmSwVersion posDateTime posFiscalTicketNo posId shortSignature terminalId vatCalc { __typename label outOfScope rate taxableAmount totalAmount vatAmount } verificationUrl warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }","operationName":"SignReportTurnoverX","variables":{"data":{"posDevices":[{"posId":"CPOS0031234567","terminalId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","firstPosDateTime":"2023-12-31T23:00:00Z","lastPosDateTime":"2023-12-31T23:00:00Z"}],"fdmDevices":[{"fdmId":"FOD01000001","firstFdmDateTime":"2023-12-31T23:00:00Z","firstTotalCounter":49,"lastFdmDateTime":"2023-12-31T23:00:00Z","lastTotalCounter":50}],"turnover":{"transactions":[],"departments":[],"vats":[],"payments":[],"drawersOpenCount":0,"negQuantities":[],"priceChanges":[],"invoices":[]},"language":"NL","vatNo":"BE0000000097","estNo":"2000000042","posId":"CPOS0031234567","posFiscalTicketNo":1017,"posDateTime":"2025-05-26T23:03:50Z","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bookingDate":"2024-07-30","ticketMedium":"NONE","employeeId":"75061189702"},"training":false}}, "resultTime":"2025-05-26T23:03:50.274Z", "resultData":{"data":{"signReportTurnoverX":{"__typename":"SignResult","bufferCapacityUsed":1.9,"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","digitalSignature":"YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==","eventOperation":"REPORT_TURNOVER_X","fdmRef":{"__typename":"FdmReference","fdmId":"CBX01000019","fdmDateTime":"2025-05-26T23:03:50.250Z","eventLabel":"R","eventCounter":1,"totalCounter":20},"fdmSwVersion":"0.1.5-rc.2","posDateTime":"2025-05-26T23:03:50Z","posFiscalTicketNo":1017,"posId":"CPOS0031234567","shortSignature":null,"terminalId":"TER-1-BAR","vatCalc":null,"verificationUrl":null,"warnings":null,"informations":null,"footer":[]}}}, "rawEnriched":{"enrichedEventData":{"bookingDate":"2024-07-30","bookingPeriodId":"dffcd829-a0e5-41ca-a0ae-9eb887f95637","bufferCapacityUsed":1.9,"deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","employeeId":"75061189702","estNo":"2000000042","eventCounter":1,"eventLabel":"R","eventOperation":"REPORT_TURNOVER_X","fdmDateTime":"2025-05-26T23:03:50.250Z","fdmDevices":[{"fdmId":"FOD01000001","firstFdmDateTime":"2023-12-31T23:00:00Z","firstTotalCounter":49,"lastFdmDateTime":"2023-12-31T23:00:00Z","lastTotalCounter":50}],"fdmId":"CBX01000019","fdmSwVersion":"0.1.5-rc.2","language":"NL","posDateTime":"2025-05-26T23:03:50Z","posDevices":[{"firstPosDateTime":"2023-12-31T23:00:00Z","lastPosDateTime":"2023-12-31T23:00:00Z","posId":"CPOS0031234567","terminalId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c"}],"posFiscalTicketNo":1017,"posId":"CPOS0031234567","posSwVersion":"1.8.3","terminalId":"TER-1-BAR","ticketMedium":"NONE","totalCounter":20,"turnover":{"departments":[],"drawersOpenCount":0,"invoices":[],"negQuantities":[],"payments":[],"priceChanges":[],"transactions":[],"vats":[]},"vatNo":"BE0000000097"},"digitalSignature":"YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==","shortSignature":"","fdmLocalisation":{}}, "rawSignResult":{"posId":"CPOS0031234567","posFiscalTicketNo":1017,"posDateTime":"2025-05-26T23:03:50Z","terminalId":"TER-1-BAR","deviceId":"b54a614f-39cc-4a7b-bd9f-aa6b693d769c","eventOperation":"REPORT_TURNOVER_X","fdmRef":{"fdmId":"CBX01000019","fdmDateTime":"2025-05-26T23:03:50.250Z","eventLabel":"R","eventCounter":1,"totalCounter":20},"fdmSwVersion":"0.1.5-rc.2","digitalSignature":"YWJjZGVmMTIzNDU2Nzg5MGZha2VoYXNoMDk4NzY1NDMyMWZlZGNiYQ==","bufferCapacityUsed":1.8999999761581421}}

Dit toont aan dat events in canonical JSON formaat worden opgeslaan.

Handtekeningen

Om aan te tonen dat de handtekeningen correct teruggeven worden aan de POS werd het volgende events uitgevoerd:

signSale:

{
   "query": "mutation SignSale($data: SaleInput!, $training: Boolean! = false) { signSale(data: $data, isTraining: $training) { __typename bufferCapacityUsed deviceId digitalSignature eventOperation fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } fdmSwVersion posDateTime posFiscalTicketNo posId shortSignature terminalId vatCalc { __typename label outOfScope rate taxableAmount totalAmount vatAmount } verificationUrl warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignSale",
   "variables": {
      "data": {
         "fdmRef": null,
         "costCenter": null,
         "transaction": {
            "transactionLines": [
               {
                  "lineType": "SINGLE_PRODUCT",
                  "mainProduct": {
                     "gtin": null,
                     "productId": "10006",
                     "productName": "Dry Martini",
                     "departmentId": "10",
                     "departmentName": "Aperitifs",
                     "quantity": 2,
                     "quantityType": "PIECE",
                     "negQuantityReason": null,
                     "unitPrice": 12,
                     "vats": [
                        {
                           "label": "A",
                           "price": 24,
                           "priceChanges": []
                        }
                     ]
                  },
                  "subProducts": [],
                  "costCenter": null,
                  "lineTotal": 24
               },
               {
                  "lineType": "SINGLE_PRODUCT",
                  "mainProduct": {
                     "gtin": null,
                     "productId": "22001",
                     "productName": "Burger of the Chef",
                     "departmentId": "22",
                     "departmentName": "Main Dishes",
                     "quantity": 1,
                     "quantityType": "PIECE",
                     "negQuantityReason": null,
                     "unitPrice": 28,
                     "vats": [
                        {
                           "label": "B",
                           "price": 28,
                           "priceChanges": []
                        }
                     ]
                  },
                  "subProducts": [],
                  "costCenter": null,
                  "lineTotal": 28
               }
            ],
            "transactionTotal": 52
         },
         "financials": [
            {
               "id": "1",
               "name": "CONTANT",
               "type": "CASH",
               "provider": null,
               "inputMethod": "MANUAL",
               "amount": 52,
               "amountType": "PAYMENT",
               "foreignCurrency": null,
               "reference": null,
               "drawer": null
            }
         ],
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1000,
         "posDateTime": "2025-06-02T21:56:16+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "TER-2-DIN",
         "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-03",
         "ticketMedium": "PAPER",
         "employeeId": "84022899837"
      },
      "training": false
   }
}

Het sign result is:

{
   "data": {
      "signSale": {
         "__typename": "SignResult",
         "bufferCapacityUsed": 40,
         "deviceId": "1631678d-7a85-4ac3-b296-bb4565e873fe",
         "digitalSignature": "MEUCIHvD2BlJwdAhwu63LS2ZjXdZ7IFqG3HMfAy3fvmIWzvHAiEAn+xPbYmD5099P7OO6z9NOolX3pto8Mk9MiED963XaqA=",
         "eventOperation": "SALE",
         "fdmRef": {
            "__typename": "FdmReference",
            "fdmId": "CBX01000001",
            "fdmDateTime": "2025-06-02T22:02:45.992Z",
            "eventLabel": "N",
            "eventCounter": 25313,
            "totalCounter": 122417
         },
         "fdmSwVersion": "0.1.4+feat",
         "posDateTime": "2025-06-02T22:02:45+00:00",
         "posFiscalTicketNo": 1000,
         "posId": "CPOS0031234567",
         "shortSignature": "33c9ce5e66724ba7625fea8fe9dbd2273b860363",
         "terminalId": "TER-2-DIN",
         "vatCalc": [
            {
               "__typename": "VatCalcItem",
               "label": "A",
               "outOfScope": false,
               "rate": 21,
               "taxableAmount": 19.83,
               "totalAmount": 24,
               "vatAmount": 4.17
            },
            {
               "__typename": "VatCalcItem",
               "label": "B",
               "outOfScope": false,
               "rate": 12,
               "taxableAmount": 25,
               "totalAmount": 28,
               "vatAmount": 3
            }
         ],
         "verificationUrl": "https://www.gks2-0.be/qr5LKD9fbCJMsASYDaM",
         "warnings": null,
         "informations": null,
         "footer": [
            "FPS FIN Footer 1",
            "ParamsVerion: 2025-04-07T09:33:03Z"
         ]
      }
   }
}

Digitalsignature, shortsignature en verificationUrl werden op correcte wijze teruggeven aan de POS

Work in:

request:

{
   "query": "mutation SignWorkIn($data: WorkInOutInput!, $training: Boolean! = false) { signWorkIn(data: $data, isTraining: $training) { __typename posId posFiscalTicketNo posDateTime terminalId deviceId fdmSwVersion eventOperation digitalSignature bufferCapacityUsed fdmRef { __typename fdmId fdmDateTime eventLabel eventCounter totalCounter } warnings { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } informations { __typename message locations { __typename line column } extensions { __typename category code showPos data { __typename name value } } } footer } }",
   "operationName": "SignWorkIn",
   "variables": {
      "data": {
         "language": "NL",
         "vatNo": "BE0000000097",
         "estNo": "2000000042",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-02T22:00:41+00:00",
         "posSwVersion": "1.8.3",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "bookingPeriodId": "dffcd829-a0e5-41ca-a0ae-9eb887f95637",
         "bookingDate": "2024-10-04",
         "ticketMedium": "NONE",
         "employeeId": "80113078968"
      },
      "training": false
   }
}

response:

{
   "data": {
      "signWorkIn": {
         "__typename": "SignResult",
         "posId": "CPOS0031234567",
         "posFiscalTicketNo": 1010,
         "posDateTime": "2025-06-02T22:04:28+00:00",
         "terminalId": "POS-2-REC",
         "deviceId": "80:1A:A6:75:66:FC",
         "fdmSwVersion": "0.1.4+feat",
         "eventOperation": "WORK_IN",
         "digitalSignature": "MEUCIHzydlU9FZ5urEEqT/KNR8hnbFUR8JqYri4Td2Rp1rEgAiEAtdfvLEuuj1YmaNnOugji5GehY2U1nzo8KywyU4dwpdo=",
         "bufferCapacityUsed": 60,
         "fdmRef": {
            "__typename": "FdmReference",
            "fdmId": "CBX01000001",
            "fdmDateTime": "2025-06-02T22:04:28.372Z",
            "eventLabel": "S",
            "eventCounter": 12043,
            "totalCounter": 122418
         },
         "warnings": null,
         "informations": null,
         "footer": [
            "FPS FIN Footer 1",
            "ParamsVerion: 2025-04-07T09:33:03Z"
         ]
      }
   }
}

Enkel digitalsignature werd gezet

Bufferingscapaciteit

Alle events worden in den FIFO opgeslaan dat maximaal 262144 events kan bevatten, zowel de events als de FIFO buffer worden op een opslagmedium van 4 GB opgeslaan.

De buffercapaciteit gezet door FODFIN-Cloud beperkt het aantal element, de buffer berekening is als volgt:

bufferingscapaciteit = unsentEventCount / maxBuffer

Meer informatie kan gevonden worden in het hoofdstuk FODFIN-Cloud/Ontvangen en verzenden van business transacties.

Negatieve Testen

Taal

Hier gaan we "language" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Verkeerde taal "NT"

{
    "errors": [
        {
            "message": "Field 'language' value is not valid",
            "locations": []
        }
    ]
}

Geen taal (null)

{
    "errors": [
        {
            "message": "Field 'language' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen taal ("")

{
    "errors": [
        {
            "message": "Field 'language' value is not valid",
            "locations": []
        }
    ]
}

Verkeerd type (int, [], {})

{
    "errors": [
        {
            "message": "Field 'language' value is not valid",
            "locations": []
        }
    ]
}

Vat No

Hier gaan we "vatNo" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen Mod97 "BE0000000096"

{
    "errors": [
        {
            "message": "Invalid value for argument field [vatNo: BE0000000096]",
            "locations": []
        }
    ]
}

Ongeldige Lengte "BE000000097"

{
    "errors": [
        {
            "message": "Invalid value for argument field [vatNo: BE000000097]",
            "locations": []
        }
    ]
}

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'vatNo' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [vatNo: ]",
            "locations": []
        }
    ]
}

Verkeerd type (int, [], {})

{
    "errors": [
        {
            "message": "Field 'vatNo' value is not valid",
            "locations": []
        }
    ]
}

Est No

Hier gaan we "estNo" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen Mod97 "2000000041"

{
    "errors": [
        {
            "message": "Invalid value for argument field [estNo: 2000000041]",
            "locations": []
        }
    ]
}

Ongeldige Lengte wel Mod97 "200000043"

{
    "errors": [
        {
            "message": "Invalid value for argument field [estNo: 200000043]",
            "locations": []
        }
    ]
}

Verkeerd type (int, [], {})

{
    "errors": [
        {
            "message": "Field 'estNo' value is not valid",
            "locations": []
        }
    ]
}

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'estNo' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [estNo: ]",
            "locations": []
        }
    ]
}

PosId

Hier gaan we "posId" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Een PosId die niet in de lijst staat of niet geldig is "ABC"

{
    "errors": [
        {
            "message": "Invalid value for argument field [posId: ABC]",
            "locations": []
        }
    ]
}

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'posId' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [posId: ]",
            "locations": []
        }
    ]
}

Verkeerd type (int, [], {})

{
    "errors": [
        {
            "message": "Field 'posId' value is not valid",
            "locations": []
        }
    ]
}

Kleine letters "pbx01000003"

{
    "errors": [
        {
            "message": "Invalid value for argument field [posId: pbx01000003]",
            "locations": []
        }
    ]
}

PosFiscalTicketNo

Hier gaan we "posFiscalTicketNo" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Verkeerd Type ("", [], {})

{
    "errors": [
        {
            "message": "Field 'posFiscalTicketNo' value is not valid",
            "locations": []
        }
    ]
}

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'posFiscalTicketNo' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Waarde buiten range (<1)

{
    "errors": [
        {
            "message": "Invalid value for argument field [posFiscalTicketNo: 0]",
            "locations": []
        }
    ]
}

Waarde buiten range (>999999999)

{
    "errors": [
        {
            "message": "Invalid value for argument field [posFiscalTicketNo: 1000000000]",
            "locations": []
        }
    ]
}

PosSwVersion

Hier gaan we "posSwVersion" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'posSwVersion' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [posSwVersion: ]",
            "locations": []
        }
    ]
}

Waarde langer dan 36 tekens

{
    "errors": [
        {
            "message": "Invalid value for argument field [posSwVersion: 1234567890123456789012345678901234567]",
            "locations": []
        }
    ]
}

DeviceId

Hier gaan we "deviceId" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'deviceId' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [deviceId: ]",
            "locations": []
        }
    ]
}

Waarde te lang > 600 tekens

{
    "errors": [
        {
            "message": "Invalid value for argument field [deviceId: 1234567890123456789012345678901234567890123456789012345678901234...]",
            "locations": []
        }
    ]
}

TerminalId

Hier gaan we "terminalId" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'terminalId' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Invalid value for argument field [terminalId: ]",
            "locations": []
        }
    ]
}

Waarde te lang > 600 tekens

{
    "errors": [
        {
            "message": "Invalid value for argument field [terminalId: 1234567890123456789012345678901234567890123456789012345678901234...]",
            "locations": []
        }
    ]
}

bookingPeriodId

Hier gaan we "bookingPeriodId" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'bookingPeriodId' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen Guid formaat

{
    "errors": [
        {
            "message": "Invalid value for argument field [bookingPeriodId: defcd82-a0e5-41ca-a0ae-9eb887f95637]",
            "locations": []
        }
    ]
}

Guid met hoofdletters

{
    "errors": [
        {
            "message": "Invalid value for argument field [bookingPeriodId: E573e6f1-e167-4b1b-b432-230871cdaa42]",
            "locations": []
        }
    ]
}

bookingDate

Hier gaan we "bookingDate" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'bookingDate' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen datum ISO8601

{
    "errors": [
        {
            "message": "Invalid value for argument field [bookingDate: ABCD]",
            "locations": []
        }
    ]
}

employeeId

Hier gaan we "employeeId" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'employeeId' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen Mod97 "00000000096"

{
    "errors": [
        {
            "message": "Invalid value for argument field [employeeId: 00000000096]",
            "locations": []
        }
    ]
}

Geen 11 karakters "0000000097"

{
    "errors": [
        {
            "message": "Invalid value for argument field [employeeId: 0000000097]",
            "locations": []
        }
    ]
}

InvoiceNo

Hier gaan we "invoiceNo" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'invoiceNo' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Ongeldige lengte (<1)

{
    "errors": [
        {
            "message": "Invalid value for argument field [invoiceNo: ]",
            "locations": []
        }
    ]
}

Ongeldige lengte (>600)

{
    "errors": [
        {
            "message": "Invalid value for argument field [invoiceNo: 1234567890123456789012345678901234567890123456789012345678901234...]",
            "locations": []
        }
    ]
}

ticketMedium

Hier gaan we "ticketMedium" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'ticketMedium' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Field 'ticketMedium' value is not valid",
            "locations": []
        }
    ]
}

Ongeldige waarde ("papier")

{
    "errors": [
        {
            "message": "Field 'ticketMedium' value is not valid",
            "locations": []
        }
    ]
}

Costcenter

Hier gaan we "Costcenter" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Id

Geen Id (null)

{
    "errors": [
        {
            "message": "Field 'id' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Lengte < 0 en > 600

{
    "errors": [
        {
            "message": "Invalid value for argument field [id: 1234567890123456789012345678901234567890123456789012345678901234...]",
            "locations": []
        }
    ]
}

Type

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'type' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen waarde ("")

{
    "errors": [
        {
            "message": "Field 'type' value is not valid",
            "locations": []
        }
    ]
}

Ongeldige waarde

{
    "errors": [
        {
            "message": "Field 'type' value is not valid",
            "locations": []
        }
    ]
}

Reference

Geen waarde (null)

{
    "errors": [
        {
            "message": "Operation 'data' argument value is missing",
            "locations": []
        }
    ]
}

Ongeldige lengte <0 en >600

{
    "errors": [
        {
            "message": "Invalid value for argument field [reference: 1234567890123456789012345678901234567890123456789012345678901234...]",
            "locations": []
        }
    ]
}

Ongeldige diepte (meer dan 2 niveaus)

{
    "errors": [
        {
            "message": "Invalid value for argument field [costCenter:<invalid type>]",
            "locations": []
        }
    ]
}

PosDateTime

Hier gaan we "posDateTime" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen waarde (null)

{
    "errors": [
        {
            "message": "Field 'posDateTime' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen ISO8601 formaat

{
    "errors": [
        {
            "message": "Invalid value for argument field [posDateTime: 2026-33-32]",
            "locations": []
        }
    ]
}

TODO Transaction

Hier gaan we "transaction" aan verkeerd, en vooral ongeldige data onderwerpen, en zo zien dat de Checkbox dit afhandelt zoals verwacht.

Geen object bij een type Sale

{
    "errors": [
        {
            "message": "Field 'transaction' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen object bij een type PreBill

{
    "errors": [
        {
            "message": "Field 'transaction' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen object bij een type Order

{
    "errors": [
        {
            "message": "Field 'transaction' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Geen object bij een type Cost_Center_Change

{
    "errors": [
        {
            "message": "Field 'transaction' is non-nullable and has no value",
            "locations": []
        }
    ]
}

Wel object bij WorkIn

TODO

Wel object bij WorkOut

TODO

Wel object bij Invoice

TODO

Wel object bij MoneyInOut

TODO

Wel object bij DrawerOpen

TODO

Wel object bij PaymentCorrection

TODO

Wel object bij ReportTurnoverX

TODO

Wel object bij ReportTurnoverZ

TODO

Wel object bij ReportUserX

TODO

Wel object bij ReportUserZ

TODO

Wel object bij Copy

TODO

Bijlagen

Bijlage A: EC Declaration of Conformity
